Quick Details
-
Power:
-
4.5kw
-
Table Size:
-
2.27*1.12m
-
Overall Dimensions:
-
2.47*1.39*2.53m
-
Weight:
-
2840 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Self propelled scissor lift
-
Application:
-
Aerial Work lift platform
-
Material:
-
High Strength Manganese Steel
-
Keywords:
-
Scissor lift
-
Advantages:
-
Highly automatic agile movement
-
Platform:
-
Anti skid
-
Custom made:
-
Available
-
Table extended:
-
0.9m
-
Grade ability:
-
25%
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yuntian
-
Power:
-
4.5kw
-
Table Size:
-
2.27*1.12m
-
Overall Dimensions:
-
2.47*1.39*2.53m
-
Weight:
-
2840 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Self propelled scissor lift
-
Application:
-
Aerial Work lift platform
-
Material:
-
High Strength Manganese Steel
-
Keywords:
-
Scissor lift
-
Advantages:
-
Highly automatic agile movement
-
Platform:
-
Anti skid
-
Custom made:
-
Available
-
Table extended:
-
0.9m
-
Grade ability:
-
25%
4-12m Hydraulic crawler work platform industrial battery operate man scissor lift
Products Description

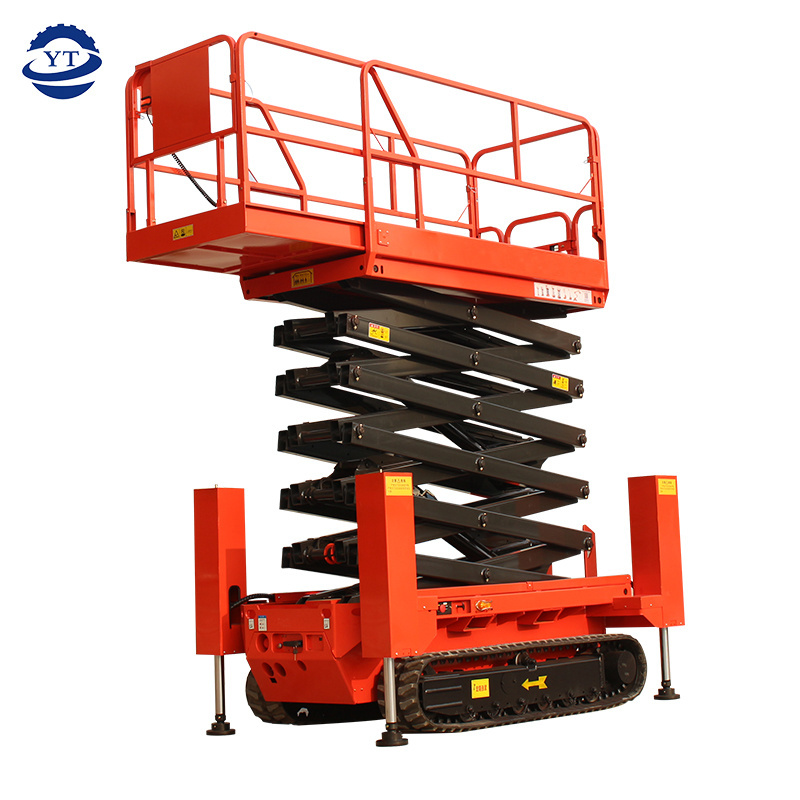

Crawler Scissor Lift with Outrigger
(1)Intelligent
Internet:
Intelligent human-computer interaction system, easy to obtain equipment status (location, working condition information, abnormal warning, etc.), intelligent interconnection, automatic display of fault codes, and effective operation management.
(2)Run efficiently:
Great battery life.
Breaking the traditional operating mode of crawler equipment, it uses a single handle to control steering and walking, which can achieve in-situ steering, good maneuverability and simpler operation.
(3)Reliable performance:
Matching overload sensor, high safety factor.
Lift proportional valve control is precise and flexible, greatly improving the smoothness of the action.
The scissor arms are made of Q500D material, which has high strength, low weight, safety and reliability.
(4)Strong off-road capability:
Driven by a high-power AC motor, it has strong power, high efficiency and long endurance.
Hydraulic outriggers, one-click leveling, convenient and reliable, suitable for road operations such as mud, sand, Gobi gravel, etc.
(5)low maintenance cost:
Integrated drawer-type tray for easy maintenance.
Self-lubricating composite fiber bushing, maintenance-free.
The same series adopts universal and modular design. The universal rate of scissor forklifts is more than 80%, and the parts of the same type of equipment are common.
Specification
|
Model
|
Platform Height(m)
|
Working Height(m)
|
Platform Size(m)
|
Load
(kg) |
Overall Dimension
(l*w*h) |
Lifting Motor
(V/kw) |
Weight
(kg) |
|
GTJZ0615LDS
|
6
|
8
|
2.27*1.12
|
450
|
2.782*1.581*1.745
|
48/4
|
2800
|
|
GTJZ0710LDS
|
6.7
|
9
|
1.859*0.81
|
230
|
2.4*1.01*1.83
|
24/2.2
|
1940
|
|
GTJZ0815LDS
|
8
|
10
|
2.27*1.11
|
450
|
2.767*1.5*1.9
|
48/4
|
3014
|
|
GTJZ1015LDS
|
9.75
|
12
|
2.27*1.11
|
320
|
2.767*1.5*2.025
|
48/4
|
3300
|
|
GTJZ1215LDS
|
11.75
|
14
|
2.27*1.11
|
320
|
2.767*1.5*2.18
|
48/4
|
3480
|
|
GTJZ1415LDS
|
13.75
|
16
|
2.64*1.11
|
230
|
2.977*1.5*2.285
|
48/5
|
4880
|
Details Images
Tracked Scissor Lift Advantage
1.Safety brackets
Q345 Rectangular tube made of manganese steel with high strength and strong structure
2.Industrial track
Industrial crawler, good air tightness, high elasticity, tear resistance, cols resistance and wear resistance
3.Extensible working platform
Retractable table, increase the scope of work
4.Hydraulic power system
Precision grinding of the hydraulic cylinder, imported seals, built-in explosion-poor valve, durable and non-leakage
5.Easy Maintenance
Imported battery, durable use, placed in front of the body, more convenient maintenance.
6.Platform control
DTC control system, more sensitive
Q345 Rectangular tube made of manganese steel with high strength and strong structure
2.Industrial track
Industrial crawler, good air tightness, high elasticity, tear resistance, cols resistance and wear resistance
3.Extensible working platform
Retractable table, increase the scope of work
4.Hydraulic power system
Precision grinding of the hydraulic cylinder, imported seals, built-in explosion-poor valve, durable and non-leakage
5.Easy Maintenance
Imported battery, durable use, placed in front of the body, more convenient maintenance.
6.Platform control
DTC control system, more sensitive
Certification
Related Products
Packing & Delivery
1. Delivery time
Within 7- 15 working days after we receive the deposit
2. Payment terms
T/T, L/C
3. MOQ
Generally speaking, the MOQ is 1 set, may vary for different products, please contact with us.
4. Custom-made
Load, platform size, lifting height can be custom-made.
5.Package:
LCL Plywood case, 20'GP load 2sets,40'GP load 4sets
Within 7- 15 working days after we receive the deposit
2. Payment terms
T/T, L/C
3. MOQ
Generally speaking, the MOQ is 1 set, may vary for different products, please contact with us.
4. Custom-made
Load, platform size, lifting height can be custom-made.
5.Package:
LCL Plywood case, 20'GP load 2sets,40'GP load 4sets
