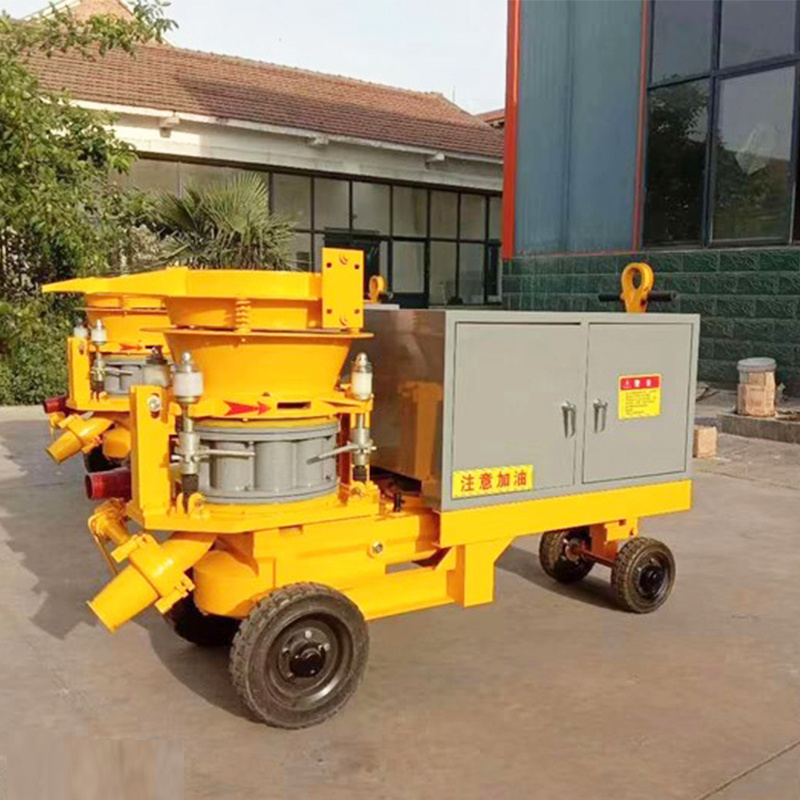

1.CN-PZ series shotcrete machine can be used to spray dry and half wet concrete.
2.Advanced technology, rational structure, stable performance and long service life.
3.CN-PZ series shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
- Product Details
- {{item.text}}
Quick Details
-
Air Consumption:
-
9m3/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Voltage:
-
0
-
Power:
-
5.6kw
-
Dimension(L*W*H):
-
2100 * 2800 * 3400mm
-
Weight:
-
380 kg, 16000kg
-
Name:
-
Dry Shotcrete Machine
-
Origin:
-
Shandong Province
-
Main Power:
-
5.6kw
-
Brand:
-
CNMC
-
Color:
-
Customized
-
Keywords:
-
mortar shotcrete machine
-
Model:
-
PZ-3
-
Application:
-
Construction Projects
Quick Details
-
Max. Conveying Distance:
-
220m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
50 mm
-
Air Consumption:
-
9m3/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Voltage:
-
0
-
Power:
-
5.6kw
-
Dimension(L*W*H):
-
2100 * 2800 * 3400mm
-
Weight:
-
380 kg, 16000kg
-
Name:
-
Dry Shotcrete Machine
-
Origin:
-
Shandong Province
-
Main Power:
-
5.6kw
-
Brand:
-
CNMC
-
Color:
-
Customized
-
Keywords:
-
mortar shotcrete machine
-
Model:
-
PZ-3
-
Application:
-
Construction Projects
Product Description
Shotcrete Machine
|
Model
|
PZ-3
|
PZ-5
|
PZ-9
|
|
Output
|
2~3 m3/h
|
4.5~5.5 m3/h
|
7~9 m3/h
|
|
Max.conveying dist.
|
200 m
|
200 m
|
200 m
|
|
Water cement ratio
|
< 0.4
|
< 0.4
|
< 0.4
|
|
Max.aggregate size
|
15 mm
|
20 mm
|
20 mm
|
|
Hose inner diameter
|
φ42/51 mm
|
φ51 mm
|
φ57 mm
|
|
Operating air pressure
|
0.2-0.6 Mpa
|
0.2-0.6 Mpa
|
0.2-0.6 Mpa
|
|
Air consumption
|
5-6 m3/min
|
7-8 m3/min
|
9-10 m3/min
|
|
Motor power
|
3 KW
|
7.5 KW
|
7.5 KW
|
|
Dimensions
|
1400×780×1020mm
|
1520×820×1280mm
|
1520×820×1350mm
|
|
Weight
|
350kg
|
600kg
|
850kg
|
Price And Quanlity
We are direct manufacturer of kinds of construction machinery,so the factory price will be good performance than other trading companies .
We are big group ,have many branches of producing ,we confirm the quanlity better than other market products ,because many details and dessign we are modified.
Packing and delivery
Service And Strength
OEM&ODM service,we can modified the style ,package ,logo,color,and so on.
WEwill prepare all documents for clearance and print DHL in 3 days after the shipping date .
We will supply CO/FORM-E for free.
We confrim the producing date not more than 7 days for a container ,and come to Southeast Asian customers in 25-30 days
Our Exhibition
China Machinery (Jining) Industrial Co., Ltd. is located in Asia's largest trailer base---Shandong Liangshan. We are a professional manufacturer of trailers ,trailer spare parts,and other heavy machinery equipments and accessories .
CHNMC owns it,s speiclal design, development, manufacturing as a professional manufacturer.We focus on a series of machines and accessories, a wide range of diversity, reasonable price and on-time delivery.
Our Services
Our Projects
Related Products
Contact Us
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
