Quick Details
-
Usage:
-
Wood Cutting
-
Voltage:
-
220v/380v/custom
-
Dimension(L*W*H):
-
1200x1200x1600mm
-
Application:
-
Woodworking Furniture Factory
-
Weight (KG):
-
1300 KG
-
Power (kW):
-
7.5kw/11kw(optional)
-
Product Name:
-
Automatic cut off saw
-
Working mode:
-
Automatic feeding, automatic cutting
-
Operation mode:
-
Touch screen
-
Pressure mode:
-
Pneumatic pressing
-
Cutting mode:
-
PLC control automatic cutting
-
Cutting length:
-
1/2/4/6m (custom)
-
Cutting height:
-
10-130mm/10-200mm(optional)
-
Cutting width:
-
0-200mm/0-300mm(optional)/0-500mm(optional)
-
Pressure:
-
0.6-0.8Mpa
-
Feeding speed:
-
35m/min
Quick Details
-
Type:
-
Cut Off Saw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINCNC Woodworking Machine
-
Usage:
-
Wood Cutting
-
Voltage:
-
220v/380v/custom
-
Dimension(L*W*H):
-
1200x1200x1600mm
-
Application:
-
Woodworking Furniture Factory
-
Weight (KG):
-
1300 KG
-
Power (kW):
-
7.5kw/11kw(optional)
-
Product Name:
-
Automatic cut off saw
-
Working mode:
-
Automatic feeding, automatic cutting
-
Operation mode:
-
Touch screen
-
Pressure mode:
-
Pneumatic pressing
-
Cutting mode:
-
PLC control automatic cutting
-
Cutting length:
-
1/2/4/6m (custom)
-
Cutting height:
-
10-130mm/10-200mm(optional)
-
Cutting width:
-
0-200mm/0-300mm(optional)/0-500mm(optional)
-
Pressure:
-
0.6-0.8Mpa
-
Feeding speed:
-
35m/min
Products Description
|

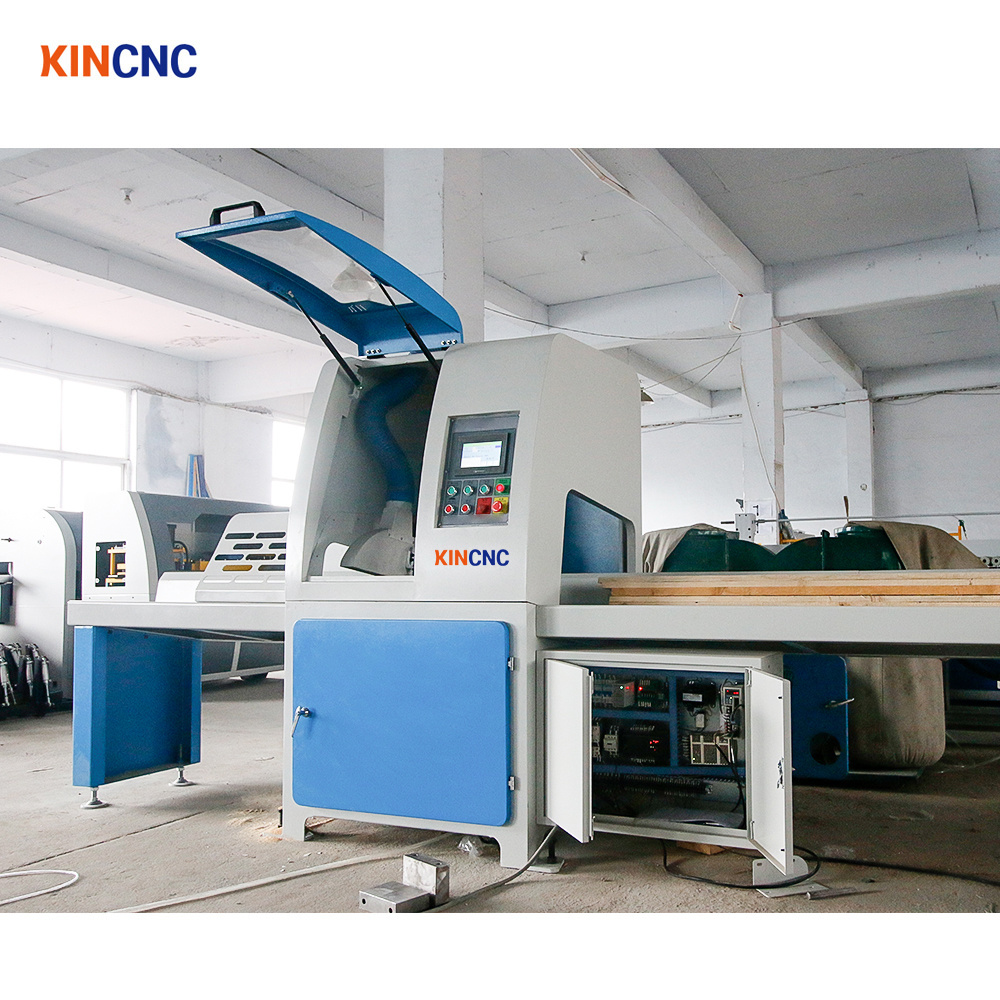

Product Name
|
Automatic cut off saw
|
|
Model
|
KINJ6000
|
|
Working mode
|
Automatic feeding, automatic cutting
|
|
Operation mode
|
Touch screen
|
|
Pressure mode
|
Pneumatic pressing
|
|
Power
|
7.5kw/11kw(optional)
|
|
Cutting mode
|
PLC control automatic cutting
|
|
Cutting length
|
1/2/4/6m (custom)
|
|
Cutting height
|
10-130mm/10-200mm(optional)
|
|
Cutting width
|
0-200mm/0-300mm(optional)/0-500mm(optional)
|
|
Pressure
|
0.6-0.8Mpa
|
|
Feeding speed
|
35m/min
|
|
Saw blade capacity
|
450/550/600mm
|
|
Voltage
|
220v/380v/ custom
|
|
Overall dimensions(main machine)
|
1200x1200x1600mm
|
|
Overall dimensions(working table)
|
6000mm/5000mm-7000mm(custom)
|
|
Weight
|
1300kg
|
Feature:
This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
It contains cutting program, input parameters from the PLC touch screen, have two cutting modes, one is Manual measure mode, measure raw material length by hand then input into machine, and then input max. 8 different cutting length and quantity.
Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
