Quick Details
-
CPU:
-
i.MX 8M Plus (default)
-
Memory:
-
2GB LPDDR4 (4GB/8GB optional)
-
Storage:
-
16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)
-
OS:
-
Android, Yocto, Ubuntu, Win 10 IoT
-
Gigabit Network:
-
1000Mbps RJ45 network port
-
Touch Screen:
-
10.1" 10-point capacitive touch screen (11.6"/15.6"optional)
-
Display Interface:
-
1 x HD-MI
-
Audio Interface:
-
1 x 3.5mm headphone
-
USB:
-
4 x USB 3.0 Host, 2 X USB 2.0 Host
-
COM:
-
2 x RS485/RS232 (RS485 for default), 4 x RS232
Quick Details
-

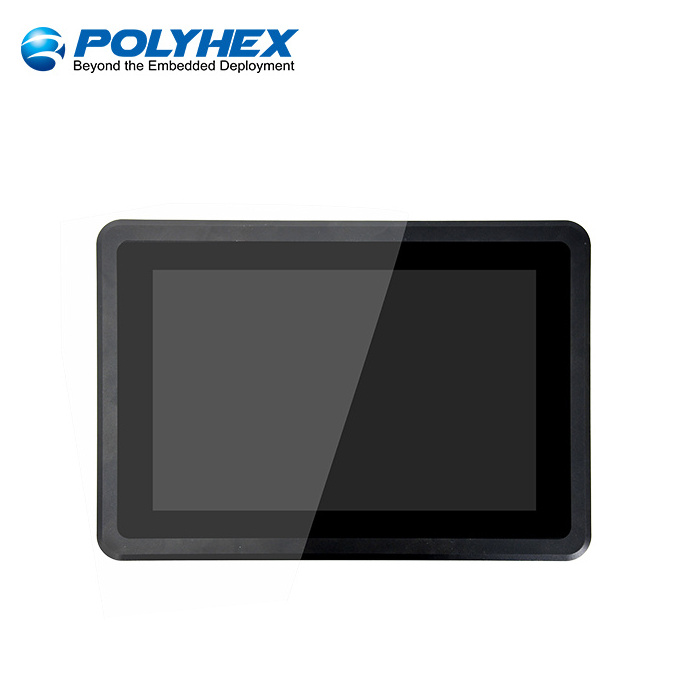

Type:
-
Industrial Panel PC
-
Brand Name:
-
POLYHEX
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
i.MX 8M Plus (default)
-
Memory:
-
2GB LPDDR4 (4GB/8GB optional)
-
Storage:
-
16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)
-
OS:
-
Android, Yocto, Ubuntu, Win 10 IoT
-
Gigabit Network:
-
1000Mbps RJ45 network port
-
Touch Screen:
-
10.1" 10-point capacitive touch screen (11.6"/15.6"optional)
-
Display Interface:
-
1 x HD-MI
-
Audio Interface:
-
1 x 3.5mm headphone
-
USB:
-
4 x USB 3.0 Host, 2 X USB 2.0 Host
-
COM:
-
2 x RS485/RS232 (RS485 for default), 4 x RS232
Products Description
Technical Specification
|
System
|
|
|
|
CPU
|
i.MX 8M Plus (default), 4 x ARM Cortex-A53, comes with an integrated
neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional) |
|
|
Memory
|
2GB LPDDR4 (4GB/8GB optional)
|
|
|
Storage
|
16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)
|
|
|
OS
|
Android, Yocto, Ubuntu, Win 10 IoT Enterprise
Note: 4GB/8GB LPDDR4 supports Win 10 IoT, recommend 8GB version. |
|
|
Video and Audio
|
|
|
|
Touch Screen
|
10.1" 1280 x 800 10-point capacitive touch screen
11.6" 1366 x 768 10-point capacitive touch screen
15.6" 1024 x 768 10-point capacitive touch screen
|
|
|
Display Interface
|
1 x HD-MI
|
|
|
Audio Interface
|
1 x 3.5mm headphone
|
|
|
Front I/O
|
|
|
|
Power Switch
|
1 x Power Switch
|
|
|
Power Input
|
1 x DC IN, supports 5.5mm x 2.1mm plug; 1 x 2Pin 3.81mm Phoenix
|
|
|
Network
|
2 x 10Mbps/100Mbps/1000Mbps RJ45 network port, 2.4GHz & 5GHz Wi-Fi, 4G (optional)
|
|
|
USB
|
4 x USB 3.0 Host Type-A
|
|
|
COM
|
2 x RS485/RS232 (RS485 for default)
|
|
|
Rear I/O
|
|
|
|
COM
|
4 x RS232
|
|
|
USB
|
2 x USB 2.0 Host Type-A
|
|
|
Antenna Connectors
|
1 x WIFI antenna connector, 1 x 4G antenna connector (optional)
|
|
|
Mechanical and Environmental
|
|
|
|
Enclosure
|
Black color, made of aluminum alloy
|
|
|
Size
|
261mm x 136mm x 39mm (Back-end computer module, not include the screen)
|
|
|
Weight
|
2.9kg
|
|
|
Cooling
|
Fanless design, with radiator for heat dissipation
|
|
|
Mounting
|
VESA
|
|
|
Operating Temp.
|
Commercial: 0℃~+70℃
Extended Commercial: -20℃~+70℃ Industrial: -40℃~+85℃ |
|
