Quick Details
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
500scans./sec, 500scan/sec
-
Brand Name:
-
AIXW
-
Place of Origin:
-
Guangdong, China
-
Material:
-
ABS+TPU
-
Connection Mode:
-
Wired&2.4G Wireless&Bluetooths
-
Transmission Distance:
-
Indoor max 50 meters;Outdoor max 100 meters
-
Resolution:
-
4mil
-
Size:
-
90*36*23mm
-
Weight:
-
60g
-
Battery Capacity:
-
1100MAH Li-ion Battery
-
Bluetooths Version:
-
Bluetooths 5.0
-
Mini Scanner Portable:
-
2D QR 1D Code Reader
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4 Size
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
500scans./sec, 500scan/sec
-
Brand Name:
-
AIXW
-
Place of Origin:
-
Guangdong, China
-
Material:
-
ABS+TPU
-
Connection Mode:
-
Wired&2.4G Wireless&Bluetooths
-
Transmission Distance:
-
Indoor max 50 meters;Outdoor max 100 meters
-
Resolution:
-
4mil
-
Size:
-
90*36*23mm
-
Weight:
-
60g
-
Battery Capacity:
-
1100MAH Li-ion Battery
-
Bluetooths Version:
-
Bluetooths 5.0
-
Mini Scanner Portable:
-
2D QR 1D Code Reader

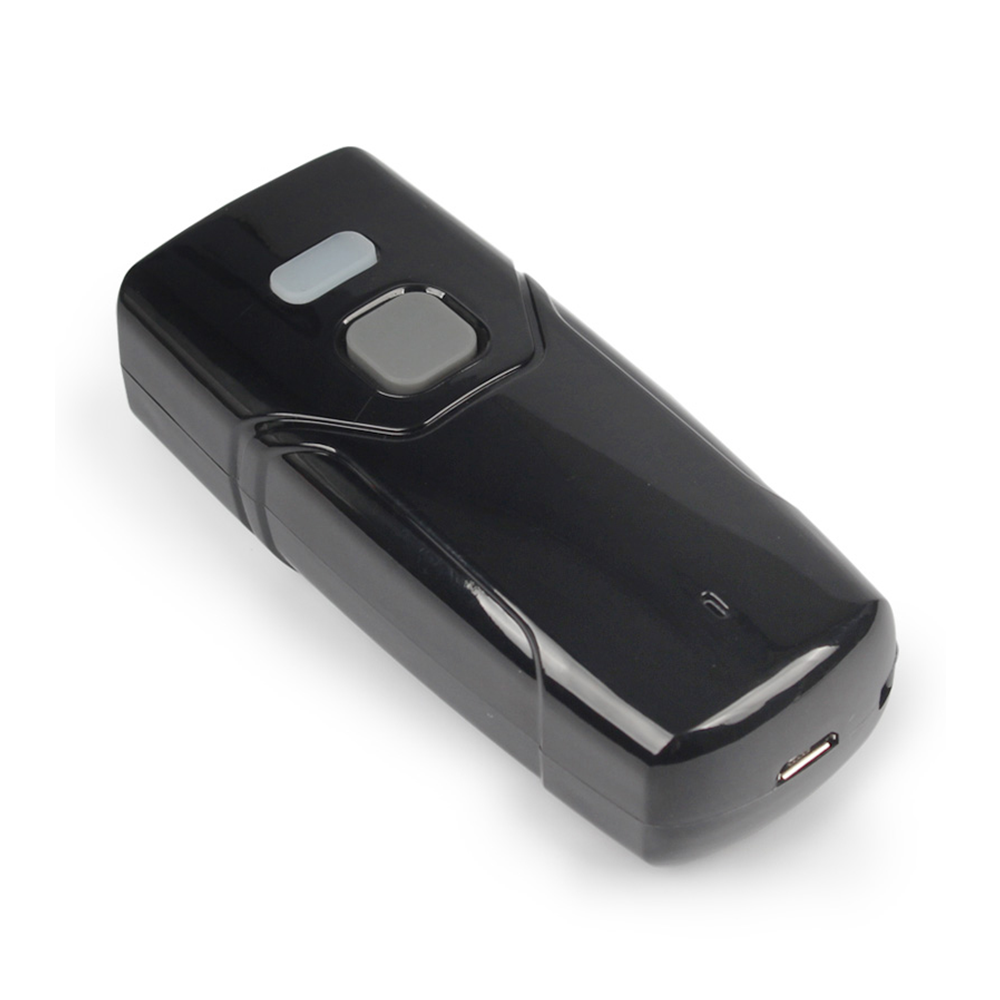

Wireless 2D Barcode Scanner Bluetooths Mini Scanner Portable QR Code Reader Easy to Use Wireless for Warehouse
1.Bluetooths/2.4G/Wired Mode, 3modes for option.
2.Support reading bar codes from screen.
3.32-Bit ARM processor and scan speed 500scans/sec.
4.Powerful decode ability, fast scanning 1D/2D barcodes.
5.Supports Handheld / Continuous / Auto-Induction , 3modes for option
6.Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
7.Built-in 1100mAh Battery, it can support 12 hours Continuous scanning and 1 months standby after 4hours full charge.
8.Support turn on or off the sound, hide/add custom prefix/suffix digits, delete character, add keyboard keys (TAB, CR&LF, etc.)
9.Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
10.Can be customized according to customer demand.
|
Model: AI- 600DB 2 D Mini Bluetooths Barcode Scanner |
||
|
Parameters |
||
|
Material |
ABS+ TPU |
|
|
Connection Mode |
Wired&2.4G Wireless&Bluetooths |
|
|
Transmission Distance |
Indoor max 50 meters;Outdoor max 100 meters |
|
|
Resolution |
4mil |
|
|
Scan Speed |
5 00scan/sec |
|
|
Working Mode |
Button Trigger,Continuous ,Automatic |
|
|
Print Contrast |
≥20% |
|
|
Bit error rate |
1/5millon |
|
|
Size |
90*36*23mm |
|
|
Weight |
60g |
|
|
Barcode Data |
||
|
Barcode Support |
UPC-A, UPC-E,Code128, EAN-13, EAN-8, RSS14, ISBN, Code 93, UCC/EAN-128, GS1 Code39, ITF-14, Code 39FullASCII,Codabar,Interleaved 2 of 5, Databar,MSI,Code11, ISBN,ISSN,China post,etc 2D:QR code,PDF 417,Data Matrix,Aztec,Maxicode etc |
|
|
Scan Width |
5cm-30cm |
|
|
Scan Distance |
2cm- 35 cm |
|
|
Depth Filed |
4mil (Code39) |
60mm-120mm |
|
10mil (Code128) |
25mm-265mm |
|
|
13mil (EAN13) |
40mm-370mm |
|
|
20mil (Code39) |
55mm-420mm |
|
|
Scan Angle |
Rotation Angle |
±30° |
|
Inclination Angle |
±55° |
|
|
Declination Angle |
±60° |
|
|
Working Data |
||
|
Battery Capacity |
1100MAH Li-ion Battery |
|
|
Blue tooth Version |
Blue tooth 5.0 |
|
|
Working Time |
3 to 7 days |
|
|
Working Temperature |
-20℃-50℃ |
|
|
Storage Temperature |
-40℃-60℃ |
|
|
Relative Humidity |
0 ~ 95% |
|
|
Electrical Parameter |
Working Voltage |
5V |
|
Working Current |
86mA |
|
|
Standby Current |
42mA |
|
|
Maximum Current |
130mA |
|
|
Maximum Power |
740mw |
|
|
Interface |
USB/USB-COM |
|
|
Fall Down Test |
2 meters |
|
|
Certificate |
CE FCC RoHS IP54 |
|
