Quick Details
-
Model Number:
-
FL290-4T- 1.5KW
-
Output Frequency:
-
50HZ 60HZ
-
Size:
-
154*100*145MM
-
Weight:
-
1.15KG
-
OEM & ODM:
-
Avaiable
-
Warranty:
-
18 Months
-
Protection:
-
Over Voltage
-
Protections:
-
Short Cuit
-
Output Power:
-
1.50KW
-
Input Voltage:
-
Three phase 380v
-
Output Voltage:
-
Three Phase 380v
-
Application:
-
Water Pump/fan/package/textile and so on
-
Packing Size:
-
173*135*172mm
-
Gross Weight:
-
1.30kg
-
Certificate:
-
CE ISO9001
Quick Details
-
Output Current:
-
7.90A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FULU
-
Model Number:
-
FL290-4T- 1.5KW
-
Output Frequency:
-
50HZ 60HZ
-
Size:
-
154*100*145MM
-
Weight:
-
1.15KG
-
OEM & ODM:
-
Avaiable
-
Warranty:
-
18 Months
-
Protection:
-
Over Voltage
-
Protections:
-
Short Cuit
-
Output Power:
-
1.50KW
-
Input Voltage:
-
Three phase 380v
-
Output Voltage:
-
Three Phase 380v
-
Application:
-
Water Pump/fan/package/textile and so on
-
Packing Size:
-
173*135*172mm
-
Gross Weight:
-
1.30kg
-
Certificate:
-
CE ISO9001

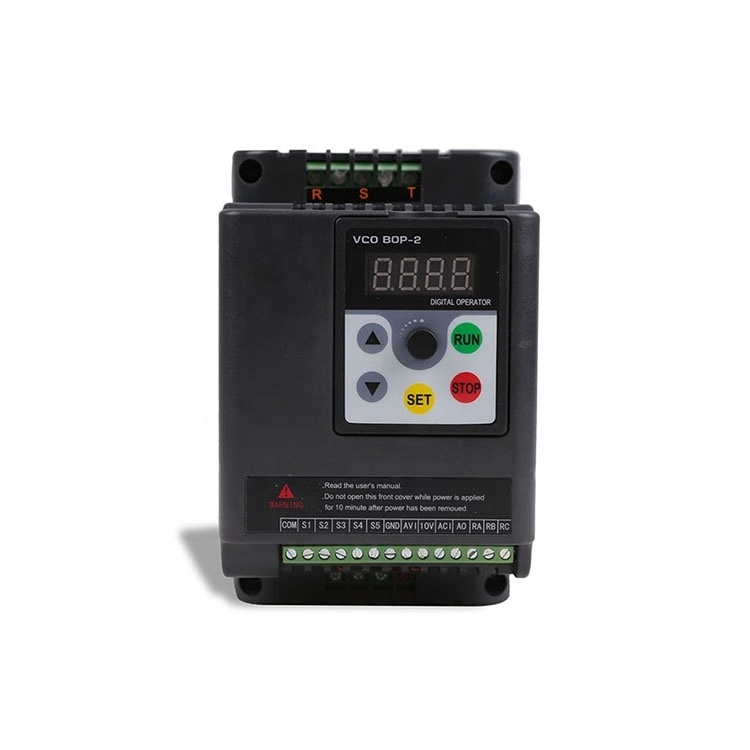

FL350 series inverter is our dedicated research and development of unique compact cost-effective inverter. This inverter only remains the basic functions of frequency converter (such as forward / reverse, inching , three stage speed , analog input / output , digital output ,relay output ). At the same time , it also minimizes the failure rate ( because of the components that are notfunctional also have the possibility of damage) .
Product Features:
1. Compact structure Features concise
2. Excellent performance Stable quality
3.Output voltage stabilization
4. Wide voltage input
5.Support keyboard exportation
6.Double analog input
7.Build-in EMC filter
8.Build-in pid controller
9. Build-in copper
Product Information
| Products Model | PowerAdapter | Input Voltage | Output Voltage | Output Current | Product Size | Weight |
| FL350-2S-0.4KW | 0.4KW |
Single Phase
220V-240V 50HZ-60HZ |
Three Phase
220V-240V 50HZ-60HZ |
2.1A | 154*100*145MM | 1.0KG |
| FL350-2S-0.75KW | 0.75KW | 4A | 154*100*145MM | 1.1KG | ||
| FL350-2S-1.5KW | 1.5KW | 7A | 154*100*145MM | 1.1KG | ||
| FL350-2S-2.2KW | 2.2KW | 9.5A | 154*100*145MM | 1.1KG | ||
| FL350-2S-3.0KW | 3.0KW | 11A | 154*100*145MM | 1.15KG | ||
| FL350-4T-0.75KW | 0.75KW |
Three Phase
380V-440V 50HZ-60HZ |
Three Phase
380V-440V 50HZ-60HZ |
2.5A | 154*100*145MM | 1.1KG |
| FL350-4T-1.5KW | 1.5KW | 4.1A | 154*100*145MM | 1.1KG | ||
| FL350-4T-2.2KW | 2.2KW | 5.8A | 154*100*145MM | 1.15KG | ||
| FL350-4T-3.0KW | 3.0KW | 7.9A | 154*100*145MM | 1.2KG | ||
| FL350-4T-4.0KW | 4.0KW | 9.4A | 218*124*175MM | 2.3KG | ||
| FL350-4T-5.5KW | 5.5KW | 12.6A | 218*124*175MM | 2.35KG | ||
| FL350-4T-7.5KW | 7.5KW | 16.1A | 218*124*175MM | 2.35KG |
