Quick Details
-
Brand Name:
-
AHS
-
Model Number:
-
QS-WIFI-S04-2C
-
Mechanical Life:
-
5 years
-
Operation temp:
-
-10C-+40C
-
IP rating:
-
IP20
-
Max.load:
-
2300W/250W for LED
-
Operation frequency:
-
2.4GHz - 2.4835GHz WIFI
-
Case temp.Tc:
-
+80C (Max.)
-
Warranty:
-
3years
-
Certificate:
-
CE RoHS
-
Type:
-
Smart WIFI Switch
-
Work with:
-
Amazon Alexa, Google Home, Echo Dot, IFTTT
-
Connect by:
-
WIFI Bluetooth RF
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
AHS
-
Model Number:
-
QS-WIFI-S04-2C
-
Mechanical Life:
-
5 years
-
Operation temp:
-
-10C-+40C
-
IP rating:
-
IP20
-
Max.load:
-
2300W/250W for LED
-
Operation frequency:
-
2.4GHz - 2.4835GHz WIFI
-
Case temp.Tc:
-
+80C (Max.)
-
Warranty:
-
3years
-
Certificate:
-
CE RoHS
-
Type:
-
Smart WIFI Switch
-
Work with:
-
Amazon Alexa, Google Home, Echo Dot, IFTTT
-
Connect by:
-
WIFI Bluetooth RF
Product details
| Max.load | 2300W/250W for LED |
| Operation frequency | 2.4GHz - 2.4835GHz WIFI |
| Operation temp | -10C-+40C |
| Case temp.Tc | +80C (Max.) |
| Operation range | ≤200m |

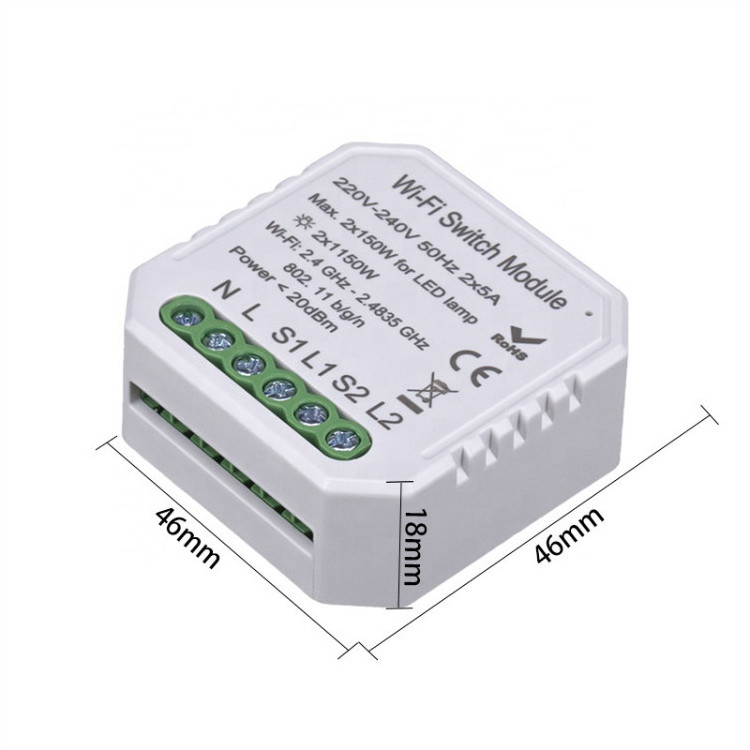

| Dims(WxDxH) | 46*46*18mm |
| IP rating | IP20 |
| Warranty | 3years |
It's a small switch module which is installed into the switch box to make the traditional switch become smart, and can be controlled by mobile phone and voice control.
Main features
1.Easy to be installed into the switch box with small size 46x46x18mm. Existing switch plate are compatible with our switch module
2.Keep the function of manual switch, When WiFI is off, you can also control electrical appliance by manual switch
3. No HUB required, also work with LAN (local area network) when wifi is off
4.Share it to the family members with sharing function.
5. Two way switch,2 switches control 1 lamp.
6.Hand free voice control compatible with Amazon Alex and Google home.
7. Timer, countdown function, scene and group setting function.
8.With mounting bracket for easy installation.
8. Two gang switch module QS-WIFI-S04-2C is available
9. CE RoHS certificated by Intertek, 3 years warranty
