Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QXL
-
Model Number:
-
Ultrasonic Level Transmitter

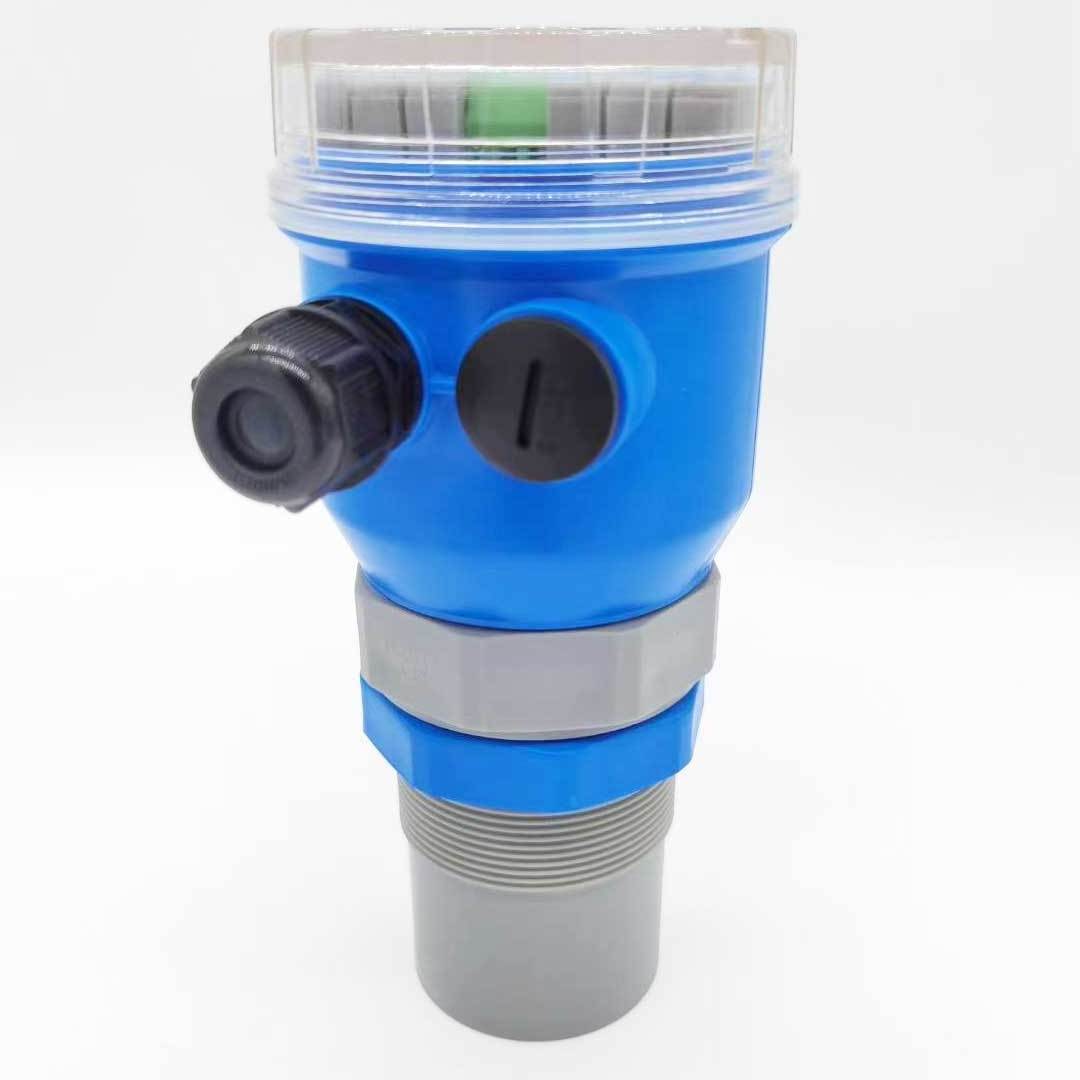

Product Overview
General information
Ultrasonic level measuring instrument, taking the advantages of various level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.
Fuel level gauge Factory 4-20Ma Boiler Water Level Ultrasonic Transmitter Liquid Water Diesel Meter Sensor
II. Characteristics
DC 12-24V wide work voltage
Backup and recovery parameter set
Free adjustment of the range of analog output
Set a filter value to remove
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
More choices depend on your requirement, as bellowing:
1.3 NPN output
2.2 relay output
3.Voltage output
4.RS485 output connect with PC
5.Explosion-proof
Specification
|
Range
|
5. 8. 10. 12. 15m
|
|
Blind zone
|
＜0.4-0.5m（different for range）
|
|
Measure error
|
0.3%F.S
|
|
Display
|
OLED
|
|
Display resolution
|
1mm
|
|
Frequency
|
20～350KHz
|
|
Power
|
12-24VDC
|
|
Power consumption
|
<1.5W
|
|
|
4～20mA RL>600Ω（standard）
1～5V\1～10V RS485 2 NPN 2 relays (AC: 5A 250V DC: 10A 24V) |
|
Material
|
ABS
|
|
Dimension
|
Φ92mm×198mm×M60
|
|
Electrical interface
|
M20X1.5
|
|
Installation
|
M60X2 or ￠61MM
|
|
Operating surroundings
|
normal temperature, normal pressure
|
|
Protection degree
|
IP65 (others optional)
|
