Quick Details
-
Power:
-
18.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Daiding
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
2957mm
-
Machine Weight:
-
3500 kg
-
Max Digging Radius:
-
5480mm
-
Rated Speed:
-
4.4km/h
-
Emission Standard:
-
Euro 5,EPA4
-
Make /Model:
-
KUBOTA /DD35
-
Power /Rotation speed:
-
18.2kw(25HP)/2200rpm
-
Number of cylinder:
-
3
-
Maximum Travel speed(High/low):
-
4.4/2.4km/h
-
Width of steel track shoe:
-
300mm
-
Standard Bucket capacity:
-
0.12m³
-
Machine weight:
-
3500kg
Quick Details
-
Operating Weight:
-
3.5TON
-
Bucket capacity:
-
0.12m³
-
Engine Brand:
-
Kubota
-
Power:
-
18.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Daiding
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
2957mm
-
Machine Weight:
-
3500 kg
-
Max Digging Radius:
-
5480mm
-
Rated Speed:
-
4.4km/h
-
Emission Standard:
-
Euro 5,EPA4
-
Make /Model:
-
KUBOTA /DD35
-
Power /Rotation speed:
-
18.2kw(25HP)/2200rpm
-
Number of cylinder:
-
3
-
Maximum Travel speed(High/low):
-
4.4/2.4km/h
-
Width of steel track shoe:
-
300mm
-
Standard Bucket capacity:
-
0.12m³
-
Machine weight:
-
3500kg

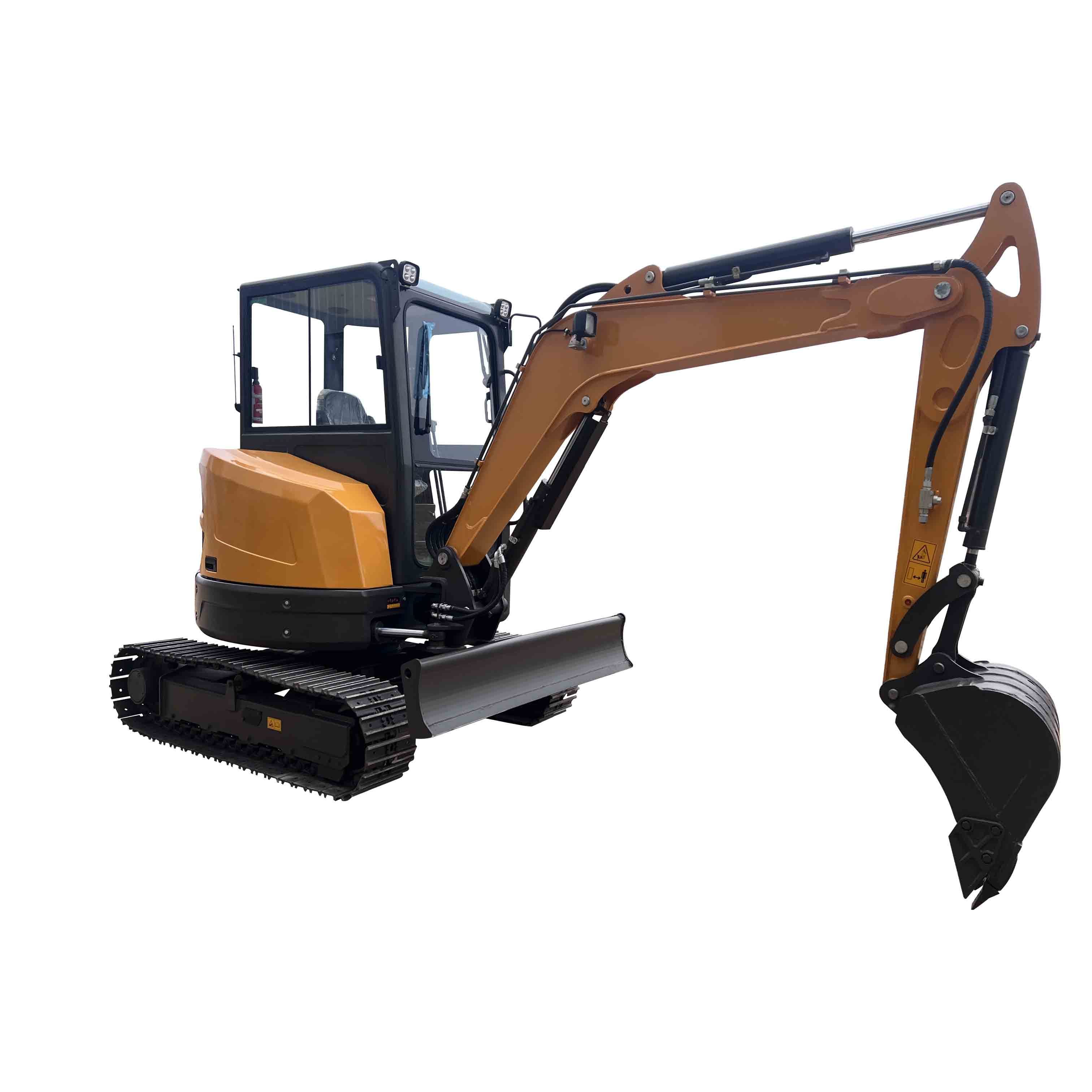

EPA/CE/EURO V Chinese DD35 1 ton 1.5 ton 1.8 ton 2 ton 2.7 ton 3.5 toncrawler With Attachments
|
ENGINE |
|
|
Emission Standard |
Euro 5,EPA4 |
|
Make /Model |
KUBOTA /D1703 |
|
Power /Rotation speed |
18.2kw(25HP)/2200rpm |
|
Number of cylinder |
3 |
|
Type |
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated |
|
Max.torque |
97.4N.m/1500rpm |
|
Displacement |
1.642L |
|
TRACK DRIVING SYSTEM |
|
|
Maximum Travel speed(High/low) |
4.4/2.4km/h |
|
Width of steel track shoe |
300mm |
|
Carrier roller(Each side) |
1 |
|
Supporting roller(Each side) |
4 |
|
PERFORMANCE PARAMETER |
|
|
Standard Bucket capacity |
0.12m³ |
|
Swing speed |
12rpm |
|
Maximum Grade ability |
58%(30°) |
|
Ground pressure |
32Kpa |
|
Maximum Bucket digging force |
30.4KN |
|
Maximum Arm digging force |
18.2KN |
|
Hydraulic system pressure |
22.5Mpa |
|
Machine weight |
3810kg |
|
Boom length |
2535mm |
|
Arm length |
1400mm |
|
Fuel tank capacity |
40L |
|
Hydraulic oil tank capacity |
44L |
|
Engine oil capacity |
7L |
|
Radiator capacity |
3.8L |
|
Final drive |
2*0.7L |
|
MACHINE SIZE |
|
|
Overall dimension (L*W*H) |
4915mm*1720mm*2525mm |
|
Axle base(Track length on ground) |
1670mm |
|
Length of rubber track |
2154mm |
|
Track gauge |
1420mm |
|
Minimum Ground clearance |
295mm |
|
Swing radius at tail |
860mm |
|
Swing radius at front |
2538mm |
|
Height of blade |
350mm |
|
WORKING RANGE |
|
|
Maximum Digging height |
4800mm |
|
Maximum Dumping height |
3406mm |
|
Maximum Digging depth |
3208mm |
|
Maximum Vertical digging depth |
2957mm |
|
Maximum Digging distance(working radius) |
5480mm |
|
Maximum digging distance (on ground) |
5359mm |
|
Minimum swing radius |
2530mm |
|
Max.height when min.swing radius |
3655mm |
|
Maximum Lifting height of blade |
365mm |
|
Maximum Cutting depth of blade |
385mm |
|
Boom swing angle(Left/Right) |
55°/65° |
