Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-FTIR-530A
-
Focal Length:
-
0.85 cm-1
-
Wavelength Range:
-
7800cm-1~350cm-1, 7800cm-1~350cm-1
-
Resolution:
-
0.85 cm-1
-
Beam splitter:
-
Multilayer Ge coated KBr
-
IR Source:
-
High intensity, long lifetime, air-cooled IR source
-
Signal to noise ratio:
-
Better than 20,000:1
-
Wavenumber Accuracy:
-
±0.01 cm-1
-
Environment Conditions:
-
Temperature: 10℃~30℃, humidity: less than 70%
-
Interferometer:
-
Cube-corner Michelson interferometer
-
Power Supply:
-
AC220V±22V,50Hz±1Hz
-
Software:
-
MainFTOS Suite software workstation
Quick Details
-
Warranty:
-
1 year
-
Size:
-
490x420x240 mm
-
Weight:
-
24kgs
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-FTIR-530A
-
Focal Length:
-
0.85 cm-1
-
Wavelength Range:
-
7800cm-1~350cm-1, 7800cm-1~350cm-1
-
Resolution:
-
0.85 cm-1
-
Beam splitter:
-
Multilayer Ge coated KBr
-
IR Source:
-
High intensity, long lifetime, air-cooled IR source
-
Signal to noise ratio:
-
Better than 20,000:1
-
Wavenumber Accuracy:
-
±0.01 cm-1
-
Environment Conditions:
-
Temperature: 10℃~30℃, humidity: less than 70%
-
Interferometer:
-
Cube-corner Michelson interferometer
-
Power Supply:
-
AC220V±22V,50Hz±1Hz
-
Software:
-
MainFTOS Suite software workstation
Products Description
Parameter:
|
Interferometer
|
Cube-corner Michelson interferometer
|
|
|
Beam splitter
|
Multilayer Ge coated KBr
|
|
|
Detector
|
High sensitivity pyroelectric module
(standard) |
Temperature stabilized module, MCT detector (optional)
|
|
IR Source
|
High intensity, long lifetime, air-cooled IR source
|
|
|
Wave number Range
|
7800cm-1~350cm-1
|
|
|
Resolution
|
0.85 cm-1
|
|
|
Signal to noise ratio
|
Better than 20,000:1 (RMS value, at 2100cm-1 ~ 2000cm-1 or 2100cm-1 ~ 2200cm-1, resolution: 4cm-1, detector: pyroelectric, 1
minute data collection) |
|
|
Wavenumber Accuracy
|
±0.01 cm-1
|
|
|
Scanning Speed
|
Microprocessor control, different scanning speed selectable.
|
|
|
Software
|
MainFTOS Suite software workstation, compatible to all version Windows OS
|
Various specialized functional software modules (optional)
|
|
Communication
|
Ethernet interface & WIFI wireless communication
|
|
|
Data Output
|
Standard data format, report generation and output
|
|
|
Status Diagnosis
|
Power on self-check, real-time temperature and humidity monitoring and reminders
|
|
|
Certification
|
|
|
|
Environment Conditions
|
Temperature: 10℃～30℃，
humidity: less than 60% |
|
|
Power Supply
|
AC220V±22V，50Hz±1Hz
|
AC110V（optional）
|
|
Dimensions & Weight
|
490×420×240 mm, 23.2kg
|
|
|
Accessories
|
Transmission sample holder (Standard)
|
Optional accessories such as gas cell, liquid cell, Defused/Specular Reflection, single/multi reflection ATR, etc.
|

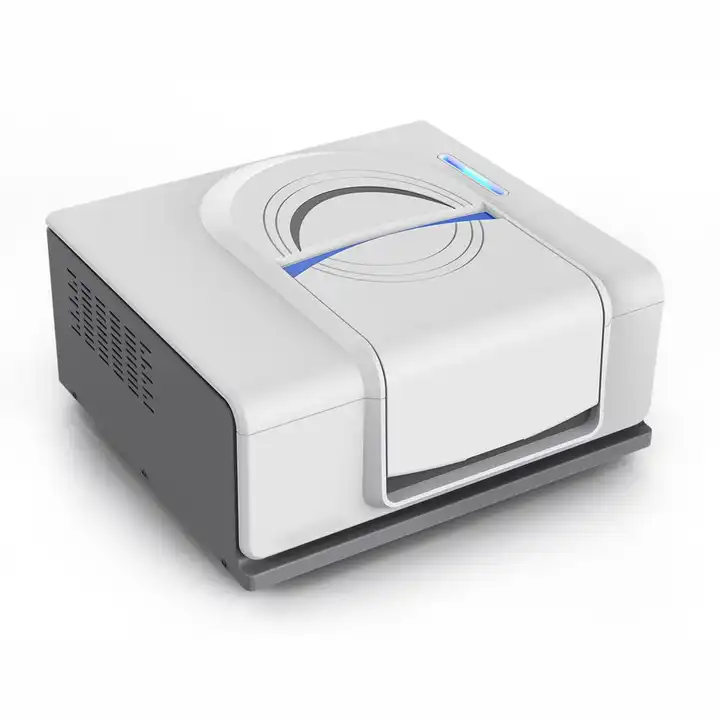

DW-FTIR-530A Infrared Spectrophotometer Price FT-IR
FTIR Spectrometer Price FTIR Spectrometer
Adhering to consistent excellent quality and superior performance, the new model obtains the best balance between intelligence and convenient operation, advance performance and low operation and maintenance cost. It is a good choice for basic science research analysis, production quality control, testing and detection in various fields.
* High sensitivity and stability
* Intelligent real-time monitoring of instrument status
* Multiple communication
* Flexible and convenient testing
* Powerful software workstation
Features：
* High sensitivity optical system: cube-corner Michelson interferometer combined with patented fixing mirror alignment technology（Utility model ZL 2013 2 0099730.2：fixing mirror alignment assembly），to ensure long term stability, without the need of dynamic alignment which needs extra complicated electronic circuits. Reflecting mirrors are coated with gold to provide the maximum light throughput and ensure the detection sensitivity.
* High stability modular partition design: compact structure modular design with layout on cast aluminum base and overall balance of mechanical robustness and partition heat dissipation, offering higher ability of deformation resistance and less sensitive to vibrations and thermal variations, greatly improves the mechanical stability and long-term working stability of the instrument.
* Intelligent multi-sealed moisture-proof design: multiple sealed interferometers, large-capacity desiccant cartridge with visible window and easy replacement structure, real-time monitoring of temperature and humidity inside the interferometer, getting rid of influences of high temperature, high humidity and chemical corrosions to the optical system in many ways.
* Innovated integration electronic system: high sensitivity pyroelectric detector pre-amplifier technology, dynamic gain amplification technology, high precision 24-bit A/D conversion technology, real-time control and data processing technology, digital filter, and network communication technology, ensuring high quality real-time data collection and high-speed transmission.
* Good anti-electromagnetic interference capability: The electronic system is designed to meet CE certification and
electromagnetic compatibility requirements, minimizing electromagnetic radiation in design and technology，in line with green instrument designing concept.
* High intensity IR source assembly: High intensity, long lifetime IR source module, with the highest energy distributed in fingerprint region, adopts a reflex sphere design to obtain even and stable IR radiation. External isolated IR source module and large space heat dissipation chamber design provide higher thermal stability and stable optical interference.
