Quick Details
-
Brand Name:
-
TECPEL
-
Model Number:
-
DTM-386
-
Measuring Range:
-
Measuring Range : -100 to 400°C
-
Accuracy:
-
±0.05% + 0.1°C (±0.05% + 0.2°F)
-
Resolution:
-
Resolution : 0.01°C (0.02°F)
-
Type of Sensor:
-
PT-100 4 wires (ALPHA=0.00385)
-
Data logging:
-
16,000
-
Recording time period:
-
1 Sec. to 60 minutes
-
Sensor specification:
-
IEC751, Class A
-
AUTO SHUT OFF::
-
30 minutes
-
accessory:
-
pt-100 probe, soft carrying case, and owner manual
-
Keywords:
-
PT100 platinum resistance thermometer
Quick Details
-
Warranty:
-
1 year
-
Customized support:
-
N/A
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
TECPEL
-
Model Number:
-
DTM-386
-
Measuring Range:
-
Measuring Range : -100 to 400°C
-
Accuracy:
-
±0.05% + 0.1°C (±0.05% + 0.2°F)
-
Resolution:
-
Resolution : 0.01°C (0.02°F)
-
Type of Sensor:
-
PT-100 4 wires (ALPHA=0.00385)
-
Data logging:
-
16,000
-
Recording time period:
-
1 Sec. to 60 minutes
-
Sensor specification:
-
IEC751, Class A
-
AUTO SHUT OFF::
-
30 minutes
-
accessory:
-
pt-100 probe, soft carrying case, and owner manual
-
Keywords:
-
PT100 platinum resistance thermometer

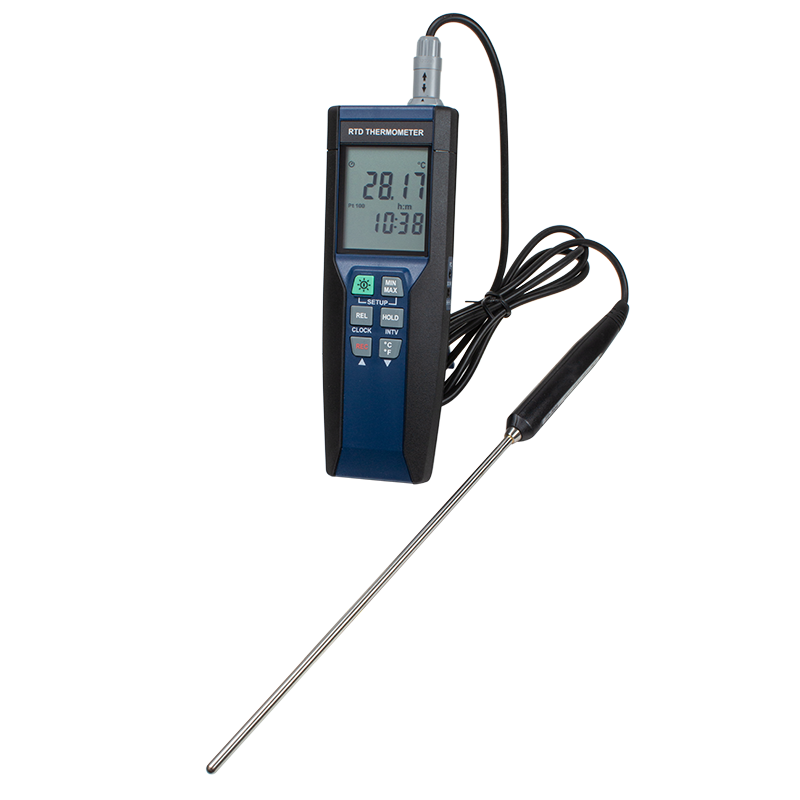

DTM-386 Platinum resistance RTD thermometer Data logger pt100 with high resolution of 0.01°C
DTM-386 is a handheld platinum resistance thermometer with highly high measurement accuracy. It is suitable for low-temperature and temperature detection, requiring high measurement accuracy.
Built-in 16,000 record function, can measure temperature changes for a long time; users can download the measurement data through USB, and browse the temperature graph and data on the computer.
Measurement Specification
Measuring Range : -100 to 400°C (-148 to 752°F)
Accuracy : ±0.05% + 0.1°C (±0.05% + 0.2°F)
Resolution : 0.01°C (0.02°F)
Sensor Type : pt-100 4 wires (ALPHA=0.00385)
Sensor specification : IEC751, Class A
Sensor accuracy : ±0.15°C±0.002t (t: measurement temperature)
Product Features
MAXIMUM (MAX) : 16,000
MINIMUM
HOLD FUNCTION (HOLD)
AUTO SHUT OFF: 30 minutes
Back Light
Time
OVER-RANGE INDICATION: OL
LOW BATTERY INDICATOR
Product Information
Working environment: 0~50°C / lower than 80%RH without dew.
Storage environment: -10~60°C / lower than 80%RH without dew.
Elevation Limitation: Lower than 2,000 meters
Power Supply: 9V battery (Optional DC 9V power supply)
Battery life: Approx 100 hours
Dimension : 185 x 65 x 36 mm
Weight: 360 g
Accessory: pt-100 probe, soft carrying case, and owner manual
Optional Accessory : Transformer(9V), Transmission line (USB/RS-232), Software(SE-300)
Some well-known international customers have accepted our quality products . Our confidence in our products is reflected in our one-year warranty and our flat-rate service policy 3 through 5 years. Many of our products get CE approvals.
Shipment can be done within 14 days after receipt of payment for small quantity.
Years of experience have taught us that to make our customers happy is to satisfy their every need. TECPEL continues to be a customer focused company and is committed to providing our customers with high quality, best price products with prompt services. All of this is combined to ensure your satisfaction.
