Quick Details
-
Power:
-
20KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOAO
-
Maximum Digging Height:
-
2500mm
-
Maximum Digging Depth:
-
1800mm
-
Machine Weight:
-
1700 kg
-
Max Digging Radius:
-
2900mm
-
Rated Speed:
-
0-3.5km/h
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
2 Year
-
Origin:
-
China Mailand
-
MOQ:
-
1 Set
Quick Details
-
Operating Weight:
-
3ton, 7TON, 1ton, 6TON, 2ton, 4ton, 0.8 TON, Other, 9 ton, 8 Ton, 5ton, 1.2ton
-
Bucket capacity:
-
0.03mmm
-
Engine Brand:
-
Famous
-
Power:
-
20KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOAO
-
Maximum Digging Height:
-
2500mm
-
Maximum Digging Depth:
-
1800mm
-
Machine Weight:
-
1700 kg
-
Max Digging Radius:
-
2900mm
-
Rated Speed:
-
0-3.5km/h
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
2 Year
-
Origin:
-
China Mailand
-
MOQ:
-
1 Set

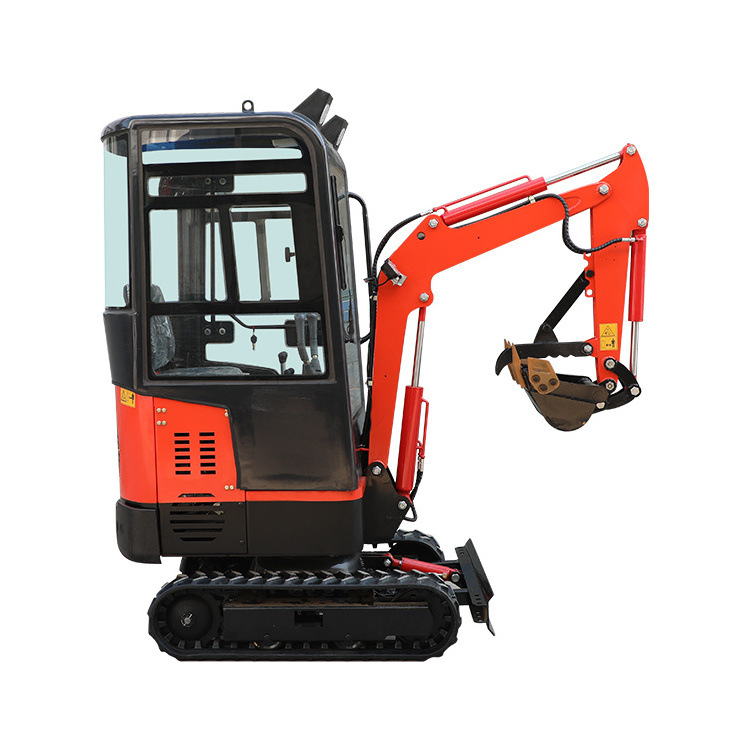

Small Mini Excavator Description:
Factory exclusive design department, new updated appearance,and very small and flexible
It has enhanced design arm, bucket rod, bucket, so that the whole machine has a longer
life.And structural parts are made of stainless stell or plastic to prolong service life.
|
Model SE12
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Operating Weight
|
|
|
|
1,200 kg
|
|
|
|
|
|
|||||||||
|
Digging Bucket Capacity
|
|
|
|
0.03 m³
|
|
|
|
|
|
|||||||||
|
Bucket Width
|
|
|
|
400 mm
|
|
|
|
|
|
|||||||||
|
Travel Speed
|
|
|
|
0 - 3.5 km/h
|
|
|
|
|
|
|||||||||
|
Gradeability
|
|
|
|
35°
|
|
|
|
|
|
|||||||||
|
Roof
|
|
|
|
Yes
|
|
|
|
|
|
|||||||||
|
Tool Kit
|
|
|
|
Yes
|
|
|
|
|
|
|||||||||
|
Warranty
|
|
|
|
2 Year
|
|
|
|
|
|
|||||||||
|
Engine
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Brand
|
|
|
|
KOOP KD192FE / CHANGCHAI 192FAM
|
|
|
|
|
|
|||||||||
|
Rated power
|
|
|
|
8.2 kw (11.7 hp) @ 3600 rpm / 8.2 kw (11.15 hp) @ 3600 rpm
|
|
|
|
|
|
|||||||||
|
Type
|
|
|
|
Diesel, 1-Cylinder, 4-Stroke, Air-cooled, Veritical
|
|
|
|
|
|
|||||||||
|
Bore Stroke
|
|
|
|
92 * 75
|
|
|
|
|
|
|||||||||
|
Displacement
|
|
|
|
0.499L
|
|
|
|
|
|
|||||||||
|
Compression Ratio
|
|
|
|
19.5 / 19
|
|
|
|
|
|
|||||||||
|
Fuel Consumpition
|
|
|
|
280g/kwh / ≤320g/kwh
|
|
|
|
|
|
|||||||||
|
Fuel Tank Capacity
|
|
|
|
5.5L / 7.5L
|
|
|
|
|
|
|||||||||
|
Oil Tank Capacity
|
|
|
|
1.65 L
|
|
|
|
|
|
|||||||||
|
Fuel
|
|
|
|
0#(Summer), -10#(Winter), Diesel Oil
|
|
|
|
|
|
|||||||||
|
N.W
|
|
|
|
55 kg
|
|
|
|
|
|
|||||||||
|
Starting System
|
|
|
|
Electrical
|
|
|
|
|
|
|||||||||
|
Main Dimensions
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Overall Dimension (L * W * H)
|
|
|
|
2,200 * 930 * 2,200 mm
|
|
|
|
|
|
|||||||||
|
Track Length
|
|
|
|
1,200 mm
|
|
|
|
|
|
|||||||||
|
Track Width
|
|
|
|
180 mm
|
|
|
|
|
|
|||||||||
|
Track Height
|
|
|
|
320 mm
|
|
|
|
|
|
|||||||||
|
Min. Ground Clearance
|
|
|
|
380 mm
|
|
|
|
|
|
|||||||||
|
Min. Turning Radius
|
|
|
|
1,190 mm
|
|
|
|
|
|
|||||||||
|
Chassis Width
|
|
|
|
930 mm
|
|
|
|
|
|
|||||||||
|
Tread
|
|
|
|
770 mm
|
|
|
|
|
|
|||||||||
|
Hydraulic Oil Tank Capacity
|
|
|
|
16 L
|
|
|
|
|
|
|||||||||
|
Operatring Performance
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Digging Force
|
|
|
|
10.3 kn
|
|
|
|
|
|
|||||||||
|
Max. Digging Depth
|
|
|
|
1,650 mm
|
|
|
|
|
|
|||||||||
|
Max. Vertical Digging Depth
|
|
|
|
1,450 mm
|
|
|
|
|
|
|||||||||
|
Max. Digging Height
|
|
|
|
2,580 mm
|
|
|
|
|
|
|||||||||
|
Max. Dumping Height
|
|
|
|
1,850 mm
|
|
|
|
|
|
|||||||||
|
Max. Digging Radius on Ground
|
|
|
|
2,500 mm
|
|
|
|
|
|
|||||||||
|
Max. Digging Distance
|
|
|
|
2,100 mm
|
|
|
|
|
|
|||||||||
|
Max. Lifting Height of Bulldozer Blade
|
|
|
|
325 mm
|
|
|
|
|
|
|||||||||
|
Max. Digging Depth of Bulldozer Blade
|
|
|
|
210 mm
|
|
|
|
|
|
|||||||||
|
FAQ
|
|
1.Are you excavator machine manufacturer?
|
|
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
|
|
2.What is your payment term ?
|
|
We accept T/T, L/C at sight, Western Union, Paypal etc.
|
|
3.How long is the validity of quotation ?
|
|
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
|
|
4.What is your delivery time ? .
|
|
First we need to check if we have any stock, if we have the products in stock, the delivery time is 7-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days ,It depend on the order quantity.
|
|
5.Do you provide OEM/ODM Service ?
|
|
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different
budgets |
