The company is mainly engaged in the development,design,manufacture and technical service
of four-column hydraulic press,single-column hydraulic press, gantryhydraulic press,hydraulic stretcher hydraulic cylinder,complete hydraulic system and hydraulicprerss,hydraulic electric controlproduction line .Products are widely used in
steel,metallurgy ,
light industrial machinery machinery ,chemical machenery ,auto parts ,plastic products and other industries.
- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
2000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
woda
-
Year:
-
new
-
Voltage:
-
220-600V
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
4.5 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New Product
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Power Source:
-
Hydraulic Power
-
Keyword:
-
Hydryalic Press
-
Product name:
-
Power Press Machine
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
Four Columns
-
Usage:
-
Metal Press
-
Name:
-
Hydraulic Punch Press Machine
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
400
-
Ejector Force (kN):
-
1000
-
Return Force (kN):
-
2000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
woda
-
Year:
-
new
-
Voltage:
-
220-600V
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
4.5 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New Product
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Power Source:
-
Hydraulic Power
-
Keyword:
-
Hydryalic Press
-
Product name:
-
Power Press Machine
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
Four Columns
-
Usage:
-
Metal Press
-
Name:
-
Hydraulic Punch Press Machine
200t animal salt block cow sheep licking salt block hydraulic press
Product Description
400

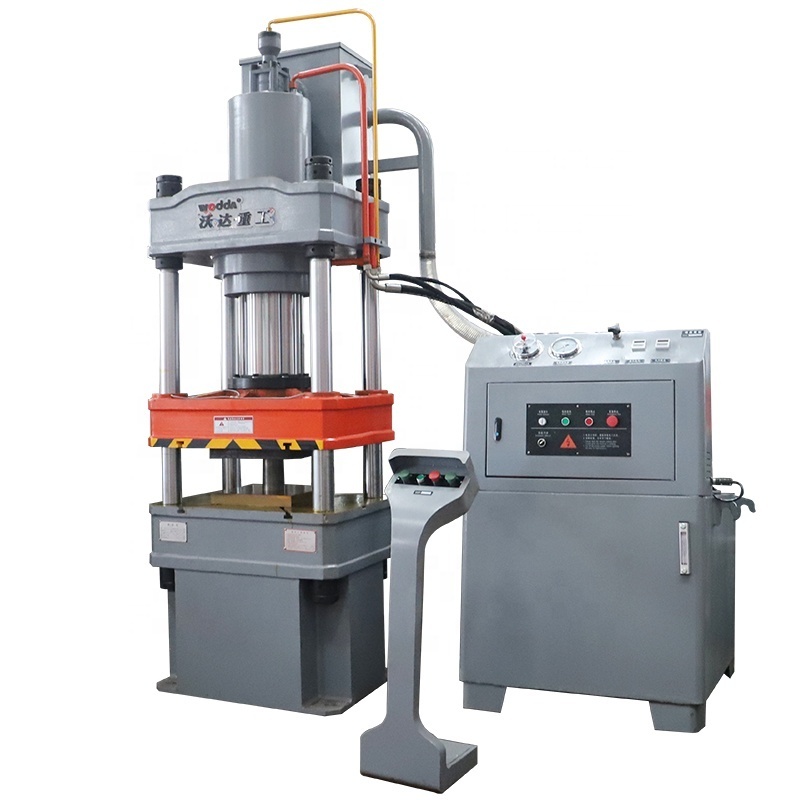

ton Salt brick forming hydraulic press Is a multi-function hydraulic press, also known
as the three beams four-column hydraulic press, fuselage adopt three beam four column structure, economical and practical, the hydraulic control USES the cartridge valve integrated system, reduce the leak point, reliable operation, long service life, which can realize constant pressure and range is two kinds of forming process, have confirmed when rolling function, working pressure stroke can be adjusted within the prescribed scope, USES the centralized control buttons, which can realize three kinds of manual, semiautomatic,automatic operation mode.
|
Specification
|
|
Unit
|
200T-A
|
200T-B
|
200T-C
|
200T-D
|
200T-F
|
|
|
Nominal force
|
|
KN
|
2000
|
2000
|
2000
|
2000
|
2000
|
|
|
Ejecting force
|
|
KN
|
500
|
500
|
500
|
500
|
350
|
|
|
Max. pressure of liquid
|
|
MPa
|
25
|
25
|
25
|
25
|
25
|
|
|
Stroke of slider
|
|
mm
|
400
|
400
|
400
|
400
|
400
|
|
|
Max. opening height
|
|
mm
|
800
|
800
|
800
|
800
|
800
|
|
|
Working table size
|
|
mm*mm
|
800X800
|
900X700
|
1000X900
|
1000X1000
|
660X660
|
|
|
Ejecting stroke
|
|
mm
|
250
|
250
|
250
|
250
|
250
|
|
|
Speed of slider
|
Idle speed
|
mm/s
|
30
|
30
|
30
|
30
|
30
|
|
|
|
Working speed
|
mm/s
|
6-12
|
6-12
|
6-12
|
6-12
|
6-12
|
|
|
|
Return speed
|
mm/s
|
20
|
20
|
20
|
20
|
20
|
|
|
Motor power
|
|
KW
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
|
Product Description
For making any animal salt bricks you need
Processing site
1. Hydraulic power part, manual and electric
2. Mechanical control part;
3. Working cylinder part;
4. Hydraulic power part;
By hydraulic oil pump. The motor is connected to the plunger pump with an elastic coupling
5. Mechanical control part;
It is controlled by distribution box and combination button switch
6. Tubing part: connected by high pressure seamless steel tube
2. Mechanical control part;
3. Working cylinder part;
4. Hydraulic power part;
By hydraulic oil pump. The motor is connected to the plunger pump with an elastic coupling
5. Mechanical control part;
It is controlled by distribution box and combination button switch
6. Tubing part: connected by high pressure seamless steel tube
Company Introduction
Shandong Woda Heavy Industry Machine Tool Co., Ltd.is located in Tengzhou Economic Development Zone, Shandong Province .The company has long been committed to the development of forging machinery and CNC machine tools.
Our hydraulic presses are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates International CE certification, Alibaba / China manufacturing network SGS certification.
We go to all kinds of fairs, if you're interested.You can come to China to participate in the exhibition, we will meet here
.
Packing&Shipping
1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board
package.
Combined container transport, or separate container transport.
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board
package.
Combined container transport, or separate container transport.
FAQ
Q:How about your machine quality?We are worry about the quality.
A:Woda is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Q:How to select your machine?
A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
