- Product Details
- {{item.text}}
Quick Details
-
Size:
-
SEAT SIZE 45CM OR 52CM
-
Feature:
-
LCD Joystick + Voice prompts
-
Material:
-
Aluminum Alloy
-
Function:
-
Recliner, Mobility tool
-
Usage:
-
Elderly disabled electric wheelchair
-
Warranty:
-
1 Year
-
Certificate:
-
510K/ISO13485/7176/DG
-
Seat Size:
-
17.5 inch--20.0 inch
-
Range:
-
15-25km
-
Parts:
-
Headrest/Cup Holder / Leg Rest and so on
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KS MED or OEM
-
Model Number:
-
KSM-601L
-
Size:
-
SEAT SIZE 45CM OR 52CM
-
Feature:
-
LCD Joystick + Voice prompts
-
Material:
-
Aluminum Alloy
-
Function:
-
Recliner, Mobility tool
-
Usage:
-
Elderly disabled electric wheelchair
-
Warranty:
-
1 Year
-
Certificate:
-
510K/ISO13485/7176/DG
-
Seat Size:
-
17.5 inch--20.0 inch
-
Range:
-
15-25km
-
Parts:
-
Headrest/Cup Holder / Leg Rest and so on
| Model | 601L |
| Overall size | 980*600*950mm |
| Folded size | 750*600*380mm |
| Seat size | 450*430mm |
| Seat Height | 530mm |
| Backrest height | 510mm |
| Speed | 1-7km/h |
| Max driving distance | 15km/20km |
| Battery | DC 24V 12Ah/20Ah Li-ion |
| Battery charger | AC 100~240V, 50Hz, 1.5~5A |
| Max loading weight | 130kg |
| Wheel diameter | 8 inch & 12 inch |
| Motor | DC 24V 250W * 2pcs |
| Joystick | 24V 50A |
| Max safe slope | 10° |
| Climbing angle | 6° |
| Turning radium | ≤1.2M |
| Material | Aluminum alloy |
| N.W. | 27.5/28.5kg |
| Package size |
670*450*870mm |
The standard configuration of the wheelchair with the MANUAL reclining function,
Add 60 usd can be upgraded to
AUTOMATIC
reclining function.
CERTIFICATE
KS MEDICAL

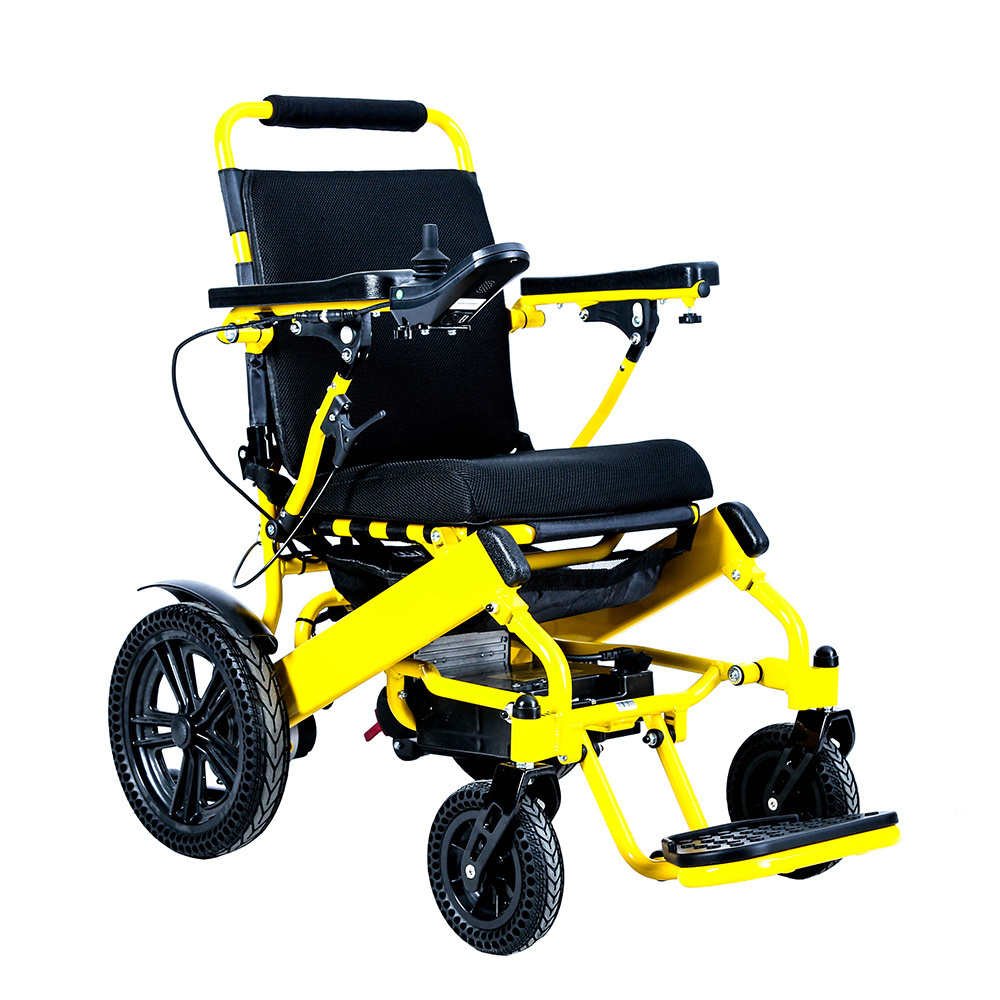

KSM-601L Aluminum Alloy Electric Folding Electric Scooters Motorize Lightweight Wheel Chair and Electric Scooter Wheelchair for Disabilities
What products and services does the sample have:
Honeycomb Solid Wheel + Light with USB Charger + Reclining Adjustable Backrest + Wireless Remote Control
Features:
1: Reliable lying function
2: Both the controller and the battery can be charged
3:There is a shopping bag under the seat
4: Wireless remote control cooperate is very cool
5: LED lights are provided under the controller, which can be used for lighting and USB mobile phone charging
6: Provide Drop-shipping service
The conventional wheelchair is 45 seats wide, if you need a widened 52cm, please contact us!
If you need other Accessories like : cup holder, phone bag ,headrest , shopping bag , adjustable footrest etc please contact us ...
What services are available for wholesale customization:
OEM Service:
1: Any color accept
2: Brush motor or Brushless motor you can choose
3: Accept customization and discussion of other functions
4: Can provide exclusive agency
5: Additional accessories such as headrest, cup holder, adjustable leg holder, etc.
6: Have DG certificate and CE TUV, ISO13485/7176/ 510K
Freeilyexport to any country without customs clearance issues
