2.USB Cable
3.Foot switch
3.USB flash driver
4.Rule
5.Laser protect glasses.
- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZcad Software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIN ZHI YIN
-
Weight (KG):
-
62 KG
-
Laser Power:
-
20w/30W/50W
-
Minimum Line Width:
-
0.012mm
-
Repeated Precision:
-
±0.003mm
-
Life-span of Fiber Laser Module:
-
100 000hours
-
Beam Quality:
-
M2 <1.5
-
Focus Spot Diameter:
-
<0.01mm
-
Fiber Laser Source Lifespan:
-
100000 hours
-
Laser source:
-
Raycus
-
Marking Depth:
-
<0.5mm
-
Voltage:
-
110v/220v
Quick Details
-
Working Accuracy:
-
0.012mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZcad Software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIN ZHI YIN
-
Weight (KG):
-
62 KG
-
Laser Power:
-
20w/30W/50W
-
Minimum Line Width:
-
0.012mm
-
Repeated Precision:
-
±0.003mm
-
Life-span of Fiber Laser Module:
-
100 000hours
-
Beam Quality:
-
M2 <1.5
-
Focus Spot Diameter:
-
<0.01mm
-
Fiber Laser Source Lifespan:
-
100000 hours
-
Laser source:
-
Raycus
-
Marking Depth:
-
<0.5mm
-
Voltage:
-
110v/220v
Product Description

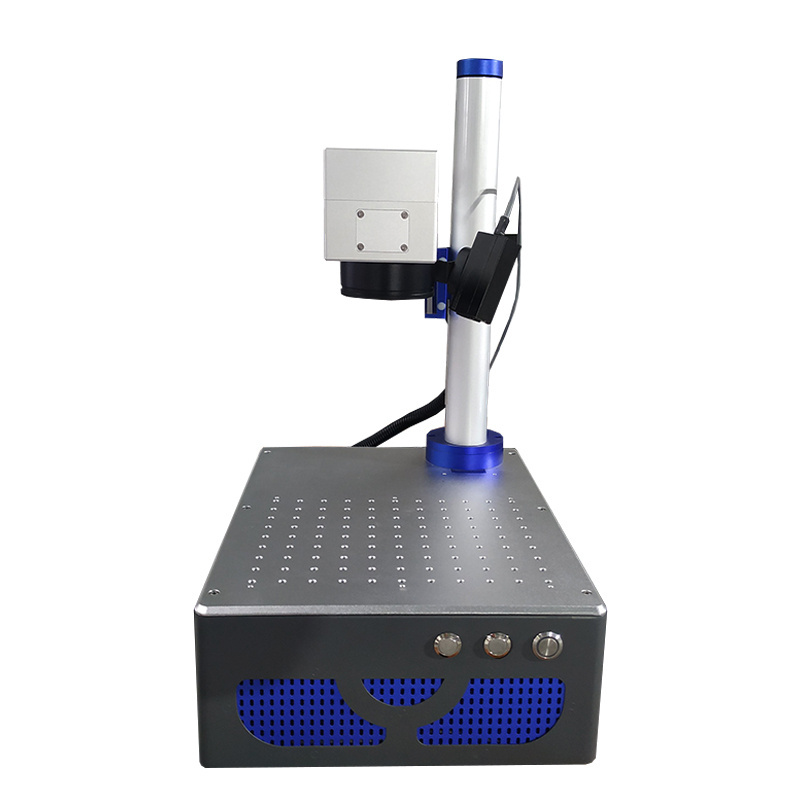

20w 30w 50w fiber laser with automatically metal laser engraver Raycus source BJJCZ original card 110mm 150mm optional
Product application
Widely used in integrated circuit chips, computer accessories, industrial bearings, watches, electronic and communications products, aerospace equipment, various automotive parts, home appliances, hardware tools, molds, wire and cable, food packaging, jewelry, tobacco and military matters, etc. Marking of domain graphics and text, as well as high-volume production line operations
Note:
1, In the freight, Russian customers can only go to the customer's city, the customer needs to pick up the goods from the city's warehouse. But we have already helped our customers pay the tariffs, so there will be no more other charges,
2, All transportation costs do not include customs duties and do not include remote fees. If the customer's address is in a remote area, the customer is required to pay a remote fee.
3, seller's shipping method means that we will ship this machine by sea to basic sea port , need customer pay the destination sea port charges, and customs tax. ( not including Russian customers )
1, In the freight, Russian customers can only go to the customer's city, the customer needs to pick up the goods from the city's warehouse. But we have already helped our customers pay the tariffs, so there will be no more other charges,
2, All transportation costs do not include customs duties and do not include remote fees. If the customer's address is in a remote area, the customer is required to pay a remote fee.
3, seller's shipping method means that we will ship this machine by sea to basic sea port , need customer pay the destination sea port charges, and customs tax. ( not including Russian customers )
|
Specification for 30w fiber laser marking machine
|
|
|
|
|||
|
Main Parameters
|
Power
|
20w/30w/50w
|
|
|||
|
|
Laser Brand
|
Raycus brand
|
|
|||
|
|
Marking Area
|
110*110/150*150/
|
|
|||
|
|
Galvanometer
|
Sino-Galvanometer SG7110
|
|
|||
|
Main performance parameters
|
Marking Speed
|
7000mm/s
|
|
|||
|
|
Marking Depth
|
≤0.5mm
|
|
|||
|
|
Minimum Line Width
|
0.012mm
|
|
|||
|
|
Minimum Character
|
0.15mm
|
|
|||
|
|
Repeated Precision
|
±0.003mm
|
|
|||
|
|
Focus Spot Diameter
|
<0.01mm
|
|
|||
|
|
Life-span of Fiber Laser Module
|
100 000hours
|
|
|||
|
Work Environment
|
System Operation
|
Windows XP / W7--32/64bits / W8--32/64bits
|
|
|||
|
|
Cooling Mode
|
Air cooling--Built-in
|
|
|||
|
|
Voltage
|
220V or 110V
|
|
|||
|
O
ther specfications
|
Communication Interface
|
USB
|
|
|||
|
|
Package Dimension
|
780mm x 420mm x 770mm
|
|
|||
|
|
Gross weight
|
60KG
|
|
|||
Main Features
1,China famous brand Raycus source laser power 20w/30w/50w, big marking size.
2, Sino galvo, high precise, good quality.( 110*110mm /150*150mm optional )
3, JCZ main board, free software ( support English , Japanese, Korea ). software version ( Ezcad 2.7 ).
4, Support win7/win8 ( 32 bits, 64 bits ). voltage 110v/220v optional.
5, Factory direct sale, price cheap.3 years warranty !
Detailed Images
1.Raycus laser source 30w
Fiber laser device adopts Raycus Technology.
China top quality,100000 hours lifetime
2.Sino galvo
High quality laser scanning system makes the marking speed up to 7000mm/s
3.main board
BJJCZ main board, with free software Ezcad, Support for multiple languages
4.Field lens
China famous field lens, stable laser beam output.
Free accessory
Free accessory
1.Power cable
Sample
Packing & Delivery
Standard plywood case for export
Certifications
Certifications
We have passed CE and certification and our products are exported to all of the world.
Our Company
Related Products
FAQ
Notice: Express Seller's Shipping Method means that we will pay for the freight by sea to your basic sea port, we pay for freight , need customer clear the customs ,pay the customs tax and local sea port charges. it is not door to door service.
Q1. How to get the most suitable machine and best price
Please tell us the material you want to engrave or cut? Max size and thickness?
Q2. If we don't know how to use the machine,can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.
Q3.How about your after-sales service?
we offer you 24 hours service by phone, Skype or Whatsapp.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
