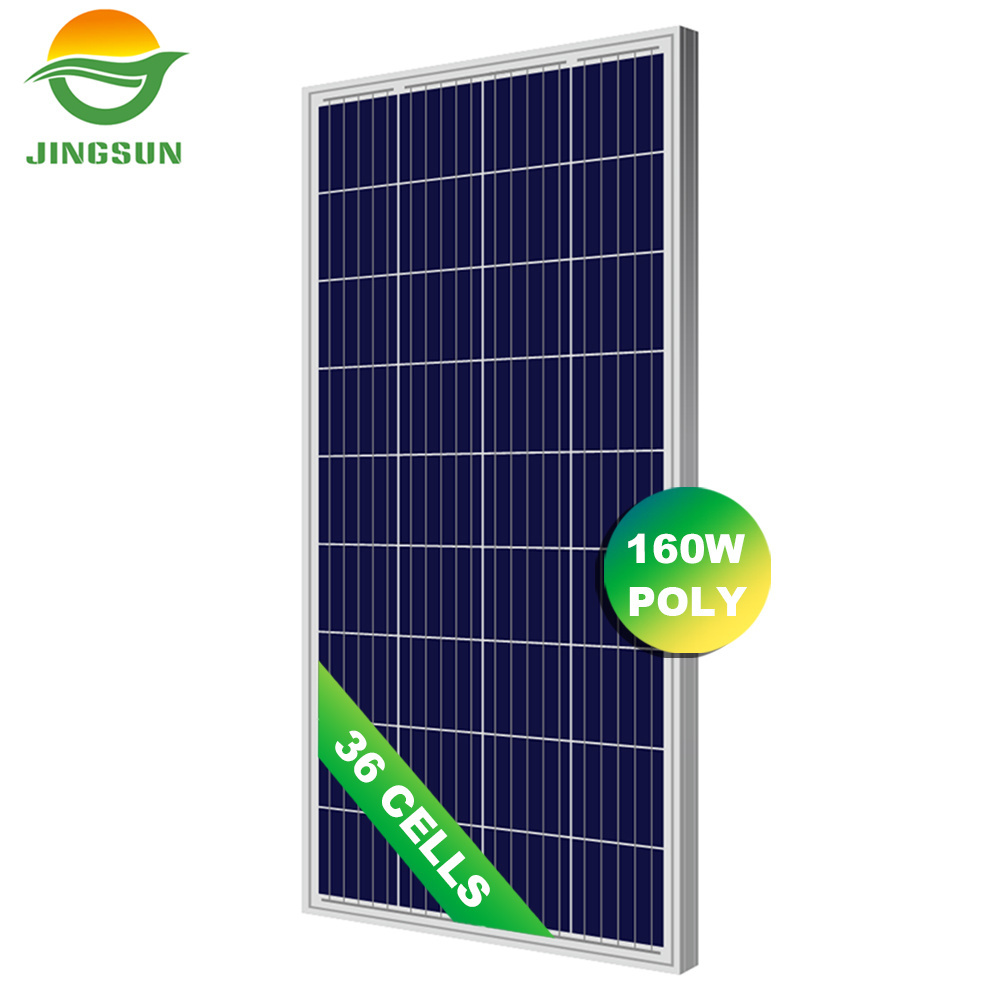

Quick Details
-
Brand Name:
-
Jingsun
-
Model Number:
-
JAP36S-160
-
Certificate:
-
TUV,CE,IEC,INMERTO,ISO
-
Back sheet Color:
-
White
-
Front Glass:
-
3.2mm Tempered Glass
-
Solar cell:
-
Mono 156.75*156.75mm
-
Size:
-
1480*680*30mm
-
Product name:
-
Monocrystalline Solar panel
-
Application:
-
Solar Power System
-
Material:
-
Monocrystalline Silicon
-
Efficiency:
-
20%
-
Busbar:
-
5BB
-
OEM Order:
-
Acceptable
Quick Details
-
Type:
-
PERC
-
Cell Efficiency:
-
20%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Jingsun
-
Model Number:
-
JAP36S-160
-
Certificate:
-
TUV,CE,IEC,INMERTO,ISO
-
Back sheet Color:
-
White
-
Front Glass:
-
3.2mm Tempered Glass
-
Solar cell:
-
Mono 156.75*156.75mm
-
Size:
-
1480*680*30mm
-
Product name:
-
Monocrystalline Solar panel
-
Application:
-
Solar Power System
-
Material:
-
Monocrystalline Silicon
-
Efficiency:
-
20%
-
Busbar:
-
5BB
-
OEM Order:
-
Acceptable
Products Description
|
Model of Solar Panel
|
JAP36S-150
|
JAP36S-160
|
JAP36S-170
|
JAP36S-175
|
JAP36S-180
|
JAM36S-180
|
||||
|
Peak Power Watts-Pmax(Wp)*
|
150
|
160
|
170
|
175
|
180
|
180
|
||||
|
Maximum Power Voltage-Vmpp(V)
|
17.5
|
17.7
|
17.9
|
18.0
|
18.1
|
18.1
|
||||
|
Maximum Power Current-Impp(A)
|
8.63
|
9.04
|
9.50
|
9.73
|
9.95
|
9.95
|
||||
|
Open Circuit Voltage-Voc(V)
|
22.4
|
22.6
|
22.8
|
22.9
|
23.0
|
23.0
|
||||
|
Short Circuit Current-Isc(A)
|
9.05
|
9.25
|
9.74
|
9.98
|
10.22
|
10.22
|
||||
|
Module Efficiency (%)
|
15.5
|
16.08
|
17.09
|
17.58
|
18.07
|
18.07
|
||||
|
Power Output Tolerance-Pmax(W)
|
0~+5
|
|
|
|
|
|
||||
|
Temperature Coefficient of Pmax
|
-0.41%/ºC
|
|
|
|
|
|
||||
|
Temperature Coefficient of Voc
|
-0.33%/ºC
|
|
|
|
|
|
||||
|
Temperature Coefficient of Isc
|
0.059%/ºC
|
|
|
|
|
|
||||
|
STC
|
Irradiance 1000W/m2, Cell Temperature 25 , Air Mass AM1.5
|
|
|
|
|
|
||||
