Quick Details
-
Brand Name:
-
zichuball
-
Model Number:
-
14.288mm
-
Surface Treatment:
-
burnishing
-
level:
-
G100-G1000
-
producer:
-
Liaocheng, Shandong
-
specifications:
-
0.5mm-60mm
-
public errand:
-
+/-(0.0025mm-0.025mm)
-
use to:
-
Universal ball
Quick Details
-
Applicable Industries:
-
motorcycle accessories, pulley, Stainless steel bearing
-
Material:
-
Stainless steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zichuball
-
Model Number:
-
14.288mm
-
Surface Treatment:
-
burnishing
-
level:
-
G100-G1000
-
producer:
-
Liaocheng, Shandong
-
specifications:
-
0.5mm-60mm
-
public errand:
-
+/-(0.0025mm-0.025mm)
-
use to:
-
Universal ball
Products Description

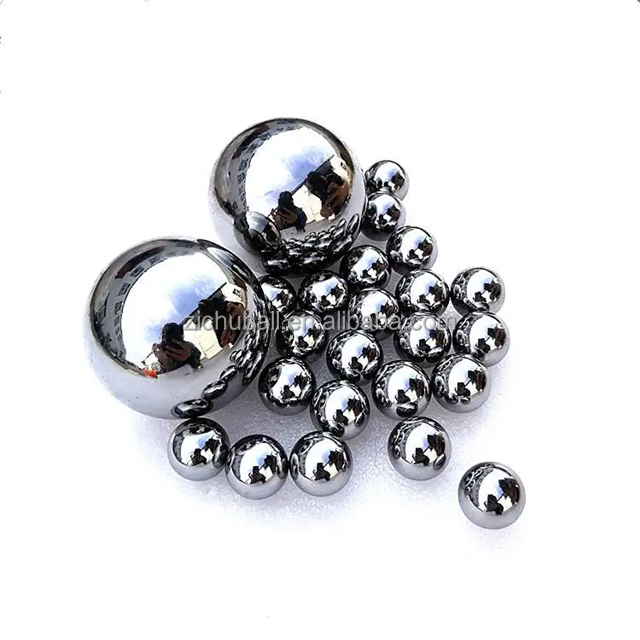

Stainless steel ball
Material: AISI201/304 /304L/316/316L/420/420C/440/440C
Size:0.5mm-150mm
Grade: G10-G1000
Hardness:AISI304 and AISI316 are soft materials. For AISI420C after heat-treatment, the hardness is between HRC54-60. For AISI440C is HRC58-62
Quality standard:ISO 9001:2016/SGS test report/ROHS report
Feature&Applications:
stainless steel ball is the most widely used in the market,it can be used in iatrical instruments,chemical industry,plastic hard ware,scent bottle sprayer,valve,nail polish,air condition,medical material,automotive fittings.
Size:0.5mm-150mm
Grade: G10-G1000
Hardness:AISI304 and AISI316 are soft materials. For AISI420C after heat-treatment, the hardness is between HRC54-60. For AISI440C is HRC58-62
Quality standard:ISO 9001:2016/SGS test report/ROHS report
Feature&Applications:
stainless steel ball is the most widely used in the market,it can be used in iatrical instruments,chemical industry,plastic hard ware,scent bottle sprayer,valve,nail polish,air condition,medical material,automotive fittings.
|
Material
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
|
AISI304
|
0.07 max
|
1.0 max
|
2.0 max
|
0.045 max
|
0.03 max
|
8.0-10.5
|
17.0-19.0
|
----
|
|
AISI316
|
0.07 max
|
1.0 max
|
2.0 max
|
0.045 max
|
0.03 max
|
10.0-14.0
|
16.5-18.5
|
2.00-2.50
|
|
AISI420
|
0.40-0.50
|
1.0 max
|
1.0 max
|
0.04 max
|
0.03 max
|
1.0 max
|
12.0-14.0
|
----
|
|
AISI440
|
0.95-1.20
|
1.0 max
|
1.0 max
|
0.04 max
|
0.03 max
|
0.60 max
|
16.0-18.0
|
0.40-0.80
|
