Quick Details
-
Jacket:
-
BARE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guowang
-
Model Number:
-
ACSR
-
Voltage::
-
1KV 10KV
-
Sectional area::
-
0.5sqmm -400sqmm
-
Standard::
-
IEC 60227 IEC60228
-
Certification::
-
ISO9001 ISO14001 CCC CE
-
Number of Conductors::
-
As your request
-
Application::
-
Overhead
-
Packing::
-
Woodren Drum
-
MOQ::
-
200 Meters
-
Working temperature::
-
60 - 200
-
Type::
-
MEDIUM VOLTAGE
Quick Details
-
Insulation Material:
-
BARE
-
Application:
-
Overhead
-
Conductor Material:
-
Aluminum
-
Jacket:
-
BARE
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guowang
-
Model Number:
-
ACSR
-
Voltage::
-
1KV 10KV
-
Sectional area::
-
0.5sqmm -400sqmm
-
Standard::
-
IEC 60227 IEC60228
-
Certification::
-
ISO9001 ISO14001 CCC CE
-
Number of Conductors::
-
As your request
-
Application::
-
Overhead
-
Packing::
-
Woodren Drum
-
MOQ::
-
200 Meters
-
Working temperature::
-
60 - 200
-
Type::
-
MEDIUM VOLTAGE
Product Description

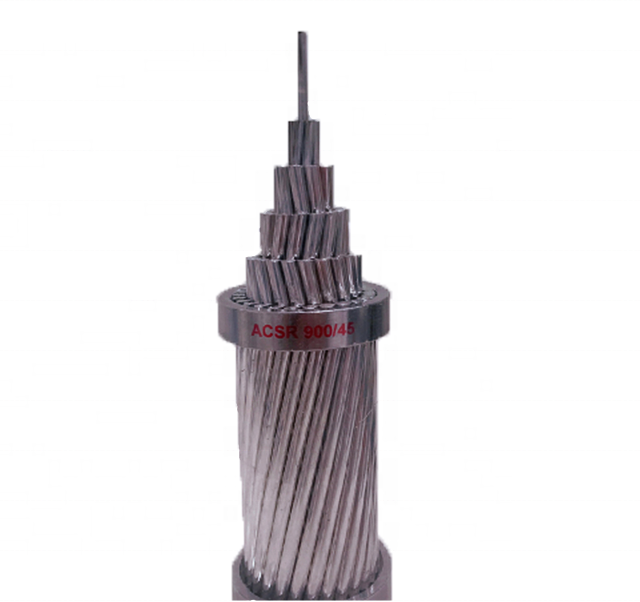

Factory Price Acsr Wire 12 Swg Overhead Line Conductor Acsr Far East Cable
|
Code name
|
Nominal Area
|
Stranding&Wire
Dia. |
|
Overall Dia.
|
Weight
|
Breaking Load
|
DC Resistance at 20℃
|
Current Rating
|
|
|
|
|
Aluminum
|
Steel
|
|
|
|
|
|
|
|
|
MM2
|
NO./MM
|
NO./MM
|
MM
|
KG/KM
|
kN
|
Ω/km
|
A
|
|
|
Gopher
|
25
|
6/2.36
|
1/2.36
|
7.08
|
72.1
|
9.61
|
1.093
|
126
|
|
|
Rabbit
|
50
|
6/3.35
|
1/3.35
|
10.05
|
214.1
|
18.35
|
0.5426
|
185
|
|
|
Dog
|
100
|
6/4.72
|
1/4.72
|
14.15
|
394.7
|
32.70
|
0.2733
|
278
|
|
|
Wolf
|
150
|
30/2.59
|
7/2.59
|
18.13
|
725.9
|
69.20
|
0.1828
|
355
|
|
|
Dingo
|
150
|
18/3.35
|
1/3.35
|
16.75
|
507.4
|
35.70
|
0.1815
|
349
|
|
|
Lynx
|
175
|
30/2.79
|
7/2.79
|
19.53
|
842.4
|
79.80
|
0.1576
|
386
|
|
Production Process
Packing & Delivery
Packaging Details: packed in wooden drums or steel-wooden drums or as your request.
Delivery Detail: In one week after getting the deposit.
