Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSP
-
Model Number:
-
PB48-96TK,PB48-96ZJ
-
Housing:
-
Aluminium Die Casting
-
Insulator:
-
PBT Material
-
Contact material:
-
Brass Gold Plated
-
Product name:
-
Waterproof Connector
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSP
-
Model Number:
-
PB48-96TK,PB48-96ZJ
-
Housing:
-
Aluminium Die Casting
-
Insulator:
-
PBT Material
-
Contact material:
-
Brass Gold Plated
-
Product name:
-
Waterproof Connector
|

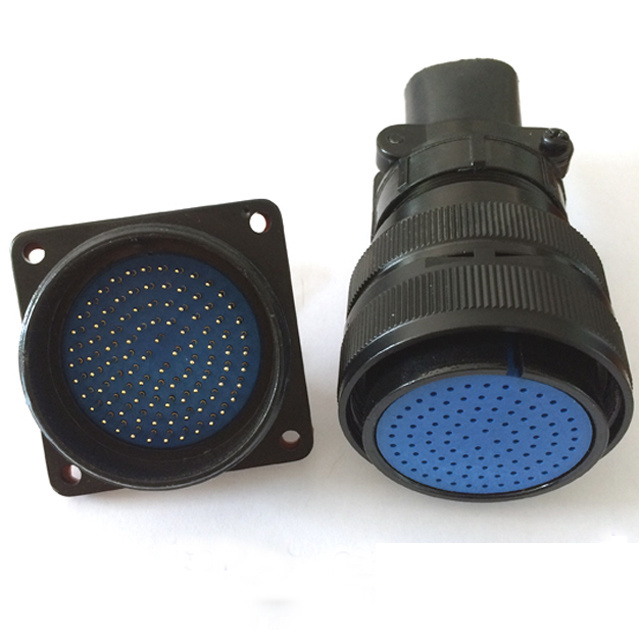

PB series 96pin IP66 waterproof connector
This type is designed and produced by our company.Light weight,many specifications,well-sealed,thread connection are its major features.Its alloy aluminum crust,silver-gilt interface,resistance against corrosion,good electric conductivity and mechanical nigidity so that it can be the ideal substitute of the similar products from the overseas.It can be installed on the panel and can be abutting joint. |
|||||||||||
|
(1) Woring condition:
|
|||||||||||
|
· Environment temperature:sealed-55~+ 70 °C non-sealed-55~+ 50 °C
· Relative humidity:up to 98% when the temperature is + 40 °C · Atmospheric pressure:up to 2Kpa ·Vibration:frequency up to 10~200 Hz when the acceleration is 100M / S 2 ·Impact:frequency up to 40~ 100 m /s when the acceleratio is 250 M / S 2 ·Centrifugal up to 250 M / S 2 |
|||||||||||
|
(2)Main technical conditions
|
|||||||||||
| Rated voltage | |||||||||||
|
|||||||||||
| Rated current | |||||||||||
|
|||||||||||
|
The current is 100% when contact pairs is 1-20
|
|||||||||||
| Contacdt resistance | |||||||||||
|
|||||||||||
|
The total resistance of the socket
|
|||||||||||
| Single separative power | |||||||||||
|
|||||||||||
PB 48 - 96 T K
1 2 3 4 5
1. Name of series: PB series connectors
2. Mounted size :48mm
3. Pin numbers
4. T: Cable plug, Z: Panel receptacle
5. K: female contacts, J: male contacts.
