Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fulree
-
Model Number:
-
F**J5V*A1S
-
Output Frequency:
-
0-400HZ
-
Size:
-
46*27*14mm
-
Weight:
-
35g
-
Efficiency:
-
>95%
-
Case Material:
-
Plastic
-
Working Temperature:
-
-40℃~ 80℃
-
Waterproof:
-
IP68
-
OEM:
-
accept OEM logo/label/manual/packing box
-
Customize:
-
accept customized converter
-
Warranty:
-
12 Months
-
Certification:
-
CE/RoHS
-
Product Name:
-
12V to 5V Step Down Converter
Quick Details
-
Output Current:
-
3A Max
-
Network:
-
no
-
Customized support:
-
Communicable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fulree
-
Model Number:
-
F**J5V*A1S
-
Output Frequency:
-
0-400HZ
-
Size:
-
46*27*14mm
-
Weight:
-
35g
-
Efficiency:
-
>95%
-
Case Material:
-
Plastic
-
Working Temperature:
-
-40℃~ 80℃
-
Waterproof:
-
IP68
-
OEM:
-
accept OEM logo/label/manual/packing box
-
Customize:
-
accept customized converter
-
Warranty:
-
12 Months
-
Certification:
-
CE/RoHS
-
Product Name:
-
12V to 5V Step Down Converter

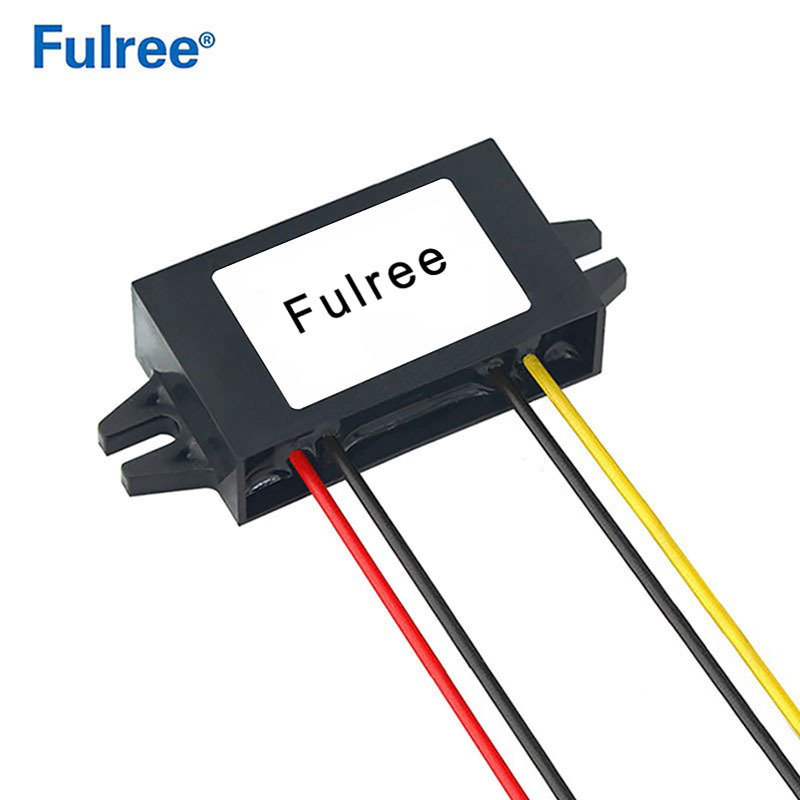

Slim Plastic Housing 12V 24V 36V 48V to 5V 1A 2A 3A DC DC Step Down Converter 12 24 36 48 Volt to 5 Volt Buck Car Phone Charger
|
Product Name |
Fulree DC DC Converter 12V 24V 36V 48V to 5V 3A 15W Max |
|
|
Brand |
Fulree |
|
|
Model No. |
F23J5V1A1S/F23J5V2A1S/F23J5V3A1S / F 35J5V1A1S/ F 35 J5V 2 A1S/F35J5V3A1S / F60 J5V1A1S/ F 60 J5V 2 A1S/F60J5V3A1S |
|
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input (13-14cm) |
||
|
Input Voltage |
DC 12V / DC 12V 24V / DC 12V 24V 36V 48V |
|
|
Input Voltage Range |
DC 8-23V / DC 8-35V / DC 11-60V |
|
|
Output (13-14cm) |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
1A / 2A / 3A Max |
|
|
Output Power |
5W / 10W / 15W Max |
|
|
Conversion Efficiency |
>95% | |
|
Voltage regulation |
±3% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection |
||
|
Output Short-circuit protection |
||
|
Input Reverse Polarity protection |
||
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts | |
|
Certification |
CE/RoHS |
|
|
Case Material |
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
46*27*14mm |
|
|
Product Weight |
35g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
