Quick Details
-
Jacket:
-
xlpe
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hotion
-
Model Number:
-
JBSC-02
-
Size:
-
4mm 6mm
-
Material:
-
Tinned Copper
-
Product name:
-
Solar Pv Cable
-
Conductor:
-
Tinned Copper
-
Color:
-
black or red
-
MOQ:
-
100meters
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Construction
-
Conductor Material:
-
Tinned Copper
-
Jacket:
-
xlpe
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hotion
-
Model Number:
-
JBSC-02
-
Size:
-
4mm 6mm
-
Material:
-
Tinned Copper
-
Product name:
-
Solar Pv Cable
-
Conductor:
-
Tinned Copper
-
Color:
-
black or red
-
MOQ:
-
100meters
Products Description

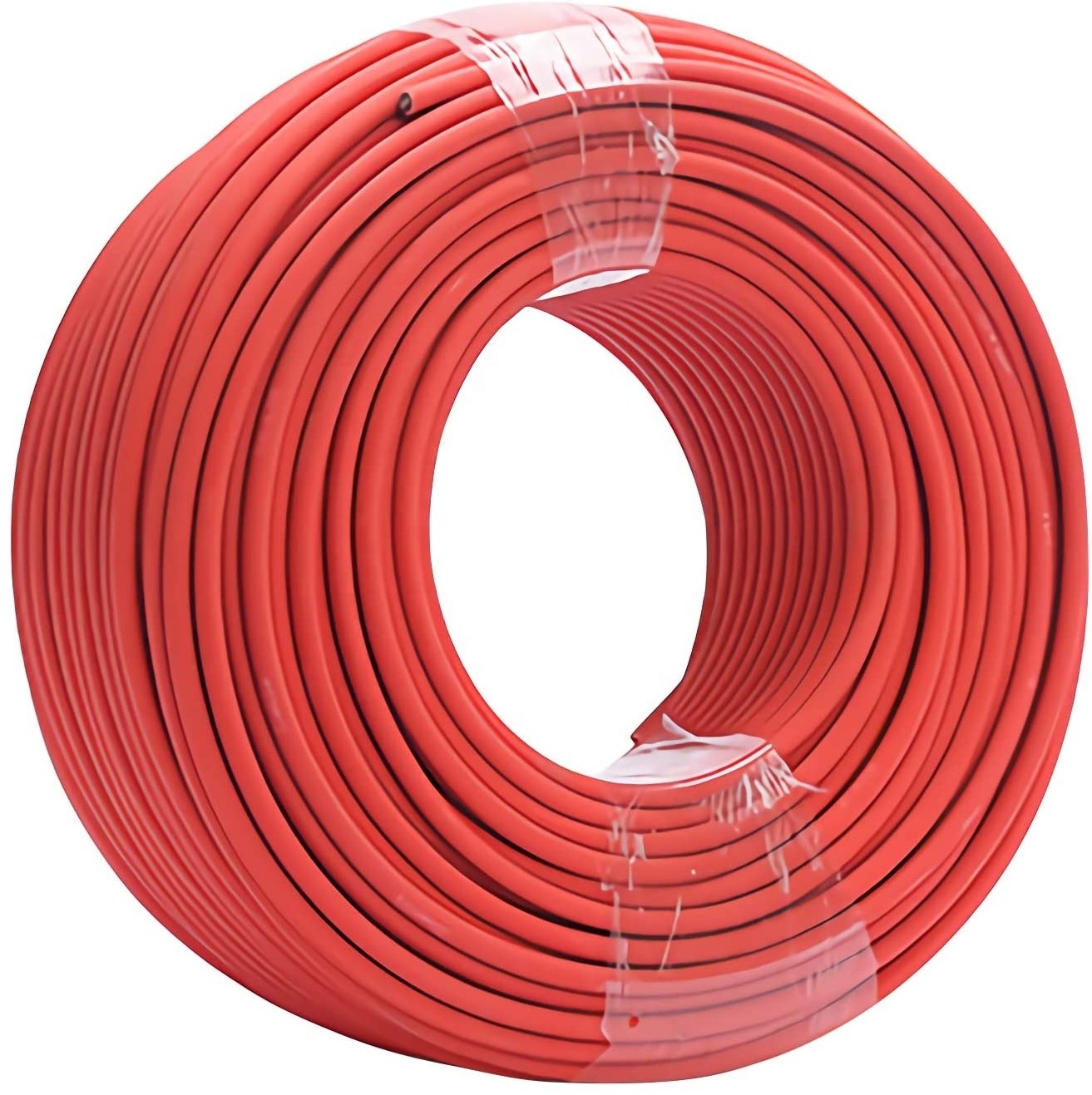

solar photovoltaic DC cable
Product Description
【Tinned Copper Wire】 The solar extension wire is made of tinned copper, working temperatures up to -40°F to 194°F (-40°C to 90°C), and rated voltage:DC1500V, more durable and flexible than other common materials.
【25 Years High-Quality Material Service Time】
100% pure tinned copper wire with low contact resistance and high current and high voltage load capacity. XLPE/XLPO material sheath and insulating material, high and low-temperature resistance, fire and corrosion, anti-ultraviolet, service life up to 25 years.
【TUV certified】 This solar cable meets TUV standards for photovoltaic solar applications and can be used in a variety of environments to ensure circuit safety.
【
Weather Resistant Solar Extension Cable】The cable has an IP67 waterproof rating and UL94 V-0 flame retardant rating, which is durable in outdoor environments, which increases the feasibility of using the cable in severe weather such as rain, snow, and wind, and is suitable for outdoor solar panels Roofs, boats, RVs, or cars powered by solar panels.
【widely used 】 The solar panel extension cable is widely used for solar applications,extend more space between your solar panels and between your solar panel and charge controller.
|
Model
|
|
solar photovoltaic DC cable
|
|
|
|||
|
Rated Voltage
|
|
1000V/1500V DC
|
|
|
|||
|
Rated Currency
|
|
30A
|
|
|
|||
|
Protection Degree
|
|
IP67
|
|
|
|||
|
Ambient Temperature
|
|
-40℃~90℃
|
|
|
|||
|
Insulation Material
|
|
PPO/XLPE
|
|
|
|||
|
Conductor cores
|
|
Single core，double core
|
|
|
|||
|
Jacket color
|
|
red,black
|
|
|
|||
|
Lead Time
|
|
about 25 days
|
|
|
|||
Certifications
Details Images
