Quick Details
-
Warranty:
-
1 years, 1 YEAR
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
PROLEADER
-
Model Number:
-
10411-12-04 ~ 10411-52-24
-
Product name:
-
10411 Metric Male 24 Degree Cone Fitting
-
Material:
-
Stainless Steel 304/316
-
Application:
-
Pipe Lines Connect
-
Certificate:
-
ISO9001 CE
-
MOQ:
-
1 Piece
-
Delivery time:
-
7-15 Days
-
OEM:
-
OEM Services Provided
-
Color:
-
Silver
-
Sample:
-
Sample Freely
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Reducing
-
Head Code:
-
Hexagon
-
Warranty:
-
1 years, 1 YEAR
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
PROLEADER
-
Model Number:
-
10411-12-04 ~ 10411-52-24
-
Product name:
-
10411 Metric Male 24 Degree Cone Fitting
-
Material:
-
Stainless Steel 304/316
-
Application:
-
Pipe Lines Connect
-
Certificate:
-
ISO9001 CE
-
MOQ:
-
1 Piece
-
Delivery time:
-
7-15 Days
-
OEM:
-
OEM Services Provided
-
Color:
-
Silver
-
Sample:
-
Sample Freely

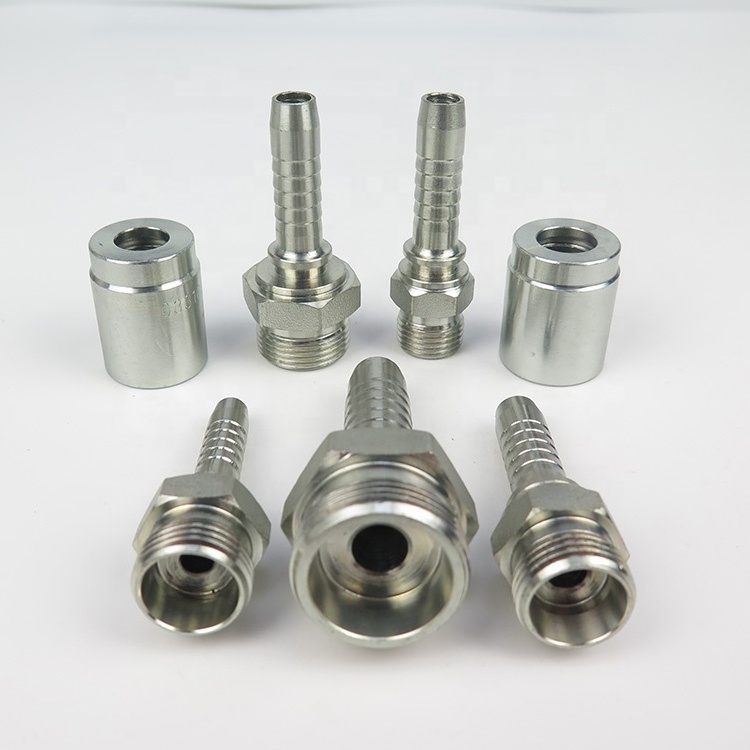

10411 High Quality Metric Male 24 Cone Seat L.T. Hose Tube Fitting For Hydraulic Equipment
10411 Metric Male 24 Degree Cone Hose Fitting
| PART NO. | THREAD E | HOSE BORE (DN) | HOSE BORE (DASH) | DIMENSIONS (C) | DIMENSIONS (S1) | TUBE O.D. |
| 10411-12-04 | M12X1.5 | 6 | 4 | 6 | 10.7 | 14 |
| 10411-12-04C | M12X1.25 | 6 | 4 | 6 | 10.7 | 14 |
| 10411-14-04 | M14X1.5 | 6 | 4 | 8 | 13 | 17 |
| 10411-16-05 | M16X1.5 | 8 | 5 | 10 | 13.5 | 17 |
| 10411-18-06 | M18X1.5 | 10 | 6 | 12 | 13.5 | 19 |
| 10411-20-08 | M20X1.5 | 12 | 8 | 14 | 13.5 | 22 |
| 10411-22-08 | M22X1.5 | 12 | 8 | 15 | 13.5 | 24 |
| 10411-24-08 | M24X1.5 | 12 | 8 | 18 | 13.5 | 27 |
| 10411-26-10 | M26X1.5 | 16 | 10 | 18 | 14 | 27 |
| 10411-27-10 | M27X1.5 | 16 | 10 | 18 | 14 | 30 |
| 10411-30-12 | M30X2 | 20 | 12 | 22 | 18 | 32 |
| 10411-36-16 | M36X2 | 25 | 16 | 28 | 18 | 38 |
| 10411-45-20 | M45X2 | 32 | 20 | 35 | 19 | 46 |
| 10411-52-24 | M52X2 | 38 | 24 | 42 | 19 | 55 |
| Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10412-xx-xx; | ||||||
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
