Quick Details
-
Material:
-
Copper Clad Steel
-
Type:
-
Threaded or Pointed
-
Origin:
-
China
-
Steel Material Grade:
-
Q235
-
Application:
-
Grounding System
-
Copper Thickness:
-
1mm Max
-
ISO:
-
Yes
-
OEM:
-
Yes
-
Yield Strength:
-
About 600N/mm2
-
keyword:
-
Copper bonded grounding rod price
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TuAn
-
Model Number:
-
GRC
-
Material:
-
Copper Clad Steel
-
Type:
-
Threaded or Pointed
-
Origin:
-
China
-
Steel Material Grade:
-
Q235
-
Application:
-
Grounding System
-
Copper Thickness:
-
1mm Max
-
ISO:
-
Yes
-
OEM:
-
Yes
-
Yield Strength:
-
About 600N/mm2
-
keyword:
-
Copper bonded grounding rod price
| Product Parameters |

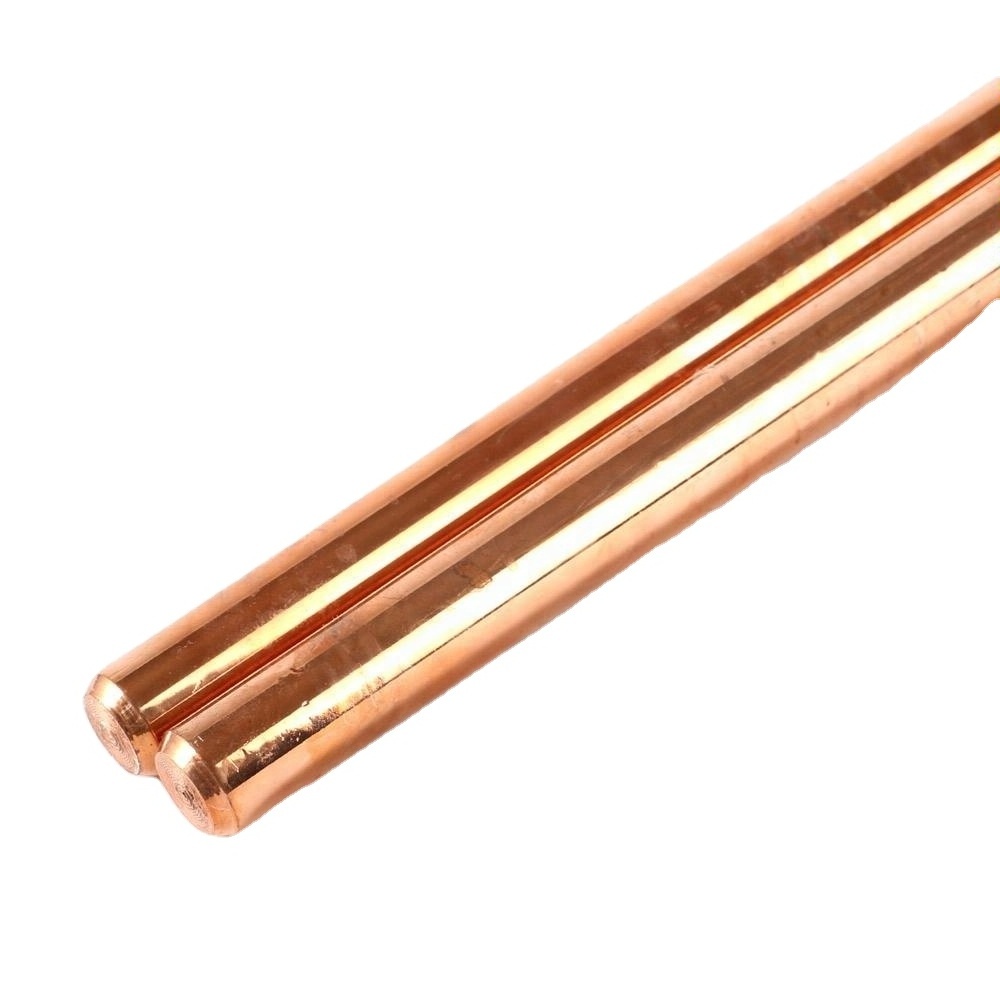

Copper clad steel earthing electrode is m ade of molecularly bonded 99.9% pure electrolytic copper onto a low carbon steel rod Q235. .The steel rod is a cold drawn to the required diameter.and the copper bonded ground rod is highly resistant to corrosion.The steel r od tensile stress is about 600N/mm ², this will help the earth rod driven to great depths.The copper coating is more than 0.254mm at all points and the lifetime more than 30 years .
There are two kinds of copper bonded ground rod: threaded ground rod and pointed ground rod.other type ground rod also can design and produce. For the threaded ground rod ,t he threads are rolled after copper bonding process,and both steel and copper are rolled into the thread,make it very strong.
Connection of the rods using copper threaded coupling. The coupling is made of brass or copper.it also have strong stress. As a Copper Clad Steel earthing Electrode Manufacturer ,we will provide more attractive product .
Product Performance Data
|
Material |
Copper Clad Steel |
|
Copper thickness |
Standard >=0.254mm , Non-standard:0.1-1mm |
|
Tensile strength |
>=600Nm/mm2 |
|
Straightness error |
<=1mm/m |
|
L ife |
>=50years |
|
Type |
Threaded , flat or pointed end |
|
Plasticity of copper layer |
No crack under U ben ding |
Product Table
|
No. |
Dia.(mm) |
Threaded(in) |
Copper layer thickness(mm) |
Length of supply(mm) |
|
1 |
9 |
3/8 |
0.254 |
3000 Max |
|
2 |
12.5 |
1/2 |
0.254 |
|
|
3 |
14.2 |
5/8 |
0.254 |
|
|
4 |
17.2 |
3/4 |
0.254 |
|
|
5 |
23 |
1 |
0.254 |
Main Characters
|
1.The manufacturing method:
|
Copper bonded steel ground rod is cast through an electrolytic process, to 99.9% copper molecules evenly covering the steel core. It is very uniform copper layer and the thickness of 0.254mm or more. Products have conductive properties of copper and the tensile strength of steel. Since the copper layer and the steel material is a binding molecule, the copper layer is not easily peeled off, and will not crack when bent in operation.
|
|
2. Conductivity:
|
Since the copper bonded steel ground rod of the outer copper layer of 99.9% purity electrolytic copper, having a thickness of 0.254mm or more, the conductivity has been tested more than 40%, when the transmission frequency is greater than 1.67MHz, which is fully equivalent to the conductive properties of solid copper.
|
|
3. Corrosion resistance:
|
The surface of the ground rod is 99.9% pure electrolytic copper. Combined with its copper and steel are molecules overcome their electrochemical corrosion, buried in the soil and thus has a strong resistance to corrosion, the service life of over 50 years.
|
|
4. Tensile strength:
|
Copper bonded steel ground rod has conductivity of copper, and steel’s large tensile strength (up to 600N/mm2) characteristics. In construction operations, ground rods can be easily driven into depth of up to 20m or more under the ground. That will reduce a lot of trouble during construction and installation costs.
|
