Quick Details
-
Axle:
-
2 axles , 3 axles compactor garbage truck
-
Dring type:
-
4x2, 6x4 8x4 trash compactor truck
-
Cab:
-
Left hand drive, right hand drive mini garbage truck
-
Emission:
-
Euro II, Euro III, EuroIV, Euro V mini garbage truck
-
Chassis Brand:
-
HOWO, For ISUZU, JAC, Foton, Dongfeng
-
Capacity of the garbage tank:
-
4.5cbm, 5cbm, 6cbm, 7cbm, 8cbm 10cbm etc
-
Color and logo:
-
As your demand waste compactor
Quick Details
-
Place of Origin:
-
Hubei, China
-
Item name:
-
2 axles 4x2 compactor garbage truck
-
Engine:
-
Weichai, chaochai, Commins , Yuchai etc
-
Axle:
-
2 axles , 3 axles compactor garbage truck
-
Dring type:
-
4x2, 6x4 8x4 trash compactor truck
-
Cab:
-
Left hand drive, right hand drive mini garbage truck
-
Emission:
-
Euro II, Euro III, EuroIV, Euro V mini garbage truck
-
Chassis Brand:
-
HOWO, For ISUZU, JAC, Foton, Dongfeng
-
Capacity of the garbage tank:
-
4.5cbm, 5cbm, 6cbm, 7cbm, 8cbm 10cbm etc
-
Color and logo:
-
As your demand waste compactor

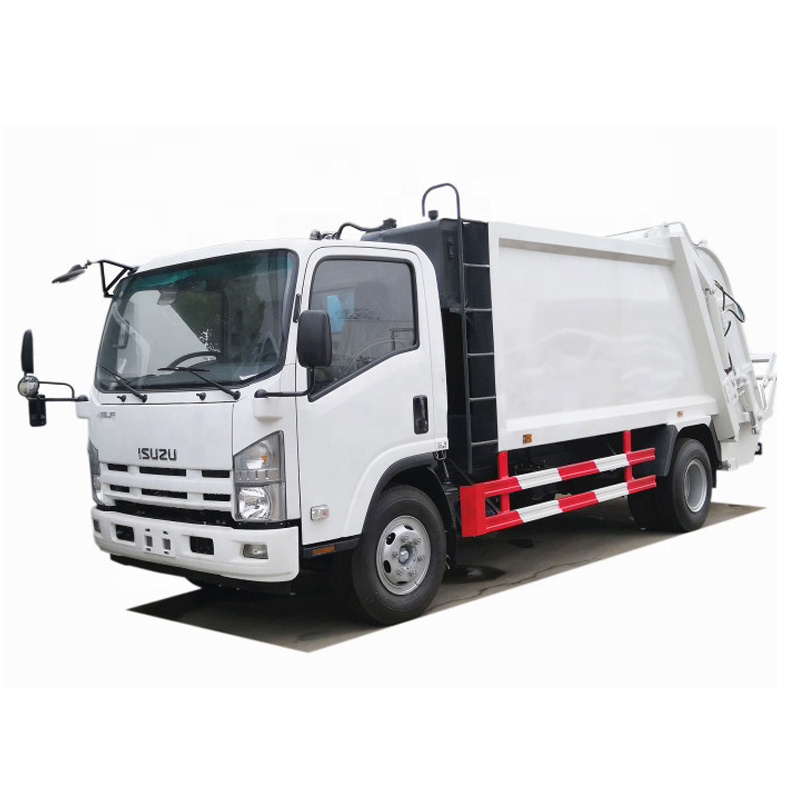

Japanese 10m3 4*2 compactor Garbage compactor Truck waste garbage compression truck price for sale
Features of garbage truck:
Chassis for option: SINOTRUK, Dongfeng, Forland, Beiben , JMC , JAC. etc
Material of the led screen: carbon steel
Axles: 2 axles / 3 axles
Type: compactor garbage truck
Application of garbage truck:
Garbage Compactor truck is the machinery of choice for door to door collection of waste. The collected waste is simultaneously compacted and eventually transported to the dumping site. Compactors have multiple benefits over conventional waste trolleys namely: Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator.
Main advantages of our garbage truck:
1.
Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and realiable.
Paraters of compactor garbage truck
|
ISUZU 4x2 98hp 4.5cbm compressor garbage truck parameters for reference |
||
|
Chassis |
||
|
Chassis model number |
ISUZU 100P chassis ( QL10703HARY ) |
|
|
Cabin |
Brand: ISUZU |
|
|
|
100P single cabin, 4x2 left hand drive |
|
|
|
2 seats , with air conditioner, USB connector radio |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm : 6190*1880*2320 mm |
|
|
|
Wheel base : 33 60 (mm) |
|
|
|
Overhang (front/rear) : 1015/1525 (mm) |
|
|
|
Approach angle: 24 ° |
|
|
|
Departure angle: 16° |
|
|
Weight in KGS |
Curb Weight : 4210 kg |
|
|
|
Payload : 4-6tons |
|
|
Max. driving speed( km/h ) |
90 |
|
|
Engine |
Brand |
ISUZU |
|
|
Model |
4JB1CN , EURO IV |
|
|
Emission |
2771 ml |
|
|
Type |
4-stroke direct injection , 4 -cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power( HP) |
9 8 HP |
|
Gearbox |
ISUZU MSB , 5 Forwards gear & 1 reverse gear |
|
|
Tire |
7 .00-1 6 , 6 pcs+1 spare tire |
|
|
Axle |
Front axles 2~2.5t, rear axle 3~4.8t |
|
|
Garbage box parameters |
||
|
Volume |
4.5 m3 |
|
|
Material |
Carbon steel and high tensile steel |
|
|
Standard equipment |
1 . Dustbin volume: 4.5 m³ 2. hydraulic control device |
|
deails of the compactor garbage truck
