Quick Details
-
Model Number:
-
1/4 6.3mm*14.5mm
-
Product name:
-
Power Steering Hose
-
Material:
-
Synthetic Rubber CSM
-
Color:
-
Black
-
Reinforcement:
-
High Tensile Braided SY
-
Certification:
-
ISO/TS 16949:2009
-
Burst Pressure:
-
65Mpa~85Mpa
-
Standard:
-
SAE J188 MS263-53
-
Temperature:
-
-40℃ ~ +150℃
-
Packing:
-
Plastic Bag+carton+pallet
-
Brand:
-
KEMO
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KEMO
-
Model Number:
-
1/4 6.3mm*14.5mm
-
Product name:
-
Power Steering Hose
-
Material:
-
Synthetic Rubber CSM
-
Color:
-
Black
-
Reinforcement:
-
High Tensile Braided SY
-
Certification:
-
ISO/TS 16949:2009
-
Burst Pressure:
-
65Mpa~85Mpa
-
Standard:
-
SAE J188 MS263-53
-
Temperature:
-
-40℃ ~ +150℃
-
Packing:
-
Plastic Bag+carton+pallet
-
Brand:
-
KEMO

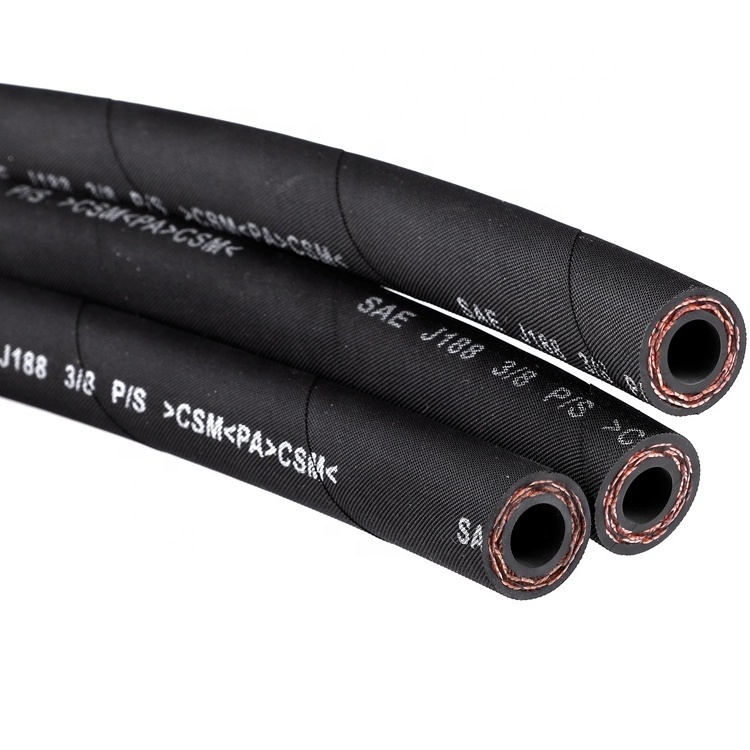

Power Steering Hose
|
Product Name
|
Power Steering Hose
|
|
|
|
|||
|
Standards
|
SAE J188 MS263-53
|
|
|
|
|||
|
Temperature
|
-40℃ ~ +150℃ / -40°F ~ +302°F
|
|
|
|
|||
|
working pressure
|
65-85Map
|
|
|
|
|||
|
Feature
|
High Expansion
|
High Pressure
|
Pulse Resistance
|
Ozone Resistance
|
|||
|
|
Decrease Vibration
|
Reduce System Noise
|
Reduce System Noise
|
|
|||
Specification
|
Power Steering Hose Size List
|
|
|
|
|
|
|||||
|
Inch
|
Specification
|
I.D MM
|
O.D MM
|
Burst Pressure Mpa.
|
Burst Pressure psi.
|
|||||
|
1/4
|
6.3x14.5
|
6.3±0.2
|
14.5±0.3
|
65~85
|
9400~12300
|
|||||
|
5/16
|
8.0x18.0
|
8.0±0.2
|
18.0±0.4
|
65~85
|
9400~12300
|
|||||
|
3/8
|
9.5x18.5
|
9.5±0.3
|
18.5±0.4
|
65~85
|
9400~12300
|
|||||
|
3/8
|
9.5x20.0
|
9.5±0.3
|
20.0±0.4
|
65~85
|
9400~12300
|
|||||
|
13/32
|
9.8x18.5
|
9.8±0.3
|
18.5±0.4
|
65~85
|
9400~12300
|
|||||
|
13/32
|
9.8x19.8
|
9.5±0.3
|
19.8±0.4
|
65~85
|
9400~12300
|
|||||
|
13/32
|
10.0x20.0
|
10.0±0.3
|
20.0±0.5
|
65~85
|
9400~12300
|
|||||
|
33/64
|
13.0x23.0
|
13.0±0.5
|
23.0±0.5
|
65~85
|
9400~12300
|
|||||
CSM SY CSM SY CSM
PRODUCTS DESCRIPTION
KEMO Advantage
(1) Developed new products with many well-known research institutions and testing centers in China.
(2) Research and develop new materials，new products, and new processes.
(3) Ability to test and experiment the performance of products.
Therefore, KEMO can provide OEM, ODM services, provide foreign customers with new product design, development, testing and providing related testing reports as customer's request.
1. Transparent PVC film packing
2. Color woven bag packing ( Blue / White / Green / Yellow)
3. Pallet packing
4. Carton packing
5. Reel packing
Testing Equipment
KEMO Company Testing Advantage:
1. KEMO have our own Laboratory, we can offer Technology Testings as follow:①Bursting Pressure ②Bend Radius ③ Aging Testing ④Temperature (High and Low ) ⑤Volumatic Expansion ⑥Whiper Testing.
2.Developing new products with many well-known research institutions and testing centers in China.
3. KEMO can offer Testing Reports according to customer’s request.
Application
SAE J188 Power Steering Hose use to the vehicles of the power steering system and pressure transfer in the power steering assembly. Power Steering Hose is designed to transfer air，oil, water in cold condition. It performs well with flexible softness under the low temperature. It can provide reliable and safe power steering performance in any circumstances to ensure the vehicle operate easily and Safely.
PACKAGING & SHIPPING
FAQ
Q1. Who are we?
We are based in Hebei, China, start from 2014,sell to Southeast Asia(34.00%),Mid East(27.00%),Eastern Europe(20.00%),Western
Europe(11.00%),North America(8.00%). There are total about 101-200 people in our office.
Q2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3.What can you buy from us?
A/C Hose,Brake Hose,Power Steering Hose,Refrigerator Truck Hose, and Anticorrsive Hose.
Q4. Why should you buy from us not from other suppliers?
KEMO products have unique processes and technical formulas that meet domestic and foreign industry standards and supporting
requirements of OEM. Also has passed IS09001, 3C , DOT certification and other quality certifications, and has advanced equipment.
Q5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
We are based in Hebei, China, start from 2014,sell to Southeast Asia(34.00%),Mid East(27.00%),Eastern Europe(20.00%),Western
Europe(11.00%),North America(8.00%). There are total about 101-200 people in our office.
Q2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3.What can you buy from us?
A/C Hose,Brake Hose,Power Steering Hose,Refrigerator Truck Hose, and Anticorrsive Hose.
Q4. Why should you buy from us not from other suppliers?
KEMO products have unique processes and technical formulas that meet domestic and foreign industry standards and supporting
requirements of OEM. Also has passed IS09001, 3C , DOT certification and other quality certifications, and has advanced equipment.
Q5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
