Quick Details
-
Brand Name:
-
Daytai
-
Name:
-
Optical Closure
-
Type of Closure:
-
Dome
-
Seal Type:
-
Heat shrinkable tube & silicone rubber
-
Protection Grade:
-
IP68
-
Ports:
-
17 ports
-
Fiber Cable Diameter:
-
7~27 mm
-
Splice Tray:
-
8 Core
-
Color:
-
Black
-
Outside dimension (HxD):
-
325*510mm
-
Weight:
-
12kg
Quick Details
-
Type:
-
Racks & Enclosure
-
Model Number:
-
DT-DC917-RSB
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daytai
-
Name:
-
Optical Closure
-
Type of Closure:
-
Dome
-
Seal Type:
-
Heat shrinkable tube & silicone rubber
-
Protection Grade:
-
IP68
-
Ports:
-
17 ports
-
Fiber Cable Diameter:
-
7~27 mm
-
Splice Tray:
-
8 Core
-
Color:
-
Black
-
Outside dimension (HxD):
-
325*510mm
-
Weight:
-
12kg
Cierre de Emplame Caja De Empalme Domo Para Fibra Optica Mufa Fibra

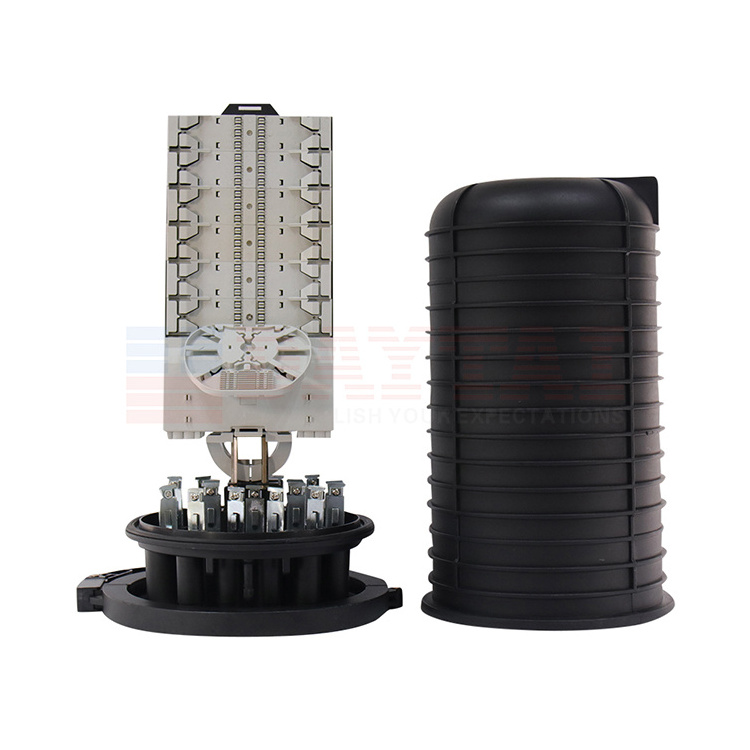

Dome Closure,DT-DC917-RSB,Protection Grade:IP68,Number of ports Total:17 Pieces,Diameter of fiber optic cable:Φ7~Φ27MM,Max.Capacity:576Cores,8 Core Splice Tray,(xCore=x*8Core Splice Tray),Outside Dimension(LxWxH): 325×510MM.Weight:12Kg.Seal Type:Heat shrinkable tube & silicone rubber.
|
Specification
|
|
|
|
Size (mm)
|
Φ325*510
|
|
|
Protection Grade
|
IP68
|
|
|
Cable diameter (mm)
|
Φ7~Φ27
|
|
|
Max splice tray number
|
72
|
|
|
Splice tray capacity (cores)
|
8 (single core)
|
|
|
Max core capacity (cores)
|
576 (single core)
|
|
|
Shock resistance
|
>20N.m
|
|
|
Anti lateral pressure
|
>2000N /10 cm
|
|
|
Weight
|
12Kg
|
|
|
Temperature Range
|
- 20° C 〜+ 60°
|
|
|
Sealing type
|
Heat shrinkable sleeve, silicon rubber
|
|
|
Packing List
|
|
|
|
Case body
|
1 set
|
|
|
Branch card
|
1 pc
|
|
|
Heat shrinkable tube for access cable (small )
|
8 pcs
|
|
|
Heat shrinkable tube for access cable (medium )
|
4 pcs
|
|
|
Heat shrinkable tube for access cable (large )
|
4 pcs
|
|
|
Heat shrinkable tube for access cable (oval )
|
1 pc
|
|
|
Heat shrinkable sleeve (12pcs/bag, L<45mm )
|
Based on the cores
|
|
|
Hose clamp 0 9^ 0 16
|
8 pcs
|
|
|
Hose clamp 0 16^ 0 25
|
4 pcs
|
|
|
Hose clamp 0 19^ 0 29
|
6 pcs
|
|
|
Manual
|
1pc
|
|
|
Wall mounting set
|
1 set
|
|
|
Pole mounting set
|
1 set (optional)
|
|
|
Tin foil
|
5pcs
|
|
|
Grounding wire(L=120mm)
|
1 pc (optional)
|
|
|
Outer hexagonal screw M8*20 (with elastic pad & flat pad & nut)
|
8 sets (304 stainless steel)
|
|
|
Outer hexagonal screw M10*150 (harness)
|
2 cords (304 stainless steel)
|
|
|
M10 hexagonal nut (with elastic pad and flat pad)
|
2 sets (304 stainless steel)
|
|
|
Cotter pin 0 5*25
|
4 sets (304 stainless steel)
|
|
|
Iron expansion screw
|
4 sets
|
|
