Quick Details
-
Brand Name:
-
INNOVACERA
-
Dimension:
-
Length: 60mm Diameter: 3.8mm
-
Ceramic Heater Material:
-
95% alumina
-
Power source:
-
Electric
-
Maximum operation temperature:
-
1000℃
-
Heating Resistance:
-
310Ω±10% (23°C±2°C)
-
VIckers Hardness:
-
12.3Gpa
-
Thermal conductivity (20℃)::
-
18W/(m.K)
-
Coef.of liner thermal expansion:
-
40~800℃
-
After-sales Service Provided:
-
Video technical support, Online support
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
NN-52617R
-
Brand Name:
-
INNOVACERA
-
Dimension:
-
Length: 60mm Diameter: 3.8mm
-
Ceramic Heater Material:
-
95% alumina
-
Power source:
-
Electric
-
Maximum operation temperature:
-
1000℃
-
Heating Resistance:
-
310Ω±10% (23°C±2°C)
-
VIckers Hardness:
-
12.3Gpa
-
Thermal conductivity (20℃)::
-
18W/(m.K)
-
Coef.of liner thermal expansion:
-
40~800℃
-
After-sales Service Provided:
-
Video technical support, Online support

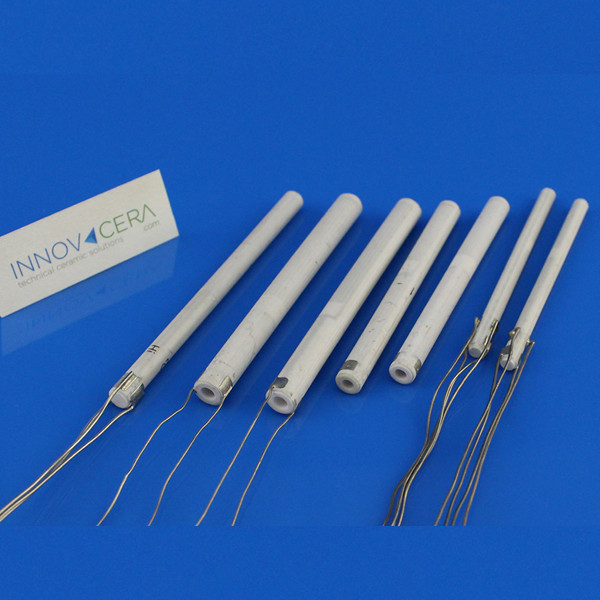

Ceramic Heater for Soldering iron & Station
---
Alumina Ceramic Heaters are produced by implementing unique metallization and ceramic lamination processes. Due to the advanced manufacturing techniques utilized in the electric element, Alumina Heaters can provide higher reliability than ever before.Currently, applications include use as innovative types of heaters in the automotive and semiconductor industries.
1.Based material:
a.white alumina ceramic
b.the content of alumina is no less than 95%.
c.the tungsten slurry is printed on the ceramic tape, laminated by hot pressing, and thensintered under the protection of a hydrogen atmosphere at 1650 ° C
2.Ni-wires:N6 Ni-wires with 0.6mm diameter
3.Brazing material: siliver-copper braging alloy
|
Thermal Properties of Rod type Heater
|
|
|
||
|
Item
|
Unit
|
Value
|
||
|
Material
|
≥96% Alunima Ceramic
|
|
||
|
Size (mm)
|
L60,Dia3.8 mm
|
|
||
|
Density
|
g/cm3
|
＞3.7
|
||
|
Voltage
|
V
|
110-220V
|
||
|
Resistance
|
Ω
|
50-700Ω
|
||
|
Flexural Strength
|
MPa
|
＞300
|
||
|
Thermal Conductivity
|
W/(m.K)
|
≥25
|
||
|
Insulation Resistance
|
MΩ
|
＞100
|
||
|
Temperature
|
℃
|
500
|
||
Dimension
---
|
Part No.
|
Specification(mm)
|
Voltage
|
Heating Resistance
|
|
AH60790301
|
L60*φ3.8mm
|
24VAC
|
3.0±0.3
|
|
AH60790364
|
L60*φ3.8mm
|
220VAC
|
140±10%
|
|
AH60790331
|
L60*φ4.3mm
|
24VAC
|
1.75±0.25
|
|
AH60790308
|
L60*φ3.8mm
|
110VAC
|
310Ω±10%
|
|
AH60790312
|
L70*φ4.0mm
|
110VAC
|
125Ω±10%
|
|
AH60790313
|
L70*φ4.0mm
|
110VAC
|
175Ω±10%
|
|
AH60790309
|
L80*φ5.0mm
|
100VAC
|
37Ω±15%
|
Advantage
---
2.Energefficient,super fast heating-up and high efficient thermal conductivity.
3.Excellent insulation and dielectric strength.
4.Sensor resistance is liner changing along with the temperature rising of heater.
5.Good sensitivity.
6.Safe product which contains no harmful material,i.e.be in line with intermatioal environmental protection standards.
We are producing High Quality Hakko A1321 24V 60W Heating Element for 936 Soldering Station with the advantages of
energy-efficient,long lifetime,high insulation,super fast heatin up and eco-friendly.
3.Excellent insulation and dielectric strength.
4.Sensor resistance is liner changing along with the temperature rising of heater.
5.Good sensitivity.
6.Safe product which contains no harmful material,i.e.be in line with intermatioal environmental protection standards.
Application
---
We are producing High Quality Hakko A1321 24V 60W Heating Element for 936 Soldering Station with the advantages of
energy-efficient,long lifetime,high insulation,super fast heatin up and eco-friendly.
