Quick Details
-
Mold Height(mm):
-
150 - 450 mm
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
249 cm³
-
Injection Rate (g/s):
-
125 g/s
-
Injection Weight (g):
-
227 g
-
Screw Speed (rpm):
-
0 - 224 rpm
-
Screw diameter (mm):
-
42 mm
-
Screw L/D Ratio:
-
22
-
Weight (KG):
-
3300 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
SLA138
-
Brand Name:
-
SAILAI
-
Power (kW):
-
22.3 kW
-
BOUNDARY DIMENSION(L*W*H):
-
4.4*1.1*2 m
-
MAX.PUM PRESURE:
-
16MPA
-
SERVO MOTOR POWER:
-
15KW
-
HEATER POWER:
-
7.3KW
-
HEATING SECTION:
-
3+1
-
Oil tank capacity:
-
200L
-
Dimension:
-
4.4X1.1X2 m
-
Marketing Type:
-
New Product 2022
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
420mm
-
Distance between Tie Bars(Height)(mm):
-
420mm
-
Plasticizing Capacity(g/s):
-
125
-
Mold Height(mm):
-
150 - 450 mm
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
249 cm³
-
Injection Rate (g/s):
-
125 g/s
-
Injection Weight (g):
-
227 g
-
Screw Speed (rpm):
-
0 - 224 rpm
-
Screw diameter (mm):
-
42 mm
-
Screw L/D Ratio:
-
22
-
Weight (KG):
-
3300 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
SLA138
-
Brand Name:
-
SAILAI
-
Power (kW):
-
22.3 kW
-
BOUNDARY DIMENSION(L*W*H):
-
4.4*1.1*2 m
-
MAX.PUM PRESURE:
-
16MPA
-
SERVO MOTOR POWER:
-
15KW
-
HEATER POWER:
-
7.3KW
-
HEATING SECTION:
-
3+1
-
Oil tank capacity:
-
200L
-
Dimension:
-
4.4X1.1X2 m
-
Marketing Type:
-
New Product 2022

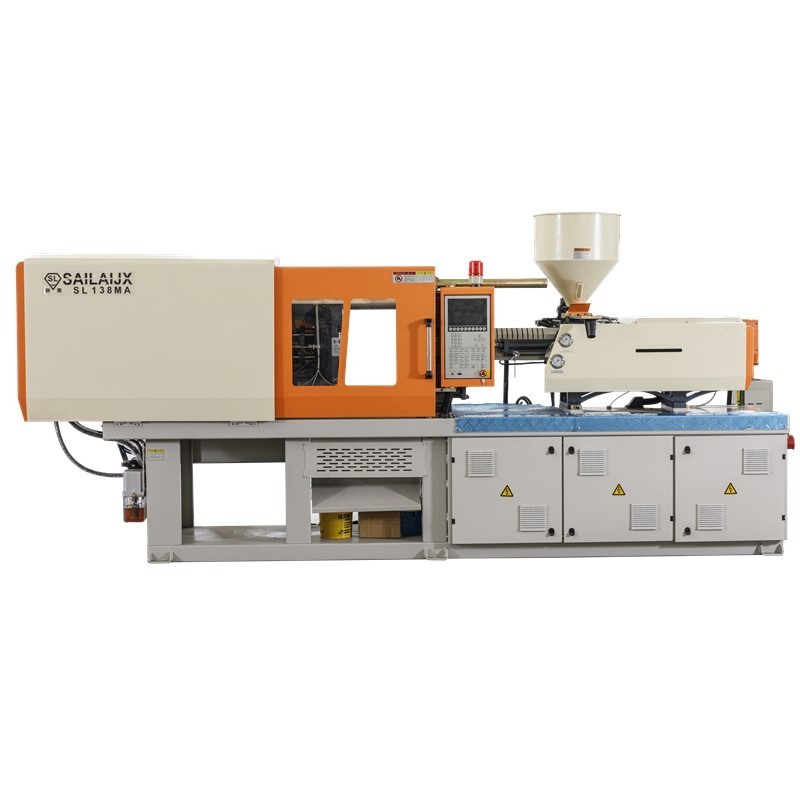

138ton 140ton injection molding machine high precision plastic manual injection mold molding machine
|
MACHINE MODEL
|
SLA108
|
|
|
||
|
INJECTION UNIT
|
A
|
B
|
C
|
||
|
SCREW DIAMETER （MM）
|
38
|
42
|
45
|
||
|
SCREW L/D RATIO （L/D）
|
21.9
|
19.8
|
18.5
|
||
|
INJECTION PRESSURE（Mpa）
|
209
|
171
|
149
|
||
|
SHOT VOLUME（CM³）
|
204
|
249
|
286
|
||
|
INJECTION WEIGHT (G)
|
186
|
227
|
261
|
||
|
INJECTION RATE(CM³/S)
|
102
|
125
|
143
|
||
|
SCREW SPEED(RPM)
|
229
|
|
|
||
|
INJECTION STROKE(MM)
|
180
|
|
|
||
|
CLAMPING UNIT
|
|
|
|
||
|
CLAMPING FORCE(KN)
|
1380
|
|
|
||
|
TOGGLE STROKE(MM)
|
360
|
|
|
||
|
SPACE BETWEEN TIE-BARS(MM)
|
420X420
|
|
|
||
|
MAX.MOLD HEIGHT(MM)
|
450
|
|
|
||
|
MIN.MOLD HEIGHT(MM)
|
150
|
|
|
||
|
EJECTOR STROKE(MM)
|
120
|
|
|
||
|
EJECTOR TONNAGE(KN)
|
38
|
|
|
||
|
OTHERS
|
|
|
|
||
|
MAX.PUMP PRESSURE（Mpa）
|
16
|
|
|
||
|
SERVO MOTOR POWER(KW)
|
15
|
|
|
||
|
HEATER POWER(KW)
|
7.3
|
|
|
||
|
HEATING SECTION(part)
|
3+1
|
|
|
||
|
OILTANK CUBAGE(L)
|
200
|
|
|
||
|
MACHINE DIMENSIONS(M)
|
4.4X1.1X2
|
|
|
||
|
MACHINE WEIGHT(T)
|
3.26
|
|
|
||
