Quick Details
-
Control System Brand:
-
Cypcut/Beckoff
-
Cutting Thickness:
-
0.2-30mm
-
Control Software:
-
CypCut
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YoSoon
-
Weight (KG):
-
210 KG
-
Warranty of core components:
-
2-3 years
-
Core Components:
-
Laser Source
-
Product name:
-
Fiber Laser Cutting Machine
-
Laser source:
-
IPG/ Raycus/Max
-
Laser head:
-
YoSoon
-
Working area:
-
1500mmX3000mm
-
Marking material:
-
SS CS Aluminum Metal Plastic
-
Control system:
-
Cypcut/Beckoff
-
Type:
-
Fiber Lasr Cutting
-
Keyword:
-
laser cutting machine fiber
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
140m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut/Beckoff
-
Cutting Thickness:
-
0.2-30mm
-
Control Software:
-
CypCut
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YoSoon
-
Weight (KG):
-
210 KG
-
Warranty of core components:
-
2-3 years
-
Core Components:
-
Laser Source
-
Product name:
-
Fiber Laser Cutting Machine
-
Laser source:
-
IPG/ Raycus/Max
-
Laser head:
-
YoSoon
-
Working area:
-
1500mmX3000mm
-
Marking material:
-
SS CS Aluminum Metal Plastic
-
Control system:
-
Cypcut/Beckoff
-
Type:
-
Fiber Lasr Cutting
-
Keyword:
-
laser cutting machine fiber
Yosoon high power laser cutting machine metal and non metal pipe laser cutting machine co2
|
Product Name
|

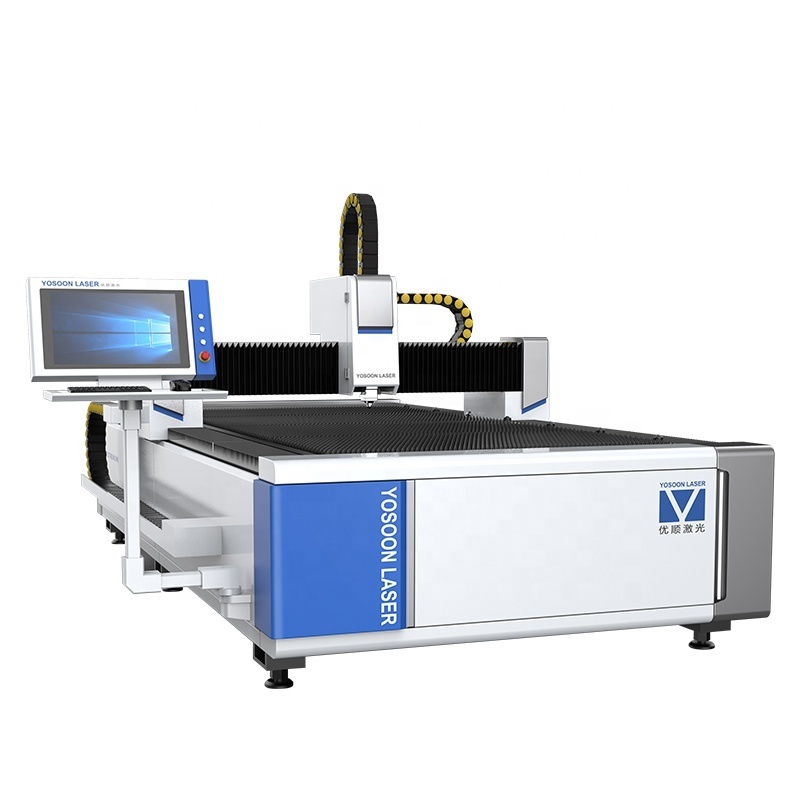

Yosoon high power 1KW-6KW cnc laser cutting machine metal new laser sheet metal cutting machine
|
|
|
||
|
Brand
|
Yosoon
|
|
|
||
|
Laser power
|
500W/750W/1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W
|
|
|
||
|
Total Weight
|
3-8T
|
|
|
||
|
Maximum Cutting Speed
|
140m/min
|
|
|
||
|
X/Y Positioning Accuracy
|
±0.03mm
|
|
|
||
|
Working voltage
|
380V/50Hz
|
|
|
||
Column beam section
Single platform bed display
motor
Product Overview
Product introduction:
YS Thor series high-speed and high-power fiber laser cutting machine integrates the latest generationof high-efficieny ber lasers Aiming at the market ain poins f ownd machine tools with slow air movement.low hole cutting efficiency, and machine tool performance that cannot show the advantages of high-powerlasers, the third-generation gantry-type N machine tool is independently optimized and designed, with highcutting efficiency, strong ability, and low operating cost. The machine body is reliable and stable, easy to operateand intellgent the machine bed adopts a high-strength monolithic welded body, which has undergone multiplehigh-temperature annealing failure treatments, and has been precision processed by a large gantry bed withgood rgi an sabil os at m nm am And houh aand eat reatment technology it hasthe advantages of high strength, light weight, good rigidity, etc. it is operated by imported high-speed rackand pinion transmission, with high precision and fast speed the main and auxiliary bed adopts parallel exchange,which can be exchanged within 1 High efen, t s a sha too for thin plate. Mainly for high-speedprecision cutting of metal plates below 50mm.
Technical features：
The machine adopts a high-strength integrally welded body , which is annealed at high temperature to eliminatetress without deformation；
- Imported high-precision ball screw / pinion and rack drive , high-precision linear guide rail ；
- Driven by imported servo motor , equipped with imported high rigidity precision reducer ；
-The machine tool is equipped with an automatic lubrication device , and the cutting area is equipped with a dustand smoke exhaust device ；
- Laser modular structure , high performance , maintenance-free；
- Professional cutting software is easy to operate , convenient and flexible and can design various graphics and text cutting at will.
FEATURES AT A GLANCE
Enclosure Laser Cutting Machine
Sheet Laser Cutting Machine
Sheet and Tube Dual Use Laser Cutting Machine
Laser Cutting Machine with Exchange Platform
Applicable Materials
carbon steel, stainless steel, galvanized steel, colored steel, electrolytic steel,aluminum sheet, aluminum alloy, brass, red copper, manganese steel, silicon steel, titanium sheet and other metal materials
Applicable Industries
Applicable Industries: kitchen appliance, sheet metal cabinet, mechanical equipment, hardware lighting, doors and Windows manufacturing, advertising signs, automotive accessories, decoration, ship aviation, medical equipment, mining equipment, metal processing.
