Quick Details
-
Model Number:
-
GPS100
-
Max. Current:
-
16A
-
Max. Working Pressure:
-
10-1500Pa
-
Application:
-
water heaters/ air conditioner
-
Product name:
-
air pressure switch
-
Color:
-
Black/White
-
Certification:
-
ENEC/CQC
-
Pressure Range:
-
10-1500Pa
-
Switch Rating:
-
0.1A-16A, 125/250V
-
Circuit:
-
SPDT/SPST-NC/SPST-NO
-
Temperature:
-
-40~+90℃
-
Media:
-
air
-
Type:
-
micro switch
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Greetech
-
Model Number:
-
GPS100
-
Max. Current:
-
16A
-
Max. Working Pressure:
-
10-1500Pa
-
Application:
-
water heaters/ air conditioner
-
Product name:
-
air pressure switch
-
Color:
-
Black/White
-
Certification:
-
ENEC/CQC
-
Pressure Range:
-
10-1500Pa
-
Switch Rating:
-
0.1A-16A, 125/250V
-
Circuit:
-
SPDT/SPST-NC/SPST-NO
-
Temperature:
-
-40~+90℃
-
Media:
-
air
-
Type:
-
micro switch
Product Description

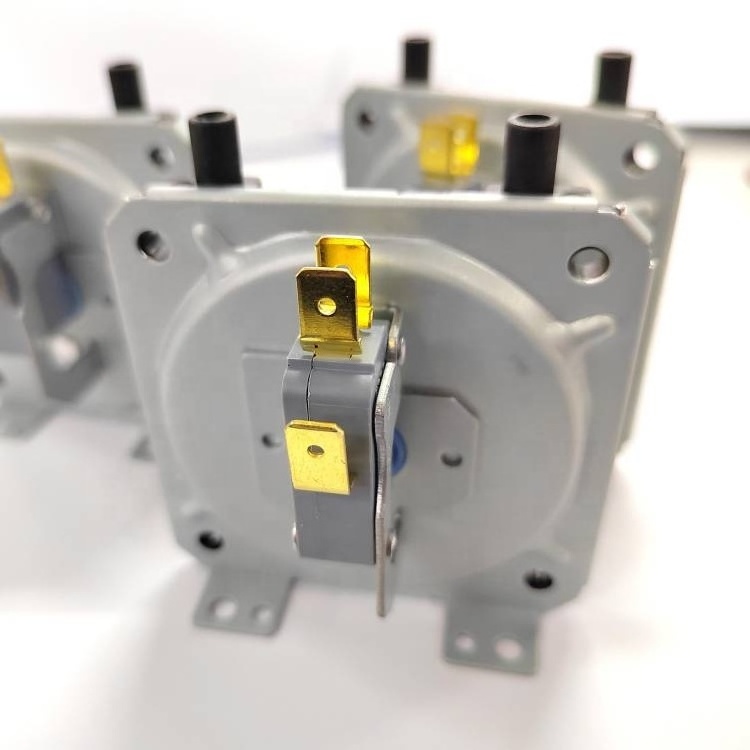

GPS100 Air Pressure Switch
Operating Pressure Range: 25-1500Pa
Switching Pressure Range: 10Pa Min.
Application: Boilers, water heaters, HVAC, other industrial equipments
|
Set Point
|
10-1500Pa
|
|
Operating Pressure Range
|
25-1500Pa
|
|
Switching Pressure Range
|
10Pa Min.
|
|
Maximum Pressure
|
4000Pa
|
|
Rating
|
0.1A 125/250VAC, 3A 125/250VAC
5A 125/250VAC, 16A 125/250VAC
|
|
Circuit Configuration
|
SPDT ; SPST-NO ; SPST-NC
|
|
Operating Temperature
|
-40~+90℃
|
