Quick Details
-
Brand Name:
-
SUNRISE
-
Fork Length:
-
630mm
-
Fork Width:
-
80mm
-
Overall Dimensions:
-
1500*950*2060mm
-
Weight (KG):
-
500 kg
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Free spare parts
-
Product Name:
-
Electric Battery Operated Drum Rotate Stacker With Ce Certification
-
Capacity:
-
500kgs
-
Usage:
-
Oil drum transportation
-
Mast:
-
2 Stage/3 Stage
-
Load Center:
-
500 Mm
-
Weight:
-
230kg
-
Wheels:
-
Rubber Wheel
-
Turning Radius:
-
2240mm
Quick Details
-
Min. Lifting Height:
-
300mm
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRISE
-
Fork Length:
-
630mm
-
Fork Width:
-
80mm
-
Overall Dimensions:
-
1500*950*2060mm
-
Weight (KG):
-
500 kg
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Free spare parts
-
Product Name:
-
Electric Battery Operated Drum Rotate Stacker With Ce Certification
-
Capacity:
-
500kgs
-
Usage:
-
Oil drum transportation
-
Mast:
-
2 Stage/3 Stage
-
Load Center:
-
500 Mm
-
Weight:
-
230kg
-
Wheels:
-
Rubber Wheel
-
Turning Radius:
-
2240mm

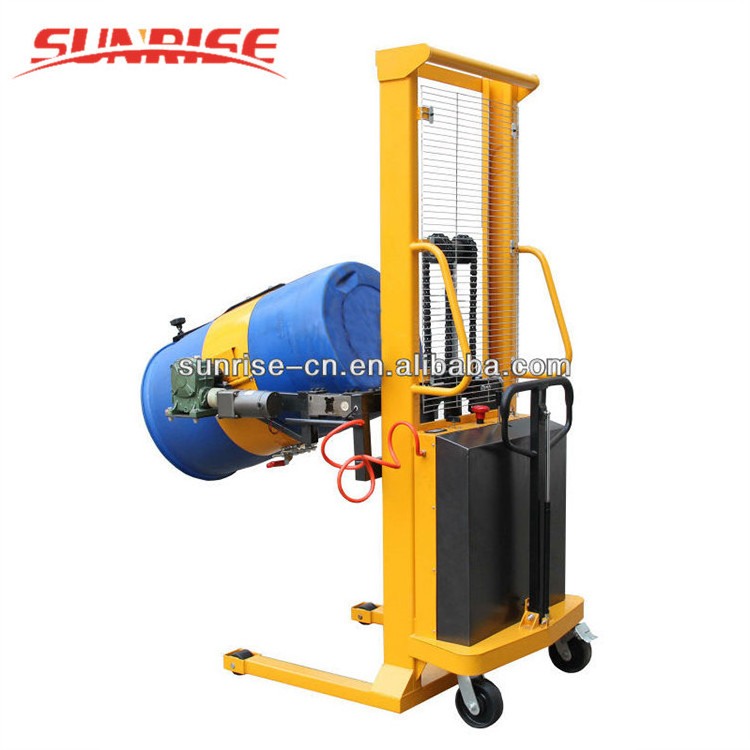

Manual/Electric rotate drum stacker with scale
- Special design for handling all size of drums.
- All electric control,ideal for lifting,rotating and stacking drum or other round goods such as paper roll.
- Ride-on-platform driver,stepless drive speed control,three separate hydraulic hand controls.
- Easy and convenient to operate.
- Can rotate 180 degree.
- CE and ISO certificates.
| Model | YL500A-1 | YL500B | YL500B-1 | |
| capacity | kg | 500 | 500/450 | 500/450 |
| N.W. | kg | 250 | 250 | 225 |
| Electric lift | mm | yes | yes | yes |
| Electric rotate | yes | yes | yes | |
| Weight scale | mm | yes | yes | |
| Front wheel size | mm | Φ80x60 | Φ80x60 | Φ80x60 |
| Back wheel size | mm | Φ150×50 | Φ150×50 | Φ150×50 |
| Front leg width | mm | 630/810 | 630/810 | 630/810 |
| Front leg length | mm | 630 | 630 | 630 |
| Overall size | mm | 1500*950*2060 | 1500*950*2060 | 1500*950*2060 |
| Turning radius | mm | 1750 | 1750 | 1750 |
| LIfting motor | kw/h | 1.5 | 1.5 | 1.5 |
| Battery | v/ah | 12/120 | 12/120 | 12/120 |
| Charger | v | 12 | 12 | 12 |
| scale charger | v | 6 | ||
| Lifting height | mm | 1450 | 1450/2450 | 1450/2450 |
| Lifting speed | mm/s | 120 | 120 | 120 |
| Rotate speed | 180°/30s | 180°/30s | 180°/30s |
YL500A-1 Electric rotate
YL500A-1 electric rotate with Scale
YL500B electric rotate
YL500B-1 electric rotate with Scale
| Model | YL500C | YL500C-1 | |
| capacity | kg | 500 | 500 |
| N.W. | kg | 245 | 245 |
| Electric lift | mm | yes | yes |
| Manual rotate | yes | yes | |
| Weight scale | mm | yes | |
| Front wheel size | mm | Φ80x60 | Φ80x60 |
| Back wheel size | mm | Φ150×50 | Φ150×50 |
| Front leg width | mm | 630/810 | 630/810 |
| Front leg length | mm | 630 | 630 |
| Overall size | mm | 1500*950*2100 | 1500*950*2100 |
| Turning radius | mm | 1750 | 1750 |
| LIfting motor | kw/h | 1.5 | 1.5 |
| Battery | v/ah | 12/120 | 12/120 |
| Charger | v | 12 | 12 |
| scale charger | v | 6 | |
| Lifting height | mm | 1450 | 1450 |
| Lifting speed | mm/s | 120 | 120 |
YL500C Manual rotate
YL500C Manual rotate with scale
| Model | YL500D-1 | |
| capacity | kg | 500 |
| N.W. | kg | 245 |
| Electric lift | mm | yes |
| Manual rotate | yes | |
| Weight scale | mm | yes |
| Front wheel size | mm | Φ80x60 |
| Back wheel size | mm | Φ150×50 |
| Front leg width | mm | 630/810 |
| Front leg length | mm | 630 |
| Overall size | mm | 1500*950*2100 |
| Turning radius | mm | 1750 |
| LIfting motor | kw/h | 1.5 |
| Battery | v/ah | 12/120 |
| Charger | v | 12 |
| scale charger | v | 6 |
| Lifting height | mm | 1450 |
| Lifting speed | mm/s | 120 |
YL500D Manual rotate
YL500D-1 Manual rotate with scale
....
