Quick Details
-
Model Number:
-
WTPC101
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

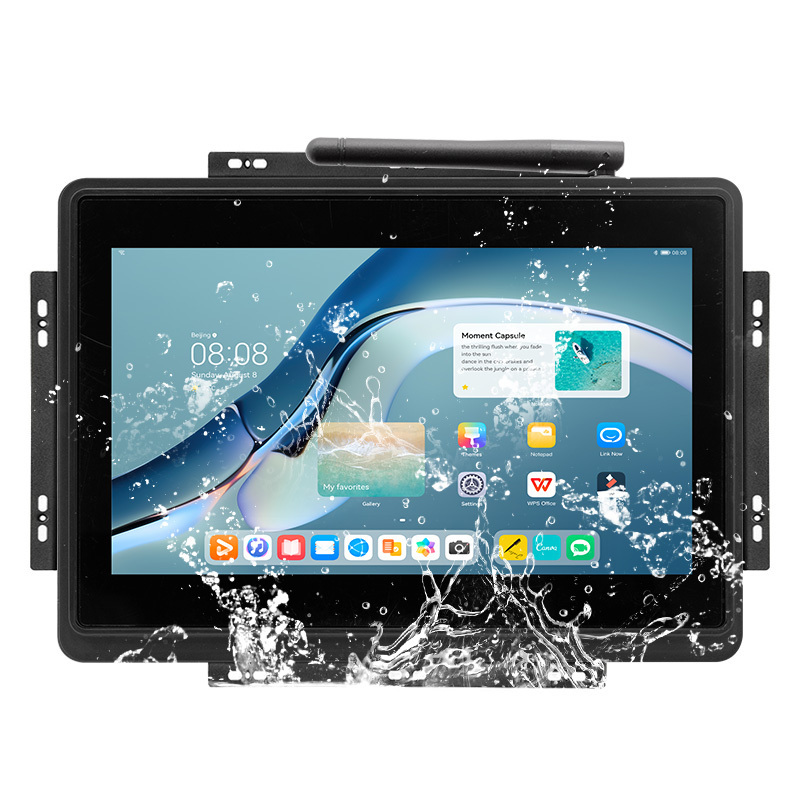

10.1 pcap all-in- ones PC intel core desktop mini industrial comput
-
Aspect ratio:
-
16:10
-
CPU-Android:
-
RK3188/RK3288
-
Hard disk:
-
32G/64G/256G/500G
-
Operating OS:
-
Win7/8/10; Linux/Andriod
-
Brightness:
-
500cd/m2(UP1500cd/m2)
-
Touch Screen:
-
Capacitive Touch Screen
-
Material:
-
Aluminum alloy enclosure
-
Certification:
-
RoHS/CE
Quick Details
-
Display resolution:
-
1280*800
-
Screen Size:
-
10.1"
-
Brand Name:
-
WINTOUCH
-
Model Number:
-
WTPC101
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
10.1 pcap all-in- ones PC intel core desktop mini industrial comput
-
Aspect ratio:
-
16:10
-
CPU-Android:
-
RK3188/RK3288
-
Hard disk:
-
32G/64G/256G/500G
-
Operating OS:
-
Win7/8/10; Linux/Andriod
-
Brightness:
-
500cd/m2(UP1500cd/m2)
-
Touch Screen:
-
Capacitive Touch Screen
-
Material:
-
Aluminum alloy enclosure
-
Certification:
-
RoHS/CE
Product Parameters
|
PC System
|
|
|
|
CPU
|
Android-RK3128/RK3288
|
|
|
Momory DDR3
|
1G/2G / 4G / 8G
|
|
|
Storage (Hard disk)
|
8G/16G...
|
|
|
Audio
|
Realtek ALC662 6 sound channel
|
|
|
Network
|
1xRTL811E gigabit network card
|
|
|
Driver Support
|
Window; Linux; Android
|
|
|
LCD Panel
|
|
|
|
IP rated front panel
|
IP65
|
|
|
Screen diagonal (Inch/cm)
|
10.1inch/25.65
|
|
|
Display active screen size
|
21.70x13.60
|
|
|
Aspect ratio
|
16:10
|
|
|
Physical resolution
|
1280x800 (MAX:1920*1024)
|
|
|
Colours displayed
|
16.7M
|
|
|
Brightness (cd/m2)
|
550 (up 1500)
|
|
|
Contrast
|
800:1
|
|
|
Typical reaction time
|
10/15 (ms)
|
|
|
Visual Angle
|
170/170
|
|
|
Backlight Lifetime (hours)
|
|
|
|
Touch Panel
|
|
|
|
Touch Technology
|
Projected Capacitive 10-point Multitouch
|
|
|
Touch Connector
|
USB
|
|
|
Touch Panel Drivers
|
Window; Linux; Android
|
|
|
Touch Life (Contacts)
|
Unlimited
|
|
|
Surface Hardness
|
7H
|
|
|
Operation / Mechanical
|
|
|
|
Operating Temperature
|
-10 ~ +65 (°C)
|
|
|
Humidity Range (RH)
|
10%-90%
|
|
|
Net weight (kg)
|
1.7
|
|
|
Housing material
|
Aluminium
|
|
|
Housing (cm) LxWxH
|
26.00x18.00x5.01
|
|
|
Mounting
|
VESA 100/ 75
|
|
|
External Connectors
|
|
|
|
2*USB
|
1*RS232/RS48
|
|
|
1*DC
|
1*LAN
|
|
|
1*Line-out
|
1*Mic-in
|
|
|
1*HDM.I
|
1*VGA
|
|
