Quick Details
-
Size:
-
4000x2500x1450 mm
-
Place of Origin:
-
Shandong, China
-
Trailer type:
-
dolly trailer
-
Loading capacity:
-
60T
-
material:
-
Carbon steel Q345B
-
axle info:
-
tri-axle, FUWA brand new axles
-
Suspension info:
-
mechanical steel leaf spring suspension
-
tire info:
-
12 pcs of 12R22.5
-
Braking System:
-
dual line air brake system
-
OE NO.:
-
37184546873355168
-
Certification:
-
CCC, ISO, BV
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60T
-
Brand Name:
-
PLY
-
Size:
-
4000x2500x1450 mm
-
Place of Origin:
-
Shandong, China
-
Trailer type:
-
dolly trailer
-
Loading capacity:
-
60T
-
material:
-
Carbon steel Q345B
-
axle info:
-
tri-axle, FUWA brand new axles
-
Suspension info:
-
mechanical steel leaf spring suspension
-
tire info:
-
12 pcs of 12R22.5
-
Braking System:
-
dual line air brake system
-
OE NO.:
-
37184546873355168
-
Certification:
-
CCC, ISO, BV
|

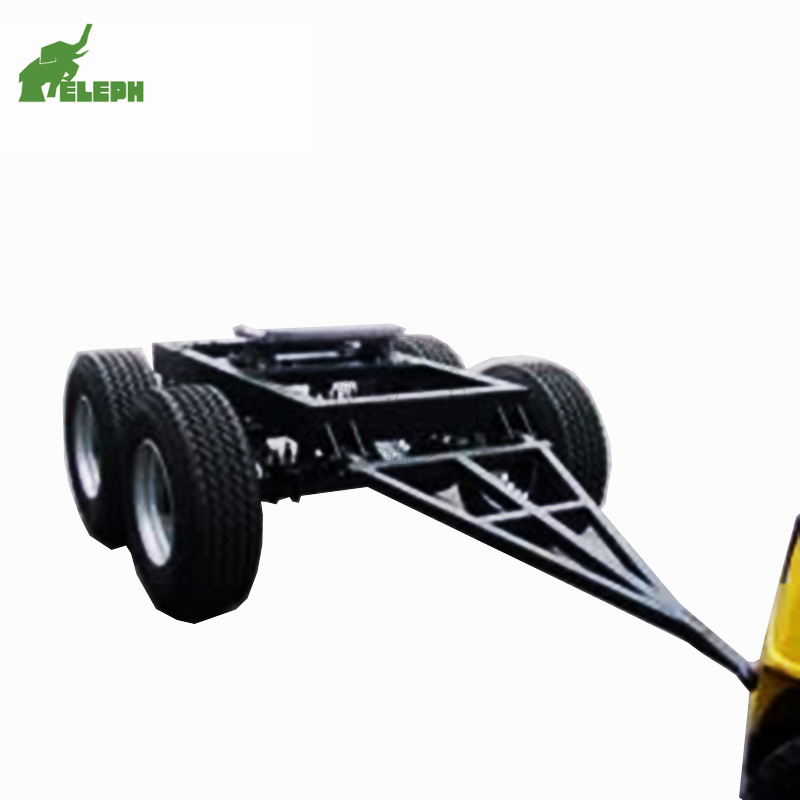

Heavy Duty Machinery Transport Dolly Trailer |
|||||
|
Model |
ALP 9350 LBST |
||||
|
Dimension(Optional) |
Axle N o. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
|
Dimension Made by Customer Machine Size, (contact supplier for more) |
1 |
15 |
4 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
|
2 |
40 |
8 |
|||
|
3 |
60 |
12 |
|||
|
4 |
80 |
16 |
|||
|
Manufacture |
Qingdao Eleph Industry & Trade Co., Ltd |
||||
|
Wheel Base (mm) |
1310 |
||||
|
leaf-spring Pcs |
10 |
||||
|
Axle |
13/16/18 T |
||||
|
Suspension |
Heavy Duty Mechanic Suspension with Leaf Springs |
||||
|
Main Beam Material |
Q 345 B manganese plates, automatic submerged arc welded |
||||
|
Brake System |
Dual line braking system with automatic braking system/chambers |
||||
|
Brake Air Chamber |
Double Model |
||||
|
Kingpin |
2' or 3.5' Interchangeable |
||||
|
Landing gear |
28T loading capacity with 80T static lifting capacity. |
||||
|
Platform |
4-6 mm diamond steel plate |
||||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
||||
|
Brake Air Chamber |
Four double and two single chamber |
||||
|
Electrical System |
24V, 7 core socket, lights according to European standards. |
||||
|
Mainbeam Size |
Upper plate |
14mm |
|||
|
Lower plate |
16mm |
||||
|
Mid Web |
8 mm |
||||
|
Height |
500-520mm |
||||
|
Tool Box |
1 box of standard tools |
||||
|
Spare tire carrier |
2 sets |
||||
|
Color and Logo |
Depends on the buyer’s requirement. |
||||
|
Pin Height |
According to the height of the tractor saddle. |
||||
|
Painting |
Three coats painting; Any color will be available |
||||
|
Other Specifications |
The frame can be flat plate style and skeleton style.Twist lock settings installed 12 pics , 8 pics , and 4 pcs to satisfy the containers with different sizes for convince. |
||||
|
Application |
Connecting with lowbed or single use for machinery transport |
||||
COLOR & AXLE QTY CAN BE MADE BY CLIENT NEED AFTER CONTACTING OUR SALES
1. How To Buy From Us ?
- You Can Select The Desired Products From Our Online Shop,
A. Clicking Our Sales Manager To Confirm The Model;
B. Telling Our Sales Manager Special Request If You Have;
C. Confirmed The Quantity And Price On The Desired Model;
D. Confirming The Terms Of Delivery (Fob/Cfr/Cif/Daf.. Etc By Mutual Agreement);
E. Our Sales Manager Can Issue You The Commercial Invoice On Agreement;
F. 1 st Down Payment 30% On Total Invoice Value Should To Paid Us By Tt/Online Upon The Invoice Issuing.
G. Our Factory Will Finish The Production According To The Agreed Production Time.
H. Final Payment Will Be Paid After We Showing All Production As Per Clients ’ Need.
I. Shipment Arrange And Final Document Arrange To Customer.
2. What’s The Guarantee Period On Our Products ?
- All Products We Export Has 1 Year Guarantee Period, And For The Beam Is Lifetime Promise. As Exporting Experience
For Years, All Products From Our Factory Can Meet The Exporting Country ’ s Standards On Vehicles, All Vehicles Will Be
Built Upon The Related Countries ’ Road Condition, And Our Sales Manager Will Provide Customer The Best Suggestions Before Placing The Order. If Some Easy Weary Small Parts, We Can Offer Free In 6 Months.
3. If Customized Service Provided ?
- Yes, Please Contact Our Sales Manger, We Can Offer Customized Service On Vehicle Design / Painting, Etc.
- Oem Available
4. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing, We Need To Adjust The Height And Overhang To Couple With The Using Truck.
5. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
