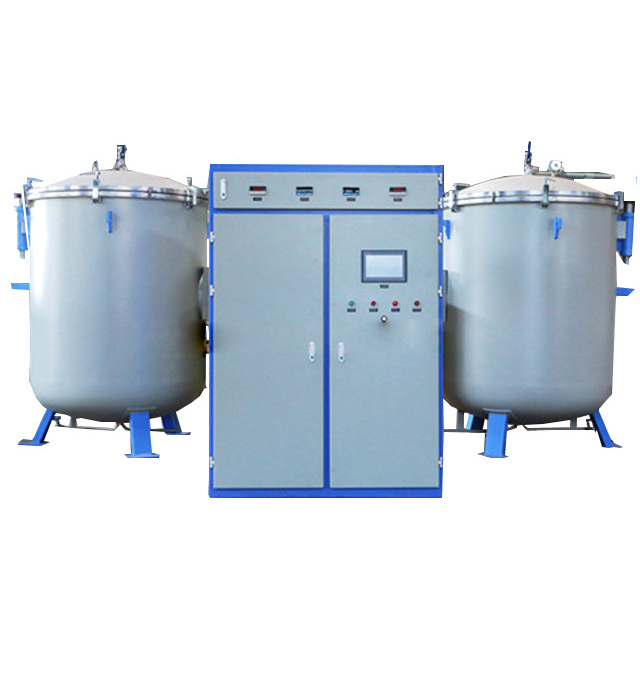

3000 Degree PI heat conductive film graphitization furnace/PI thermal graphite film production equipment

Production specifications: 180X230mm; 210X290mm; 400X400mm; 450X450mm

We can also customize products of various specifications according to requirements.

The maximum operating temperature of the furnace body: 2800-3000 ° C;

Temperature uniformity: ≤ ± 15 ° C;

Temperature control accuracy: ±1 °C

Working atmosphere: vacuum replacement Ar2, N2 protection (micro positive pressure)

Temperature measurement: infrared optical temperature measurement

Temperature range 1000~3000°C

Temperature measurement accuracy: 0.3%;

PI thermal graphite film production equipment mainly consists of medium temperature furnace of 1200-1600 °C and ultra-high temperature furnace of 2800-3000 °C and its supporting gas purification device, gas filtration device, cooling circulating water system and so on. It can produce conductive graphite films of various sizes. The equipment required before and after the equipment is properly matched, the equipment utilization rate is high, and the production efficiency is high.

The equipment uses a microcomputer to perform furnace distribution control, temperature control, temperature recording and monitoring of various data of water, electricity and gas. The programmed temperature rise curve is used to heat up, and the actual furnace temperature is recorded to ensure the quality of each furnace product, and to track and trace the production of the product. Comprehensive water, electricity and gas data monitoring, when a fault occurs, will alarm within 1 second, and automatically protect the equipment accordingly.

The main technical parameters of PI thermal conductivity film graphitization furnace:

Related equipment for PI heat conductive film graphitization furnace:

The fully sealed and dustproof structure power supply cabinet prevents the conductive carbon fiber and the conductive dust cabinet from self-contained water cooling and heat exchange without heat exchange with indoor air;

Comprehensive PLC water, electricity, gas automatic control and protection system. Realize the sequential control and interlock protection, early warning, alarm and other functions of power supply, furnace body, cooling water, protective gas and other devices;

Cooled by a closed pure water circulation system, the water flow of each water channel is displayed on the touch screen, and the primary water circulation system is completely cooled by stainless steel pipes and deionized water;

Equipped with a gas purification device, the oxygen content can be reduced to 1PPMV and the dew point temperature is less than -80 degrees.
