Quick Details
-
Brand Name:
-
OEM or Cafos or ZA
-
Model Number:
-
16KW OFS-AQS-S-S-16-1
-
Power (W):
-
16000
-
Voltage (V):
-
220
-
Capacity:
-
endless
-
Item:
-
electric central heating boiler
-
Function:
-
house heating
-
Voltage phase:
-
220-240 V (1 phase)
-
Anti-freezing protect:
-
5℃
-
Over temperature protect:
-
140℃
-
Product using life:
-
more than 15-20 years
-
Advantages:
-
using 3D maze instant core thermal heating technology
-
warranty:
-
2 years
-
Color:
-
Black
-
Product size:
-
58*36*23 cm
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM or Cafos or ZA
-
Model Number:
-
16KW OFS-AQS-S-S-16-1
-
Power (W):
-
16000
-
Voltage (V):
-
220
-
Capacity:
-
endless
-
Item:
-
electric central heating boiler
-
Function:
-
house heating
-
Voltage phase:
-
220-240 V (1 phase)
-
Anti-freezing protect:
-
5℃
-
Over temperature protect:
-
140℃
-
Product using life:
-
more than 15-20 years
-
Advantages:
-
using 3D maze instant core thermal heating technology
-
warranty:
-
2 years
-
Color:
-
Black
-
Product size:
-
58*36*23 cm

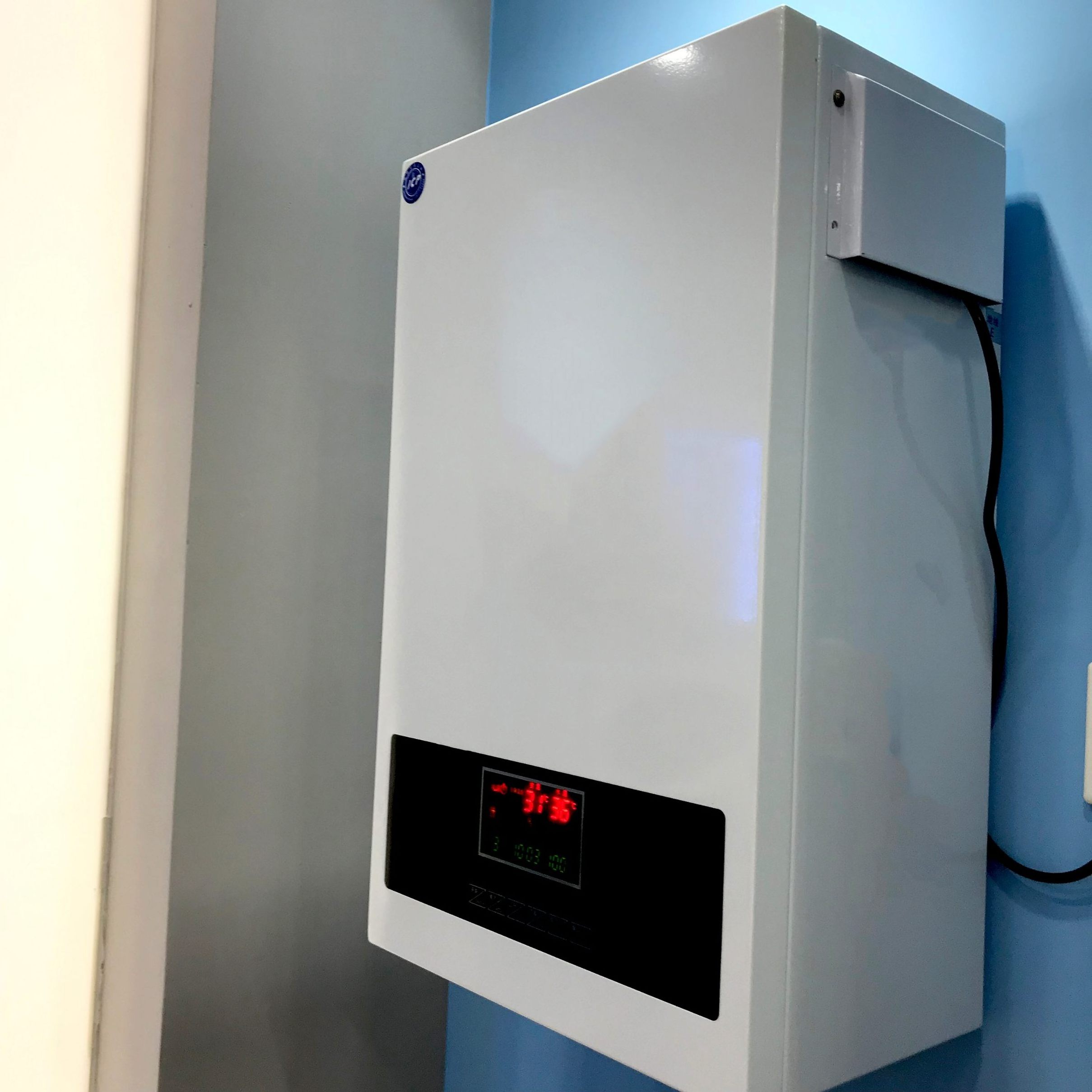

16KW OFS-AQS-S-S-16-2 three phase electric boiler floor heating hot electric water boiler for home heating
Main Features:
Water circuit and Electric circuit
Separation Heating system. The
heat efficiency of our heating parts
reaches to 96%-98.6% . Applying
high temperature resistance Nickel
chromium. High temperature magnesium
powder avoiding leakage . Smoothly 304SS
tube avoiding incrustation scale .
Name: Self-developed HEATING PART
The biggest advantage of SCR is precise control , infinite speed regulation. It can quickly adjust power according to temperature changes . Therefore to achieve the effect of energy saving
and power saving .
Name: SCR (Made in Japan)
Silicon Controlled Rectified
Stable quality, long service life, strong
cyclic power and quiet operation,
water lift can be 5 - 7 meters.
Name:
GRUNDFOS WATER PUMP
(Made in Denmark)
| Closed Type Combi System with Heating and Shower(Size: S) | ||||
| Power(KW)&Voltage Frequency(V/Hz)/Phase | 8kW/220V (1 phrase) | 10kW/220V (1 phrase) | 12kW/220V (1 phrase) | 14kW/380V (3 phrase) |
| Copper Core(MM2)/ Ammeter Requirement/ Leackage Switch(A) | 6mm²/60A/40A | 10mm²/60A/63A | 10mm²/60A/63A | 6mm²/3 phrase/63A |
| Heating Area (M2) | ≤80 | ≤100 | ≤120 | ≤140 |
| Rated Current(A) | 36.4 | 45.5 | 54.5 | 21.2 |
| Output Voltage of Pump | 220V | 220V | 220V | 220V |
| Water Pump | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China |
| Capacity of Expansion Tank | 5L | 5L | 5L | 5L |
| Thermal Cut-out | 140℃ | 140℃ | 140℃ | 140℃ |
| Inlet & Outlet Connection | G1/2" | G1/2" | G1/2" | G1/2" |
| Backwater Inlet Connection | G3/4" | G3/4" | G3/4" | G3/4" |
| Net Weight KGS | 22.9 | 22.9 | 22.9 | 22.9 |
| Gross Weight KGS | 25 | 25 | 25 | 25 |
| Product Size (MM) | 580*360*230 | 580*360*230 | 580*360*230 | 580*360*230 |
| Single Packing Size (L/W/H) mm | 690*430*310 | 690*430*310 | 690*430*310 | 690*430*310 |
| FLQ (20GP) | 294 | 294 | 294 | 294 |
| Closed Type Combi System with Heating and Shower(Size: L) | ||||
| Power(KW)&Voltage Frequency(V/Hz)/Phase | 16kW/380V (3 phrase) | 18kW/380V (3 phrase) | 20kW/380V (3 phrase) | 25kW/380V (3 phrase) |
| Copper Core(MM2)/ Ammeter Requirement/ Leackage Switch(A) | 6mm²/3 phrase/63A | 6mm²/3 phrase/40A | 6mm²/3 phrase/63A | 6mm²/3 phrase/63A |
| Heating Area (M2) | ≤160 | ≤180 | ≤200 | ≤250 |
| Rated Current(A) | 24.25 | 27.3 | 30.3 | 37.9 |
| Output Voltage of Pump | 220V | 220V | 220V | 220V |
| Water Pump | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China |
| Capacity of Expansion Tank | 5L | 5L | 5L | 5L |
| Thermal Cut-out | 140℃ | 140℃ | 140℃ | 140℃ |
| Inlet & Outlet Connection | G1/2" | G1/2" | G1/2" | G1/2" |
| Backwater Inlet Connection | G3/4" | G3/4" | G3/4" | G3/4" |
| Net Weight KGS | 33.4 | 33.4 | 33.4 | 33.4 |
| Gross Weight KGS | 36 | 36 | 36 | 36 |
| Product Size (MM) | 680*420*240 | 680*420*240 | 680*420*240 | 680*420*240 |
| Single Packing Size (L/W/H) mm | 805*495*320 | 805*495*320 | 805*495*320 | 805*495*320 |
| FLQ (20GP) | 224 | 224 | 224 | 224 |
Sealed System
Open System
