Quick Details
-
Product name:
-
Infrared touch screen frame
-
Size:
-
27 inch
-
Application:
-
ATM.POS.Open Frame Machine ...etc
-
Touch points:
-
Single-touch/2 points
-
Operating System:
-
WIN2000/XP/Vista/7/8
-
Interface:
-
USB
-
Material:
-
Aluminum Alloy Frame
-
Response time:
-
≤15ms
Quick Details
-
Type:
-
Infrared
-
Brand Name:
-
ZZDtouch
-
Place of Origin:
-
Guangdong, China (Mainland)
-
Product name:
-
Infrared touch screen frame
-
Size:
-
27 inch
-
Application:
-
ATM.POS.Open Frame Machine ...etc
-
Touch points:
-
Single-touch/2 points
-
Operating System:
-
WIN2000/XP/Vista/7/8
-
Interface:
-
USB
-
Material:
-
Aluminum Alloy Frame
-
Response time:
-
≤15ms

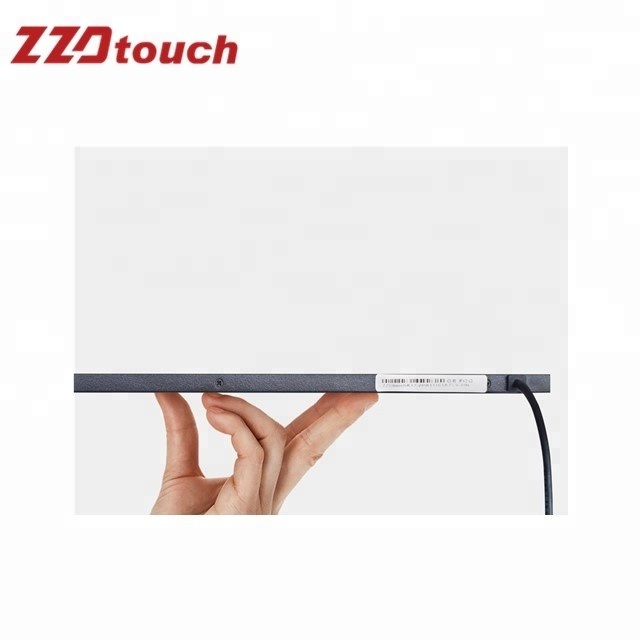

ZZD Infrared(IR) Touch Screen/Frame
* Established in 2008, ZZDtouch Co.Ltd has its own factory, producing touch screens with the most favorable price and the best quality.
Product Specification :
| Model | ZZD-K27P |
| Size | 27 inch |
| Outline Dimension (mm) | 637.5 × 376.0 × 8.0 |
| Touch Type | Single-touch, two points touch |
| Response Time | ≤15ms |
| Minimum Touch Object | 5mm |
| Resolution (Interpolation) | 4096 × 4096 |
| Touch Accuracy | Over 90% area(±2mm) |
| Glass | Thickness 3mm, tempered glass |
| Input Method | Finger,glove hand ,or opaque objects |
| Interface | USB |
| Material | Aluminum alloy |
| Operating System |
Windows, Android, Linux |
Small size from 15'' to 27'' infrared touch screen
| Infrared touch screen | Dimension (mm) | ||
| Size | Model no | Outside area | Active area |
| 15" | ZZD-K15P | 347.5*272.0*8.0±0.5 | 305.5*229.5±0.5 |
| 15.6" | ZZD-K156P | 388.5*237.5*8.0±0.5 | 346.5*195.5±0.5 |
| 17" | ZZD-K17P | 382.0*275.4*8.0±0.5 | 340.0*272.0±0.5 |
| 18.5" | ZZD-K185P | 454.4*275.4*8.0±0.5 | 412.0*233.0±0.5 |
| 19N" | ZZD-K19NP | 420.0*345.0*8.0±0.5 | 378.0*303.0±0.5 |
| 19W" | ZZD-K19WP | 454.0*300.5*8.0±0.5 | 412.0*258.5±0.5 |
| 21.5" | ZZD-K215P | 520.0*311.0*8.0±0.5 | 478.0*269.0±0.5 |
| 22" | ZZD-K22P | 518.0*340.0*8.0±0.5 | 475.0*297.0±0.5 |
| 23.6" | ZZD-K236P | 565.5*337.5*8.0±0.5 | 523.5*295.5±0.5 |
| 24" | ZZD-K24P | 563.0*368.5*8.0±0.5 | 521.0*326.5±0.5 |
| 26" | ZZD-K26P | 620.8*368.5*8.0±0.5 | 578.6*326.6±0.5 |
| 27" | ZZD-K27P | 637.5*376.0*8.0±0.5 | 595.5*334.0±0.5 |
Product Applications:
1. Interactive whiteboard
2. Self-service kiosk
3. Touch table
4. Magic mirror
5. Gaming device
6. Public query machine
7. Industry control system
8. Medical and healthcare kiosk
9. Indoor and outdoor advertising kiosk
10. LCD monitor/ Computer monitor/ PC/ TV
11. Any interactive machine
