-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation
- Product Details
- {{item.text}}
Quick Details
-
Structure:
-
rubber belt
-
Place of Origin:
-
Zhejiang, China
-
Core Components:
-
rubber conveyor belt
-
Weight (KG):
-
1000 kg
-
Product Name:
-
rubber conveyor sidewall belt
-
Based belt width(B):
-
300-1400mm
-
Sidewall height(H):
-
40-400mm
-
Cleat height(H1):
-
35-360mm
-
Bottom width of sidewall(B1):
-
25-100mm
-
Cleat width(B2):
-
120-830mm
-
Empty width(B3):
-
35-210mm
-
Cleat type:
-
t/ts/tc/tcs
-
Key Words:
-
rubber conveyor sidewall belt
-
Application:
-
Mining
Quick Details
-
Power:
-
none
-
Warranty:
-
1 Year
-
Width or Diameter:
-
300mm-2400mm
-
Structure:
-
rubber belt
-
Place of Origin:
-
Zhejiang, China
-
Core Components:
-
rubber conveyor belt
-
Weight (KG):
-
1000 kg
-
Product Name:
-
rubber conveyor sidewall belt
-
Based belt width(B):
-
300-1400mm
-
Sidewall height(H):
-
40-400mm
-
Cleat height(H1):
-
35-360mm
-
Bottom width of sidewall(B1):
-
25-100mm
-
Cleat width(B2):
-
120-830mm
-
Empty width(B3):
-
35-210mm
-
Cleat type:
-
t/ts/tc/tcs
-
Key Words:
-
rubber conveyor sidewall belt
-
Application:
-
Mining

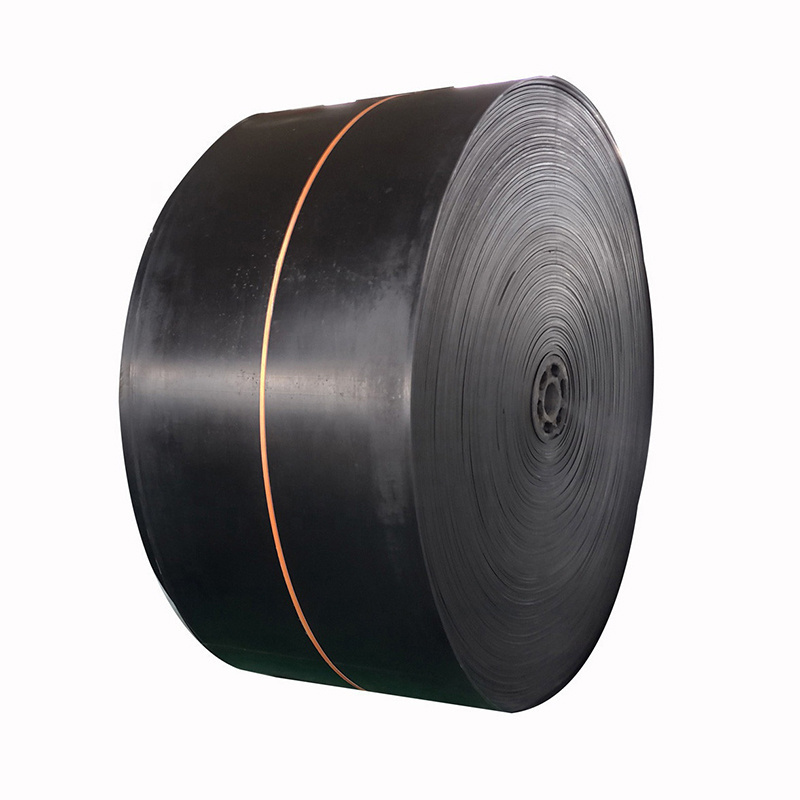

Product Description
SINOCONVE conveyor belt are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.
Property
Manufacturing standards
GB/T 7984 DIN 22102
JISK 6322 AS 1332-2000
SANS 1173:2005 BS 490
Specification
|
Cover Rubber grade
|
8MPA,10MPA,12MPA,15MPA
18MPA,20MPA,24MPA,26MPA
|
|
DIN-X,Y,W
RMA-1,RMA-2
N17,M24
|
||
|
Belt width (mm)
|
500,600.650,700,800,1000,1200
1400,1500,1800,2000,2200,2500
|
|
18",20",24",30",36",40",42"
48",60",72",78",86",94"
|
||
|
Tensile strength
|
EP315/3,EP400/3,EP500/3,EP600/3
EP400/4,EP500/4,EP600/4
EP500/5,EP1000/5,EP1250/5
EP600/6,EP1200/6
|
|
330PIW, 440PIW
|
||
|
Top+Bottom thickness
|
3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,
|
|
3/16"+1/16", 1/4"+1/16"
|
||
|
Belt thickness
|
3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
|
|
|
||
|
Belt length
|
10m,20m,50m,100m,200m,250m,300m,500m
|
|
|
||
|
Belt edge type
|
moulded(sealed) edge or cut edge
|
|
|
||
Quality control
Step 1: Raw material inspection
Rubber compound test
Moving die rheometer analyzes the characteristics of Rubber Compound
EP fabric test
Tensile strength test and elongation test when broken.
Step 2: Advance equipment to guarantee quality from the details
Calender process
4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.
Forming process
The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.
Step 3:Finished belts inspection
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.
Length and surface inspection
Thickness inspection
WIdth inspection
Step 4: Technical data test
We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
Abrasion test
Adhesion strength test
Tensile strength test
Application
Gravel transportation
Mineral transportation
Grain transportation
Tilt transportation
