Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Marking Head Brand:
-
SINO-GLAVO/ZBTK
-
Weight (KG):
-
2 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser Source:
-
IPG, Raycus, JPT
-
Laser Head:
-
Galvanometer
-
Marking Speed:
-
7000mm/s
-
Laser Marking Depth:
-
0.01-4mm
-
Power Supply:
-
220V/50HZ/1-PH or 110v/60HZ/1PH
-
Fiber Laser Source Lifespan:
-
100,000-200,000 hours
-
Laser Wavelength:
-
1064nm
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Marking Head Brand:
-
SINO-GLAVO/ZBTK
-
Weight (KG):
-
2 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser Source:
-
IPG, Raycus, JPT
-
Laser Head:
-
Galvanometer
-
Marking Speed:
-
7000mm/s
-
Laser Marking Depth:
-
0.01-4mm
-
Power Supply:
-
220V/50HZ/1-PH or 110v/60HZ/1PH
-
Fiber Laser Source Lifespan:
-
100,000-200,000 hours
-
Laser Wavelength:
-
1064nm

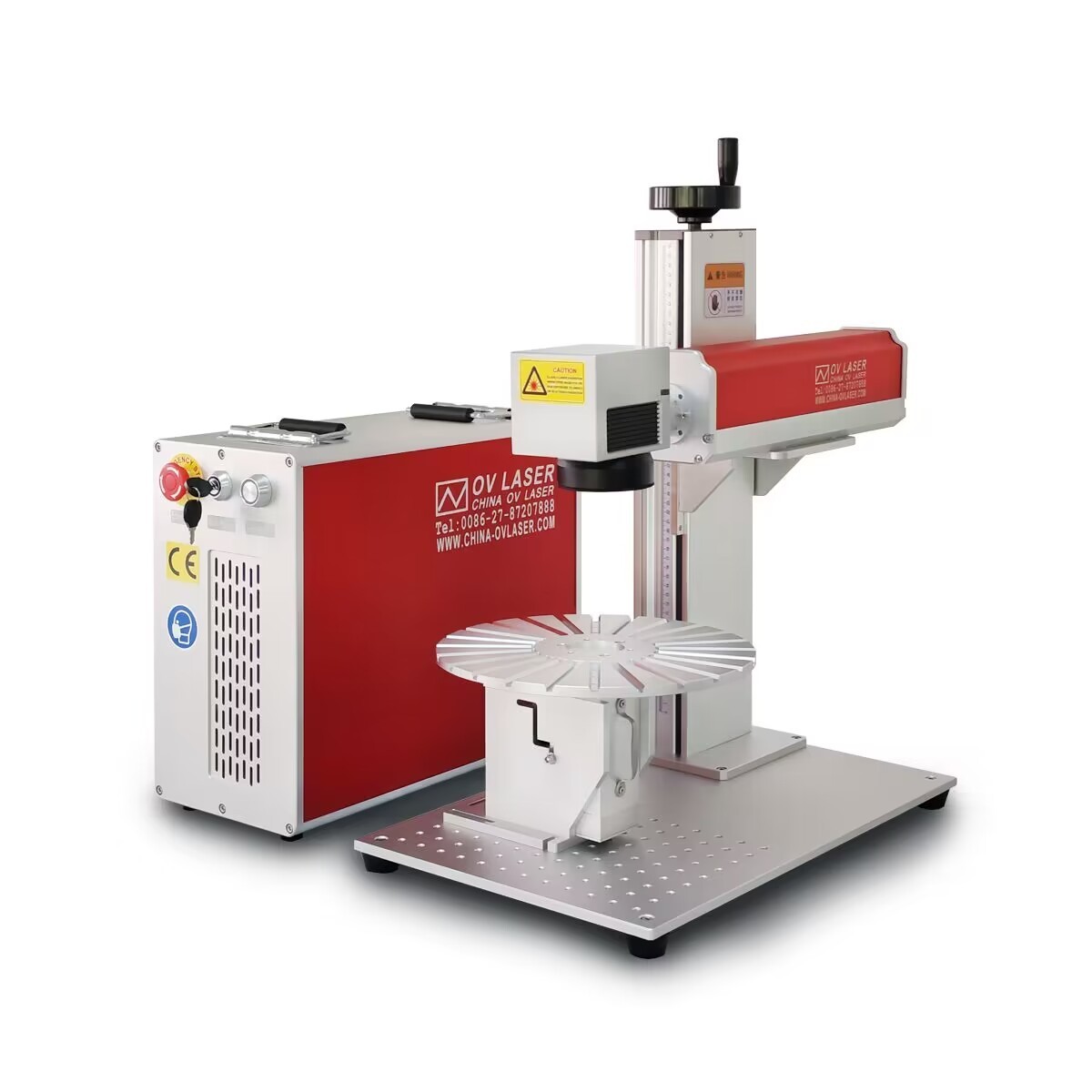

Cheap pen rotary device for laser fiber engraving ballpoint pencil metal pen printing 30W 50W laser marking machine
Features:
Fiber Laser Marking Machine: Open worktable, easy to load the material.
Application Materials:
Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as
ABS, Nylon, PES, PVC, Makrolon,etc.
Applicable Industries:
Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Technical data:
| Product Name | Laser Marking Machine | Cooling Mode | Air Cooling |
| Model | OV SF-20/30/50/100 | Max Marking Speed | 7000mm/s |
| Laser Source | Raycus, JPT, IPG | Mininum Line Width | 0.015mm |
| Power | 20W/30W/50W/60W/100W | Mininum Character | 0.2mm |
| Laser Wavelength | 1064um | Pulse Frequence | 30 KHz - 60 KHz |
| Filed Lens Brans | wavelength | Operation Environment | 5℃~45℃ , clean or dust-free / dustless |
| Marking Area | 110*110mm-300*300mm | Power Supply | AC110V /220V +10% / 50HZ or 60HZ |
| Control Card | JCZ Brand EZCAD | Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) |
Advantages:
1.The fiber laser generates high-quality permanent coding on each part without affecting the functionalitybarcode, QR 2D codes, text, logos, serial numbers and optical characters, etc).
OV Laser offers a customized solution for meeting customers’ personalized requirements from processing to maintenance.
2. When power more than 30w, it is easily to cut stainless steel, aluminum,copper, brass, gold silver.Max 1mm thickness.
3. When laser is equipped with electric Z-axis, it can automatic focus distance and convenient to do deep engraving until 0.8mm aluminum etc.
4. OV LASER also supply mopa series fiber laser marking machine.Mopa fiber laser can mark colors on stainless steel and titanium, also mark black on anodized aluminum and some plastic.
>>Jewelry cutting and deep engraving
>>Nonmetallic material
>>Coin engraving
>>2.5D/3D engraving
>>MOPA Color Marking
>>Cup Marking
