Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ewelift
-
Model Number:
-
NKLA28
-
Torque:
-
customize
-
stroke length:
-
30~1000mm
-
Color:
-
Black
-
Limit Switch:
-
Built-in Limit Switch
-
Duty Cycle:
-
10%, max 2 min continuous use
-
Operating Temperature:
-
+5℃~+45℃
-
Inner tube:
-
Aluminum tube
-
Screw type:
-
T-type screw
-
Optional Part:
-
Hall sensor; Magnetic switch; Five-line signal feedback; PC control
-
Dynamic Load Push(N):
-
200~2500N
-
Speed at no load(mm/s):
-
5~88mm/s
Quick Details
-
Speed(RPM):
-
high speed
-
Continuous Current(A):
-
current
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ewelift
-
Model Number:
-
NKLA28
-
Torque:
-
customize
-
stroke length:
-
30~1000mm
-
Color:
-
Black
-
Limit Switch:
-
Built-in Limit Switch
-
Duty Cycle:
-
10%, max 2 min continuous use
-
Operating Temperature:
-
+5℃~+45℃
-
Inner tube:
-
Aluminum tube
-
Screw type:
-
T-type screw
-
Optional Part:
-
Hall sensor; Magnetic switch; Five-line signal feedback; PC control
-
Dynamic Load Push(N):
-
200~2500N
-
Speed at no load(mm/s):
-
5~88mm/s
Product Description
NKLA28 model medical noise–
The linear actuator is waterpoof and design is small size, high precision, fully synchronized, self-locking performance is good,the motor direct drive, do not need the pipeline gas source and oil.
|
Product Name
|

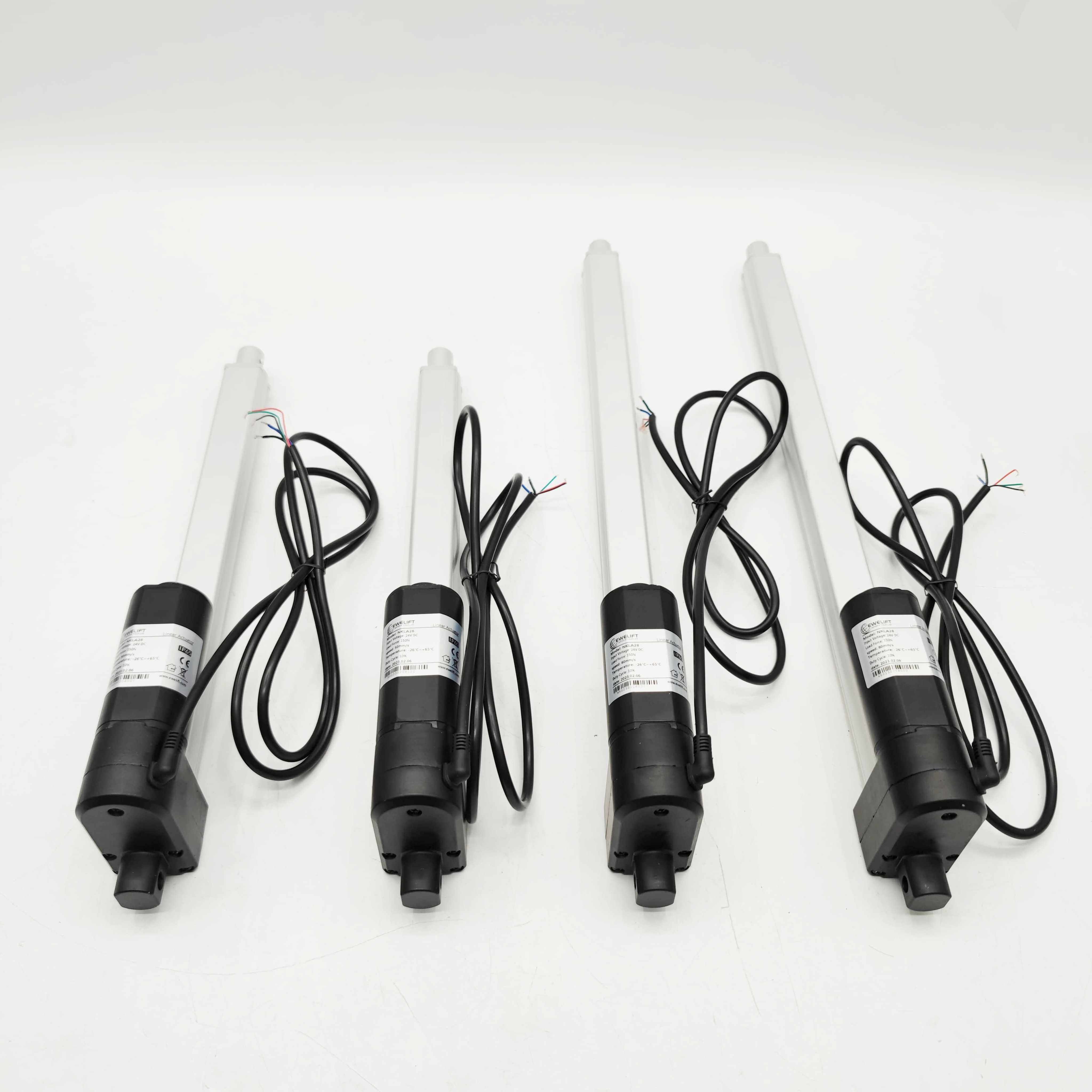

Electric Linear actuator
|
|
Dynamic Load push(N)
|
100N~2500N
|
|
Input(VDC)
|
12V/24V
|
Feature
Application
EWELIFT Linear actuators are widely used in medical line ,industrial line , home care line , smart office line and many other applications
Production line
we have linear actuators , lifting columns , control box , wired handset and wireless remote controller production lines and other lines.
Certifications
EWELIFT has passed system certification of ISO9001 ,and our products has been approved by CE .
Packing & Delivery
10pcs linear actuators packed in one carton , few cartons packed in pallet , shipping by sea , air and express.
and we also accept customized, please inform us in advance.
