Quick Details
-
Brand Name:
-
JYsupsys
-
Model Number:
-
50A 60A 80A 100A
-
Work Time (h):
-
24H
-
Max PV Power:
-
5000W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE,Rols
-
Warranty:
-
24 Months
-
Product name::
-
50A 60A 80A 100A MPPT Solar Charge Controller
-
Max open circuit voltage of panel::
-
200V
-
Charge battery model::
-
lead acid battery
-
Batter input voltage range::
-
8V-32V
-
Grounding::
-
Common negative
-
Battery float voltage::
-
13.8V 12V system /27.6V 24V system
-
Battery recovery voltage::
-
12.6V 12V system /25.2V 24V system
-
Operating temperature::
-
-10℃~60℃
-
Temperature compensation::
-
-4mV/Cell/℃
-
Storage temperature::
-
-30℃~70℃
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYsupsys
-
Model Number:
-
50A 60A 80A 100A
-
Work Time (h):
-
24H
-
Max PV Power:
-
5000W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE,Rols
-
Warranty:
-
24 Months
-
Product name::
-
50A 60A 80A 100A MPPT Solar Charge Controller
-
Max open circuit voltage of panel::
-
200V
-
Charge battery model::
-
lead acid battery
-
Batter input voltage range::
-
8V-32V
-
Grounding::
-
Common negative
-
Battery float voltage::
-
13.8V 12V system /27.6V 24V system
-
Battery recovery voltage::
-
12.6V 12V system /25.2V 24V system
-
Operating temperature::
-
-10℃~60℃
-
Temperature compensation::
-
-4mV/Cell/℃
-
Storage temperature::
-
-30℃~70℃

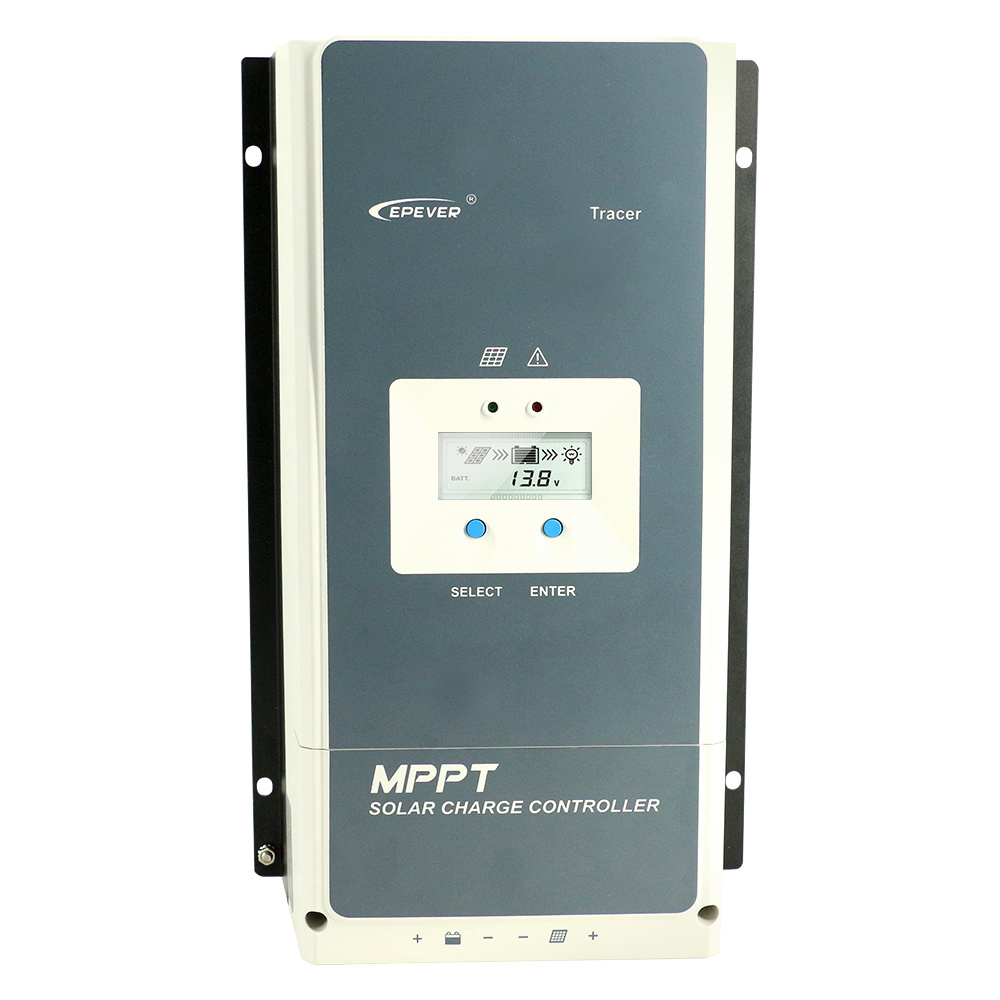

Epever EPesolar Solar Regulator 50A 60A 80A 100A 12V 24V 36V 48V With Optional Wifi Adapter MPPT Solar Charge Controller
Products Description
Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT)
and advanced MPPT control algorithm, with dual-core processor architecture and common
negative design, has the features of high response speed, high reliability, and high industrial
standard. MSRT can guarantee very high conversion efficiency in any charge power, which
sharply improves the energy efficiency of solar system; Advanced MPPT control algorithm
minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency,
corresponding speed as well as high conversion efficiency under high or low power, so that in
any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV
array to obtain the maximum energy of the panel. The limitation function of the charging power
and current, and automatic power reduction function fully ensure the stability when works with
oversize PV modules and operate under high temperature environment.
and advanced MPPT control algorithm, with dual-core processor architecture and common
negative design, has the features of high response speed, high reliability, and high industrial
standard. MSRT can guarantee very high conversion efficiency in any charge power, which
sharply improves the energy efficiency of solar system; Advanced MPPT control algorithm
minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency,
corresponding speed as well as high conversion efficiency under high or low power, so that in
any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV
array to obtain the maximum energy of the panel. The limitation function of the charging power
and current, and automatic power reduction function fully ensure the stability when works with
oversize PV modules and operate under high temperature environment.
1- CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
2- High quality & low failure rate components of ST and Infineon to ensure the product’s life
3- Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than
4- Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
5- The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
6- The wider range of MPP operating voltage.
7- Auto control system to limit the charging power & current go over the rated value.
8- Support 4 charging options: Sealed, Gel, Flooded and User.
9- Support the lead-acid and lithium batteries
10- Real-time energy recording and statistical function
10-Automatic over-temperature power reduction function
12- Hundred percent full load operation in working environment temperature range within
charging & discharging
13- Support up to 6 units in parallel to expand system
14- Load relay control external load switch signal to realize diversified load work modes
15- The first and the second disconnection of load control, contain two relay’s contact.
16- Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
17- To monitor or set the parameters by using the phone Apps or PC software.
2- High quality & low failure rate components of ST and Infineon to ensure the product’s life
3- Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than
4- Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
5- The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
6- The wider range of MPP operating voltage.
7- Auto control system to limit the charging power & current go over the rated value.
8- Support 4 charging options: Sealed, Gel, Flooded and User.
9- Support the lead-acid and lithium batteries
10- Real-time energy recording and statistical function
10-Automatic over-temperature power reduction function
12- Hundred percent full load operation in working environment temperature range within
charging & discharging
13- Support up to 6 units in parallel to expand system
14- Load relay control external load switch signal to realize diversified load work modes
15- The first and the second disconnection of load control, contain two relay’s contact.
16- Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
17- To monitor or set the parameters by using the phone Apps or PC software.
|
Model
|
Tracer6210AN
|
Tracer5415AN
|
Tracer6415AN
|
Tracer8415AN
|
Tracer10415AN
|
Tracer5420AN
|
Tracer6420AN
|
Tracer8420AN
|
Tracer10420AN
|
|||||||||
|
Nominal system voltage
|
12/24VDC/Auto
|
12/24/36/48VDC/Auto
|
|
|
|
|
|
|
|
|||||||||
|
Battery type
|
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
|
|
|
|
|
|
|
|
|
|||||||||
|
Battery input voltage range
|
8V~32V
|
8V~68V
|
8V~68V
|
8V~68V
|
8V~68V
|
8V~68V
|
8V~68V
|
8V~68V
|
8V~68V
|
|||||||||
|
Rated charge current
|
60A
|
50A
|
60A
|
80A
|
100A
|
50A
|
60A
|
80A
|
100A
|
|||||||||
|
Rated charge power
|
750W/12V
|
625W/12V
|
750W/12V
|
1000W/12V
|
1250W/12V
|
625W/12V
|
750W/12V
|
1000W/12V
|
1250W/12V
|
|||||||||
|
|
1500W/24V
|
1250W/24V 1875W/36V
|
1500W/24V 2250W/36V
|
2000W/24V
|
2500W/24V 3750W/36V
|
1250W/24V 1875W/36V
|
1500W/24V 2250W/36V
|
2000W/24V 3000W/36V
|
2500W/24V 3750W/36V
|
|||||||||
|
|
|
2500W/48V
|
3000W/48V
|
3000W/36V
|
5000W/48V
|
2500W/48V
|
3000W/48V
|
4000W/48V
|
5000W/48V
|
|||||||||
|
|
|
|
|
4000W/48V
|
|
|
|
|
|
|||||||||
|
Max. conversion efficiency
|
98.00%
|
98.30%
|
98.60%
|
98.50%
|
98.60%
|
98.30%
|
98.10%
|
98.50%
|
98.50%
|
|||||||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. PV open circuit voltage
|
100V(At minimum operating environment temperature)
|
150V(At minimum operating environment temperature)
|
|
|
|
200V(At minimum operating environment temperature)
|
|
|
|
|||||||||
|
|
92V(At 25℃ environment temperature )
|
138V(At minimum operating environment temperature)
|
|
|
|
180V(At minimum operating environment temperature)
|
|
|
|
|||||||||
|
MPP voltage range
|
(Battery Voltage+2V)
|
(Battery Voltage +2V)~108V
|
|
|
|
(Battery Voltage+2V)~144V
|
|
|
|
|||||||||
|
|
~72V
|
|
|
|
|
|
|
|
|
|||||||||
|
Equalization voltage
|
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
|
|
|
|
|
|
|
|
|
|||||||||
|
Boost voltage
|
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
|
|
|
|
|
|
|
|
|
|||||||||
|
Float voltage
|
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
|
|
|
|
|
|
|
|
|
|||||||||
|
Low voltage reconnect voltage
|
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
|
|
|
|
|
|
|
|
|
|||||||||
|
Low voltage disconnect voltage
|
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
|
|
|
|
|
|
|
|
|
|||||||||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
|
|
|
|
|
|||||||||
|
Temperature compensation( for lead-acid battery)
|
-3mV/℃/2V(Default)
|
|
|
|
|
|
|
|
|
|||||||||
|
Relative humidity
|
5% to 95% (N.C.)
|
|
|
|
|
|
|
|
|
|||||||||
|
Enclosure
|
IP20
|
|
|
|
|
|
|
|
|
|||||||||
|
Communication interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel)
|
|
|
|
|
|
|
|
|
|||||||||
|
Grounding
|
Common negative
|
|
|
|
|
|
|
|
|
|||||||||
|
Operating temperature range
|
`-25℃~+60℃(derating above 45℃)
|
|
|
|
|
|
|
|
|
|||||||||
|
Dimensions(LxWxH)(mm)
|
340×232×105.2
|
261×216×119
|
340×236×119
|
394×240×134
|
394×242×143
|
261×216×119
|
340×236×119
|
394×240×134
|
394×242×143
|
|||||||||
|
Net weight
|
3.5kg
|
3.5kg
|
4.5kg
|
6.1kg
|
7.4kg
|
3.5kg
|
4.5kg
|
6.1kg
|
7.4kg
|
|||||||||
|
1. The controller can't automatically identify system voltage if lithium batteries were connected.
|
|
|
|
|
|
|
|
|
|
|||||||||
|
2. The voltage point is for the 12V system, please *2 in 24V system, *3 in 36V system, *4 in
|
|
|
|
|
|
|
|
|
|
|||||||||
