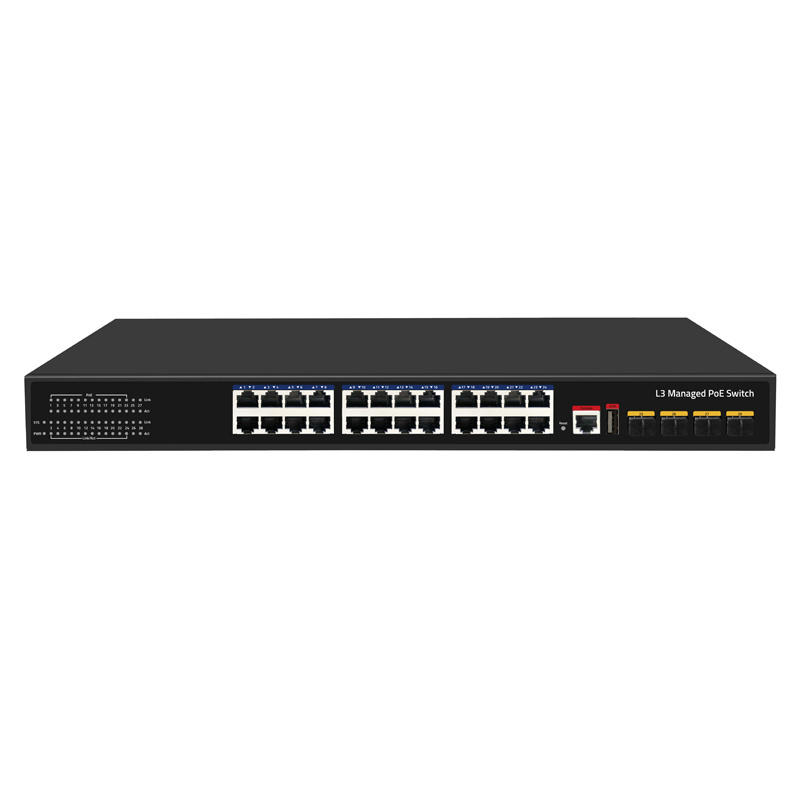

L3 poe switch 440w Managed 10/100/1000 10G SFP Ethernet Poe Switch 24 Port Gigabit Industrial Ring Network 400W Switch For CCTV

I/O Interface

Power

AC100-240V/50-60Hz

Ethernet

24*10/100/1000Mbps POE Port
4*10G SFP Port
1*RJ45 Console Port
1*USB Port

Performance

Capacity

128Gbps

Packet Forwaring Rate

95.23Mpps

DDR SDRAM

128MB

Flash Memory

16MB

Packet Buffer Memory

12Mbit

MAC Address

16K

Jumbo Frame

12Kbytes

VLANs

4096

MTBF

100000 hours

Standard

Network Protocol

IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae: 10G Ethernet（optical fiber）
IEEE 802.3az: Energy-efficient Ethernet
IEEE 802.3ad: Standard method of performing link aggregation
IEEE 802.3x: flow control
IEEE 802.1ab: LLDP/LLDP-MED（Link Layer Discovery Protocol）
IEEE 802.1p: LAN Layer 2 Qos/Cos protocol (multicast filtering function) related to traffic priority
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP

PoE Protocol

IEEE802.3af（15.4W）
IEEE802.3at （30W）

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)

Network Medium

10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)
100Base-TX: Cat5 or above UTP/STP(≤100m)
1000Base-TX: Cat5 or above UTP/STP(≤100m)
Multi-mode Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125、8.7/125、9/125、10/125um

Environment

Working Environment

Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing
Working Height：Maximum 10,000 feet
Storage Height：Maximum 10,000 feet
