Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KIKEA
-
Voltage:
-
Customizable, 380V/220V Optional
-
Dimension(L*W*H):
-
1560*650*1950 mm
-
Weight (T):
-
0.82 T
-
Model Number:
-
HP-80S
-
Motor Power (kw):
-
0 kw
-
Pressure:
-
40Mpa
-
Table Size:
-
500*400 mm
Quick Details
-
Machine Type:
-

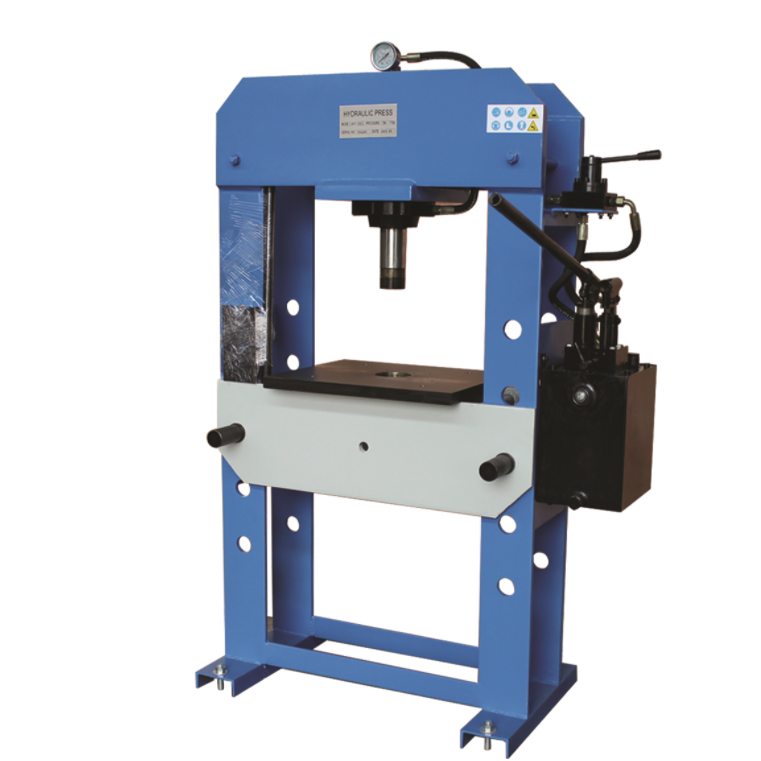

H Frame Hydraulic Press
-
Slide Stroke (mm):
-
300
-
Return Force (kN):
-
0 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KIKEA
-
Voltage:
-
Customizable, 380V/220V Optional
-
Dimension(L*W*H):
-
1560*650*1950 mm
-
Weight (T):
-
0.82 T
-
Model Number:
-
HP-80S
-
Motor Power (kw):
-
0 kw
-
Pressure:
-
40Mpa
-
Table Size:
-
500*400 mm
1. Construction and Design
3. Pressure Control
5. Ease of Use
6. Safety Features
9. Customization
Manual hydraulic presses are typically built with a robust frame and sturdy materials, such as steel or cast iron, ensuring
durability and stability during operation. They are designed to withstand high pressures and heavy-duty applications.
2. Hydraulic System
The press incorporates a hydraulic system consisting of a hydraulic cylinder, piston, piston rod, and hydraulic fluid. By manually operating the hand pump, users can build up hydraulic pressure, which is transferred to the hydraulic cylinder to exert force on the objects being pressed.
3. Pressure Control
Manual hydraulic presses are equipped with a pressure gauge, allowing users to monitor and adjust the applied pressure accurately. This enables precise control over the pressing force, making them suitable for a wide range of applications with varying pressure requirements.
4. Versatility
Manual hydraulic presses are versatile tools that can be used for various applications. They are commonly employed in industries such as metalworking, fabrication, automotive repairs, woodworking, and assembly tasks. They
can perform operations such as pressing, bending, straightening, punching, and more.
5. Ease of Use
These presses are designed for user-friendly operation. The hand-operated pump allows users to control the force
manually, providing a tactile and intuitive experience. The controls and pressure adjustment mechanisms are typically designed for easy operation, making them accessible to both beginners and experienced operators.
6. Safety Features
Manual hydraulic presses often incorporate safety features to ensure operator safety during use. These may include emergency stops, safety locks, or guards to prevent accidents and provide a secure working environment.
7. Portability
Some manual hydraulic presses are designed to be portable and compact, making them suitable for mobile applications or workshop environments where space is limited. This portability allows for flexibility in various work settings.
8. Maintenance
8. Maintenance
Manual hydraulic presses generally require minimal maintenance. Regular inspection of hydraulic seals, proper lubrication, and occasional replacement of hydraulic fluid are typical maintenance tasks to ensure optimal performance and longevity.
9. Customization
Depending on the manufacturer, manual hydraulic presses may offer customization options such as different table sizes, adjustable pressure settings, or additional accessories to cater to specific application needs.
Specification
|
Model
|
Capacity
(KN)
|
Pressure
(Mpa)
|
Travel
(mm)
|
Tale size
(mm)
|
Dimension
(mm)
|
Weight
(KG)
|
|
HP-10S
|
100
|
20
|
180+450
|
200*300
|
500*350*1300
|
220
|
|
HP-20S
|
200
|
50
|
200+450
|
200*300
|
500*350*1300
|
260
|
|
HP-30S
|
300
|
50
|
200+450
|
300*400
|
55*400*1500
|
320
|
|
HP-40S
|
400
|
60
|
250+450
|
360*500
|
1000*550*1500
|
380
|
|
HP-50S
|
500
|
60
|
250+450
|
360*680
|
1000*600*1750
|
460
|
|
HP-80S
|
800
|
40
|
300
|
500*400
|
1560*650*1950
|
820
|
|
HP-100S
|
1000
|
40
|
300
|
800*400
|
1600*650*2100
|
980
|
|
HP-150S
|
1500
|
40
|
300
|
800*400
|
1730*730*2150
|
1100
|
|
HP-200S
|
2000
|
40
|
300
|
1000*500
|
1800*800*2250
|
1600
|
KIKEA is a high-tech enterprise specializing in the production of bending machine tools, laser cutting machines and laser automation. It is a comprehensive dragon enterprise integrating automatic control system design, new product research and development, and a new platform for equipment manufacturing to form a machine tool industry.
The company currently has 34 authorized patents. The company has successively won the China Famous Trademark, the National Torch Program Key High Enterprise, the Torch Program, the Provincial Postdoctoral Workstation, the Provincial 115 Innovation Team, the Provincial Metal Forming Engineering Technology Research Center, the Provincial Enterprise Technology Center, and the Provincial Production Titles such as joint study and research demonstration enterprises.
FAQ
Where is your company?
Our company is in Nanjing Lishui,Jiangsu Province, which is only half an hour's drive from Nanjing Lukou Airport.
If you visit our company we will arrange a special bus to meet you at the airport.
How long does it take to deliver the machine?
Generally, we will deliver the goods within 30 days. If the machine belongs to non-standard customized products,
the time will be longer, but the longest time will not exceed 50 days.
What kind of payment do you accept?
Generally, we accept T/T and L/C payment and Western union, 30% deposit and 70% payment before delivery. if you are our special customer, we can accept better payment method.
What is the warranty period of your machine?
For conventional machines, our warranty period is one year. For special non-standard machines , we may provide 2 years warranty, but this should be confirmed with our sales team in advance.
