China tractor truck tractor hydraulic chain trencher farm tractor for sale

China tractor truck tractor hydraulic chain trencher farm tractor for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $1300

≥3 Sets

US $1200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Engine Brand:: Laidong KM385

Weight:: 1350 KG

Product name:: Agricultural Tractor

Fuel:: Diesel Oil

Front /Rear Wheel:: 6.0-16/9.5-24

Optional Front/Rear Wheel:: 6.5-16/11.2-24

Clutch:: Dry-friction, Single Stage or Dry-friction. Dual Stage

Steering:: Hydraulic Type

Transmission Box:: 8F+2R Collar Shift

Suspension Type:: Post Positioned Three-point Suspension

Type and Rev. (r/min):: Post-position, half-independent, 540/720

Spline Size:: I35 Rectangle Spline with 6 teeth

After-sales Service Provided:: Free spare parts, Field maintenance and repair service, Video technical support

After Warranty Service:: Video technical support, Online support

Local Service Location:: None

Quick Details

Rated Power (HP):: 18HP~35HP

Place of Origin:: Shandong, China

Marketing Type:: Various accessories with customization

Engine Brand:: Laidong KM385

Weight:: 1350 KG

Product name:: Agricultural Tractor

Fuel:: Diesel Oil

Front /Rear Wheel:: 6.0-16/9.5-24

Optional Front/Rear Wheel:: 6.5-16/11.2-24

Clutch:: Dry-friction, Single Stage or Dry-friction. Dual Stage

Steering:: Hydraulic Type

Transmission Box:: 8F+2R Collar Shift

Suspension Type:: Post Positioned Three-point Suspension

Type and Rev. (r/min):: Post-position, half-independent, 540/720

Spline Size:: I35 Rectangle Spline with 6 teeth

After-sales Service Provided:: Free spare parts, Field maintenance and repair service, Video technical support

After Warranty Service:: Video technical support, Online support

Local Service Location:: None

Product Description

TE series farm tractor

●TE series tractor is designed for multiple light works, such as farming, transportation etc. ●Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance. ●Using central console and mature structure, the tractor is easy to control and maintain. ●8F+2R gearbox with easy operation and convenient maintenance; ●Optional single/double action clutches for different needs and operation; Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions. ●Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.

Main Technical Specifications :					Overall Dimension（mm	Overall Dimension（mm
Model	NM-254	NM-304	NM-354	NM-404	NM-454
Type	4x4	4x4	4x4	4x4	4x4
L x W x H	3050x1500x2030	3050x1500 x 2930	3150x1500 x 2040	3250x1500x2130	3250x1500x2130
Front Wheel	1200	1200	1200 i2nn( lienal)	1200 1?nn f iieital)	1200 i2nn r itcnAi)
Wheel Base	1700	1700	1800	1800	1800
Min. Ground Base	360 (the bottom of transmission box)
Min. Usage Mass (kg)	1350	1350	1450	1450	1450
Model	Laidong KM385	Laidong 39C	Laidong 4L22BT	Laidong 4L23BT	Laidong 490
Type	Vertical, water cooled and 4-stroke
Rated Power (kw)	18.4	22.1	25.7	29.4	33.1
Rated Rev. (r/min)	2300	2300	2350	2300	2400

Detailed Images

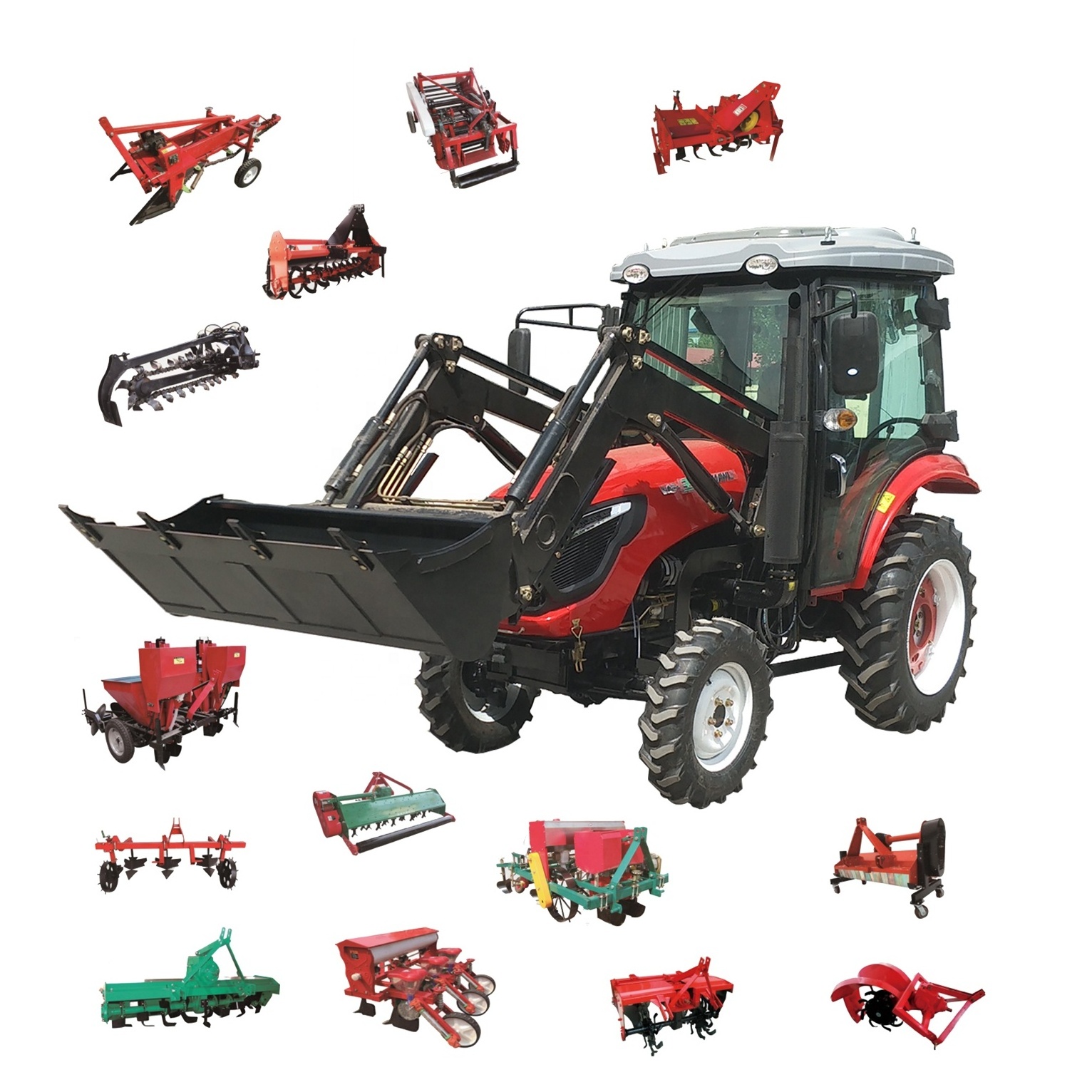

You choose to buy our agricultural tractor, we provide you with the auxiliary equipment you want and deliver it to you together

Optional Attachments

Customers Feedback

After-sales buyer evaluation, so that you can rest assured to buy the machine you need. If you are interested, you can send me an email, and we will choose the machine and accessories you need through negotiation.
