Quick Details
-
Power:
-
80KW
-
Dimension(L*W*H):
-
10000*5000*8000
-
Weight:
-
8000 kg
-
Model:
-
YHZS25
-
Theoretical Capacity:
-
25m³/h
-
Concrete Mixer:
-
JZM500
-
Concrete Batching Machine:
-
PLD800
-
Maximum Aggregate Size:
-
60mm
-
Discharge Height:
-
3800mm
-
Aggregate Weighing System:
-
0-1500kg
-
Cement Weighing System:
-
0-300kg
-
Water Weighing System:
-
0-20kg
-
Total Weight:
-
10000
Quick Details
-
Machine Type:
-
Powder silo
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CINA CHARM
-
Power:
-
80KW
-
Dimension(L*W*H):
-
10000*5000*8000
-
Weight:
-
8000 kg
-
Model:
-
YHZS25
-
Theoretical Capacity:
-
25m³/h
-
Concrete Mixer:
-
JZM500
-
Concrete Batching Machine:
-
PLD800
-
Maximum Aggregate Size:
-
60mm
-
Discharge Height:
-
3800mm
-
Aggregate Weighing System:
-
0-1500kg
-
Cement Weighing System:
-
0-300kg
-
Water Weighing System:
-
0-20kg
-
Total Weight:
-
10000
Product Description
Product Introduction

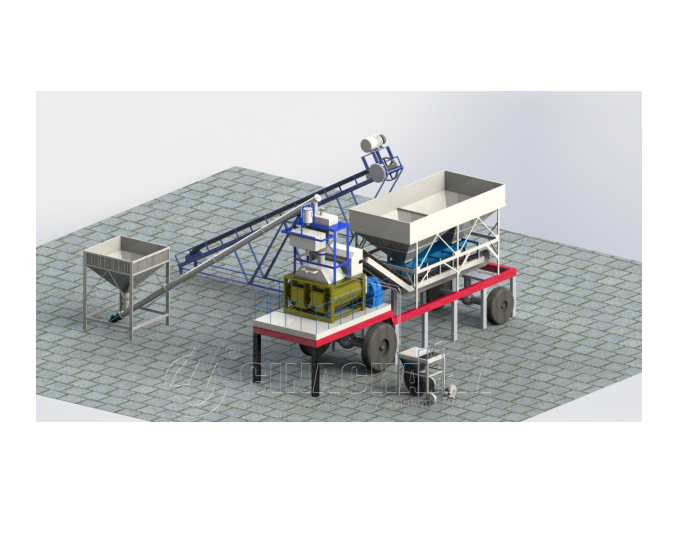

YHZS25 type concrete batching plant is a smaller type of concrete batching plant in the engineering station, usually composed of JZM500 type concrete mixer, PLD800 type concrete batching machine and so on. Its characteristics are small output, low price, supply engineering use, theoretical output of 25 cubic meters per hour (in actual production due to the back and forth of the tanker, feeding and other factors, the output can be about 20 cubic meters per hour).
Specification
|
item
|
value
|
|
Core Components
|
Engine, Bearing, Motor, Pump
|
|
Condition
|
New
|
|
Power Type
|
Electric
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Brand Name
|
CINA CHARM
|
|
Power
|
80KW
|
|
Dimension(L*W*H)
|
10000*5000*8000
|
|
Weight
|
8000kg
|
|
Warranty
|
1 Year
|
|
Machine Type
|
Powder silo
|
|
Model
|
YHZS25
|
|
Theoretical Capacity
|
25m³/h
|
|
Concrete Mixer
|
JZM500
|
|
Concrete Batching Machine
|
PLD800
|
|
Maximum Aggregate Size
|
60mm
|
|
Discharge Height
|
3800mm
|
|
Aggregate Weighing System
|
0-1500kg
|
|
Cement Weighing System
|
0-300kg
|
|
Water Weighing System
|
0-20kg
|
|
Total Weight
|
10000
|
Product Advantage
