Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
samsara
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4850/3860/6550
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
90kw
-
Applicable Industries:
-
plastic machine
-
Type:
-
Plastic Material Mixer Machine
-
Raw material:
-
Pvc Wpc Powder
-
Advantage:
-
High Performance
-
Motor:
-
Inverter Motor
-
Suit for:
-
spc wpc floor produce
-
Function:
-
Plastic Raw Material Processing
-
Feature:
-
Easy
-
MIXED TIME:
-
8-12 Mins
-
Keywords:
-
Plastic High Speed Mxier
Quick Details
-
Capacity (kg):
-
2000
-
Output (kg/h):
-
1 - 1000 kg/h
-
Application:
-
plastic machine
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
samsara
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4850/3860/6550
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
90kw
-
Applicable Industries:
-
plastic machine
-
Type:
-
Plastic Material Mixer Machine
-
Raw material:
-
Pvc Wpc Powder
-
Advantage:
-
High Performance
-
Motor:
-
Inverter Motor
-
Suit for:
-
spc wpc floor produce
-
Function:
-
Plastic Raw Material Processing
-
Feature:
-
Easy
-
MIXED TIME:
-
8-12 Mins
-
Keywords:
-
Plastic High Speed Mxier
We provide integrated solutions in conveying and batch weighing system. Based on the key technologies of weighing and measuring,we diliver systems for various process like feeding, storing,metering, controls through to complete material handling systems for both bulk materials and liquid materials. Our products and service meet the needs of various industries, including foods,pharmaceuticals, plastics, chemicals and even new energy industry. Relying on the different material properties, we select the proper transmission method to combine with the hot/cold mixer as well as the devics of automatic metering, dosing system, transfer hopper and recycling hopper in connection with the extruder,which shapes a fully-exclosed and dust-free producing chain. By such way, we get the improvement of mixing work environmental and capablity to meet the production requirements in large quantity, high quality , low cost and high effiency.
1) Automatic weighing mixing feeding system for the PVC pipe, profile extrusion lines
2)Automatic weighing feeding system for the cable, rubber industry
3) Simple automatic feeding mixing storage system
Products Description

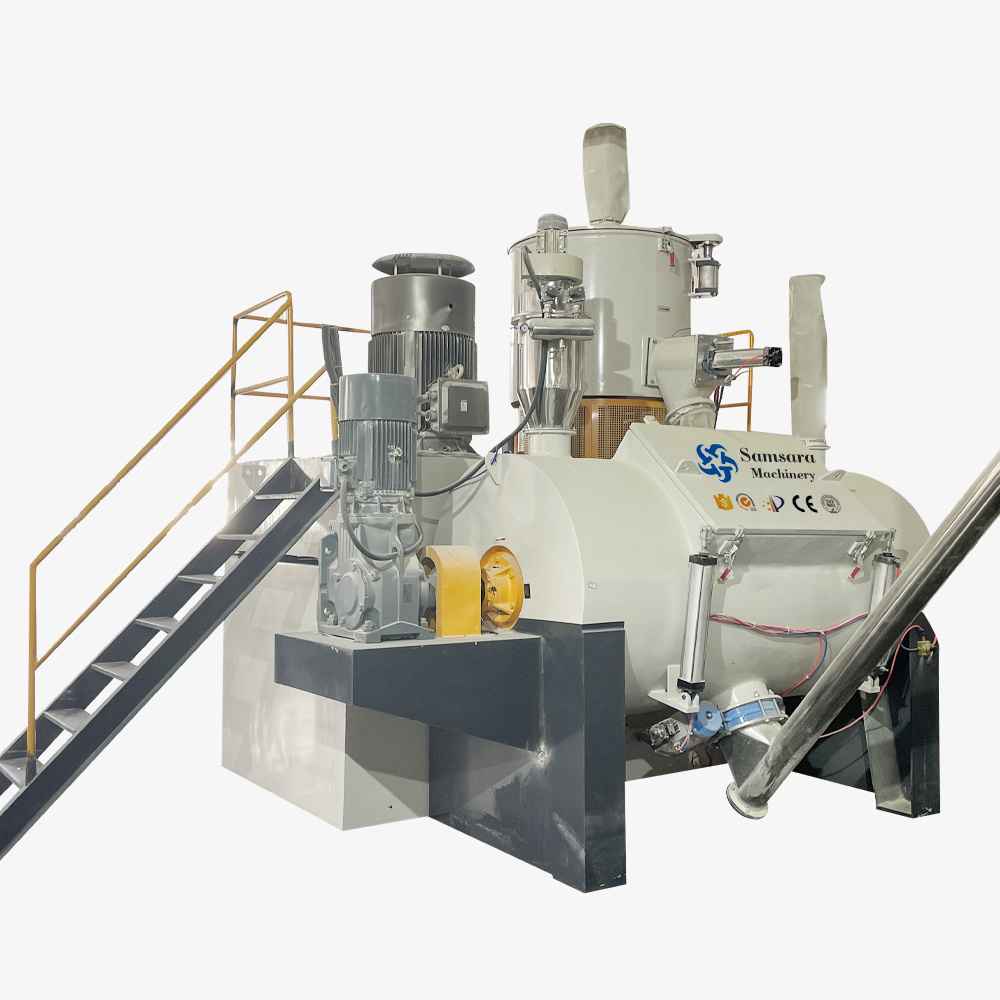

Mixer Unit
Applications:
1.Energy saving,environmentally-friendly materials' conveying,automatic weighing and batching,mixing.
2.Mixing,stirring,drying,coloring of plastics, rubber and chemicals for daily used.
3.Used in producing plastic board,PVC flooring,pipe,profile and degradation plastics.
Description:
It is used in mixing,stirring,drying coloring of plastics,rubber and chemicals for daily use.It is an ideal advance equipment of producing plastic board,PVC flooring,pipe,profile and degradation plastics.
We digest and absorb foreign advanced technology in making mixer,which adopts the vacuum mixing principle.The electric components all adopt PLC controlling,which has character of high automation,quick mixing,the blade is precisely cast of stainless steel and treated bydynamic and static balancing. Especially, the blade of cooling machine adopt the advanced spiral stirring structure,which avoid dead angle,and with the feature of quick cooling,thoroughly discharging and high efficient.
|
Model
|
Hot mixer(L)
|
Cooling mixer(L)
|
Power(Kw)
|
Output(Kg/h)
|
|
SRL-Z 100/200
|
100
|
200
|
14-22
|
200
|
|
SRL-Z 200/500
|
200
|
500
|
30-42
|
360
|
|
SRL-Z 300/600
|
300
|
600
|
40-55
|
480
|
|
SRL-Z 500/1000
|
500
|
1000
|
55-75
|
720
|
|
SRL-Z 800/1600
|
800
|
1600
|
83-110
|
1200
|
|
SRL-W 500/1600
|
500
|
1000
|
55-75
|
720
|
|
SRL-W 800/2500
|
800
|
2500
|
83-110
|
1200
|
|
SRL-W 1000/3000
|
1000
|
3000
|
110-160
|
1800
|
|
SRL-W 1500/4500
|
1500
|
4500
|
132-200
|
2600
|
|
SRL-W 2000/6000
|
2000
|
6000
|
250-315
|
3600
|
Field Installation
Product packaging
Product Application
Zhangjiagang samsara machinery co.,ltd focus on building bulk solid handling plant and supplying related machines and fabricated parts to PVC plastic, rubber, chemical, food and other industries ,etc. Our the best understanding of bulk material properties and the handling process. We are good at solving problems which exist in bulk solid conveying, storage, weighing, mixing and screening. Meanwhile,offering optimal solutions and proposals of the whole project Eventually, Our company will provide you with an ideal project which acts according to your demands.With comprehensive experience, creative and innovative emotion.
