Quick Details
-
Brand Name:
-
LYJW
-
Place of Origin:
-
Henan, China
-
Model Number:
-
P0 P6 P4 P2
-
Warranty:
-
12Mouths
-
Certificate:
-
CCS,ABS,BV,GL,DNV
-
Material:
-
50Mn/42GrMo
-
Model:
-
100-15000mm
-
Hardness:
-
56-68HRC
-
MOQ:
-
1 Set
-
Service:
-
OEM Customized Services
-
Package:
-
Wooden Box
-
Weight:
-
According to the model
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Feature:
-
Four Point Contact
-
Seals Type:
-
Rubber seals
-
Brand Name:
-
LYJW
-
Place of Origin:
-
Henan, China
-
Model Number:
-
P0 P6 P4 P2
-
Warranty:
-
12Mouths
-
Certificate:
-
CCS,ABS,BV,GL,DNV
-
Material:
-
50Mn/42GrMo
-
Model:
-
100-15000mm
-
Hardness:
-
56-68HRC
-
MOQ:
-
1 Set
-
Service:
-
OEM Customized Services
-
Package:
-
Wooden Box
-
Weight:
-
According to the model
Production description

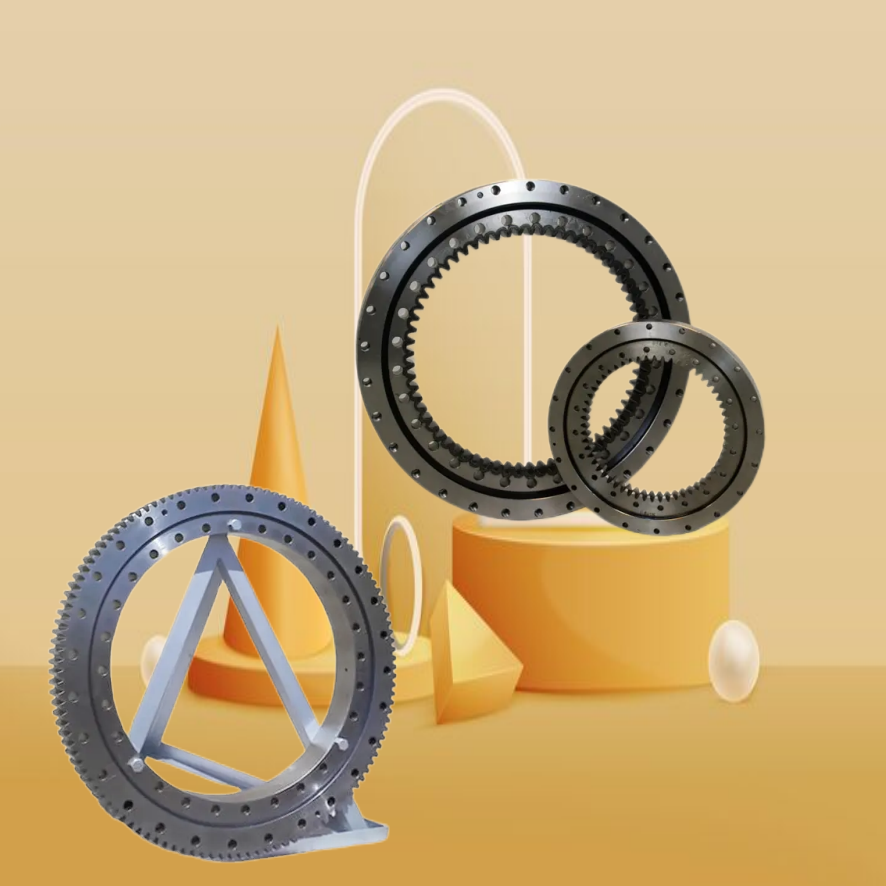

Four-Point Contact Ball slewing Bearing is composed of 2 seat-rings.It is compact in design and light in weight.The balls contact with the circular race at four points,which carry the axial force,radical force and resultant moment simutaneously.
Application area
Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , offshore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator
|
Designations
|
External diameter
(mm)
|
Bore size
(mm)
|
Height
(mm)
|
Basic load ratings
(Coa ratings)
|
Mass
(kg)
|
|
01.30.500
|
602
|
398
|
80
|
129
|
75.8
|
|
01.30.560
|
662
|
458
|
80
|
144
|
94
|
|
01.30.630
|
732
|
528
|
80
|
187
|
110
|
|
01.30.710
|
812
|
608
|
80
|
212
|
120
|
|
01.40.800
|
922
|
678
|
100
|
313
|
256
|
|
01.40.900
|
1022
|
778
|
100
|
355
|
240
|
|
01.40.1000
|
1122
|
878
|
100
|
394
|
305
|
|
01.40.1120
|
1242
|
998
|
100
|
443
|
300
|
|
01.45.1250
|
1390
|
1110
|
110
|
554
|
420
|
|
01.45.1400
|
1540
|
1260
|
110
|
617
|
480
|
|
01.45.1600
|
1740
|
1460
|
110
|
702
|
550
|
|
01.45.1800
|
1940
|
1660
|
110
|
793
|
610
|
|
01.60.2000
|
2178
|
1825
|
144
|
1210
|
1100
|
|
01.60.2240
|
2418
|
2065
|
144
|
1350
|
1250
|
|
01.60.2500
|
2678
|
2325
|
144
|
1500
|
1400
|
|
01.60.2800
|
2978
|
2625
|
144
|
1680
|
1600
|
|
01.70.3150
|
3376
|
2922
|
174
|
2380
|
2800
|
|
01.70.3550
|
3776
|
3322
|
174
|
2690
|
3200
|
|
01.70.4000
|
4226
|
3772
|
174
|
3020
|
3600
|
|
01.70.4500
|
4726
|
4272
|
174
|
3410
|
4000
|
|
Single Row Ball Slewing Bearing
|
|
Deformation under maximum allowable load
|
Single Row Ball Slewing Bearing
|
|
Deformation under maximum allowable load
|
||
|
exceed
|
reach
|
|
exceed
|
reach
|
|
||
|
~
|
1000
|
0.6
|
4000
|
4500
|
3.0
|
||
|
1000
|
1500
|
0.8
|
4500
|
5000
|
3.6
|
||
|
1500
|
2000
|
1.0
|
5000
|
5500
|
4.2
|
||
|
2000
|
2500
|
1.3
|
5500
|
6000
|
4.8
|
||
|
2500
|
3000
|
1.6
|
6000
|
7000
|
5.8
|
||
|
3000
|
3500
|
2.0
|
7000
|
8000
|
7.0
|
||
|
3500
|
4000
|
2.5
|
|
|
|
||
