Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller
Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller
Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller
Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller
Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller
Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller
Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller
Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller

Smart 10kw 11kw 180A max pv charging 230VAC 60Hz Output Frequency hybrid solar inverter with MPPT solar charger controller

FOB Reference Price: Get Latest Price
≥2 Pieces
US $518
≥10 Pieces
US $498
≥50 Pieces
US $478
≥200 Pieces
US $468
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Suoer
Model Number:
SVM-10.2k
Input Voltage:
48VDC/230VAC
Output Voltage:
230VAC±5%
Output Current:
/
Output Frequency:
50Hz/60Hz
Size:
42*31*11CM
Certificate:
TUV/ISO
Warranty:
one year
Weight:
14.5KG
Product name:
10kw Hybrid Solar Inverter
Voltage:
230 VAC
Waveform:
Pure Sine Wave
Max Solar Charge Current:
180A
Rated Output Power:
10200W/10200VA
Battery voltage:
48V DC
Maximun Efficiency:
98%
Communication Port:
RS232/WIFI/RemoveLCD/GPRS
Color:
white

Quick Details

Output Type:
Single
Type:
DC/AC Inverters
Inverter Efficiency:
/
Place of Origin:
Guangdong, China
Brand Name:
Suoer
Model Number:
SVM-10.2k
Input Voltage:
48VDC/230VAC
Output Voltage:
230VAC±5%
Output Current:
/
Output Frequency:
50Hz/60Hz
Size:
42*31*11CM
Certificate:
TUV/ISO
Warranty:
one year
Weight:
14.5KG
Product name:
10kw Hybrid Solar Inverter
Voltage:
230 VAC
Waveform:
Pure Sine Wave
Max Solar Charge Current:
180A
Rated Output Power:
10200W/10200VA
Battery voltage:
48V DC
Maximun Efficiency:
98%
Communication Port:
RS232/WIFI/RemoveLCD/GPRS
Color:
white
Welcome to contact us. Just leave your contact information and shipping address to receive a free exquisite gift and product brochure！
Product Description

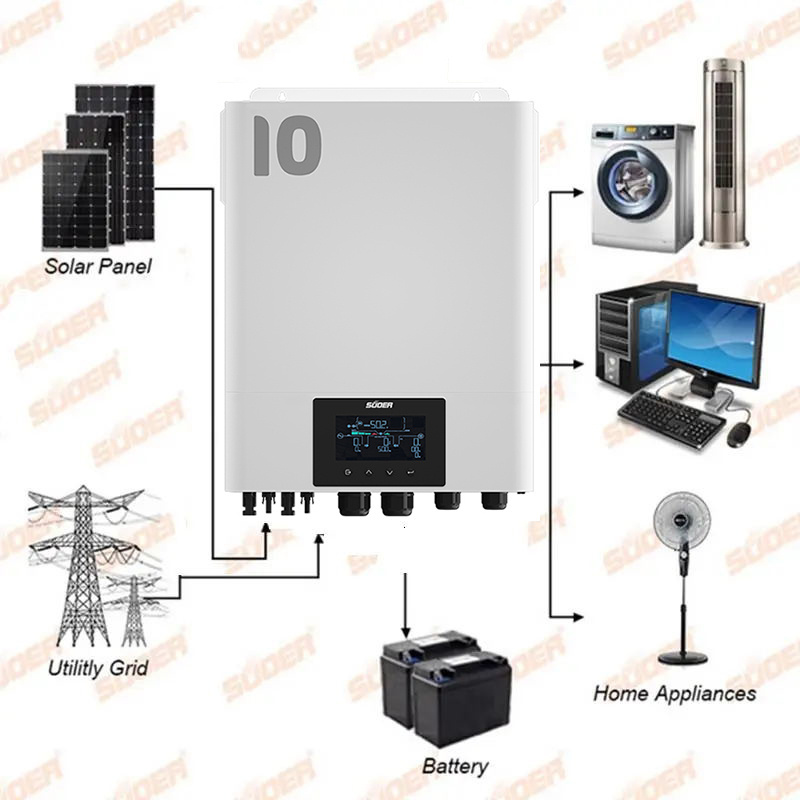

10.2kw Hybrid Solar Inverter
Feature
1.Small size and light weight
2.Bluetooth App connected,power generation at any time to watch
3.Mobile intelligent cloud monitoring, simple operation and maintenance
4.Friendly connection to the power grid, more coordinated response
5.Power generation does not use electricity, and the efficiency is visible

Advantage
1.180A Max pv charging
2.Pure sine wave
3.Works with and without battery
4.Upgrader MPPT
5.Li-ION battery
6.Bulit in nnti dust kit
Specification
MODEL
SVM-10.2k
Phase
1-phase
Maximum PV Input Power
10200W
Rated Output Power
10200W/10200VA
Maximum Solar Charging Current
180A
GRID-TIE OPERATION
PV Input（DC）
Nominal DC Voltage/Maximun DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
90VDC/450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195-253VAC
Nominal Output Current
44.3A
Power Factor
>0.99
Feed-in Grid Frequency Range
49-51±1hz
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)
98%
TWO LOAD OUTPUT POWER
Full Load
10200W
Maximum Main Load
10200W
Maximum Second Load(battery mode)
3400W
Main Load Cut Off Voltage
44VDC
Main Load Return Voltage
48VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
50A
Nominal operating frequency
50/60Hz
Surge power
20400W
PV INPUT（DC）
Maximum DC Voltage
500VDC
MPPT Voltage Range
90VDC~450VDC
Number of MPPT Trackers/Maximum Iput Current
1/27A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
48VDC
Output Waveform
Pure sine wave
Efficiency(DC to AC)
94%
BATTERY & CHARGER
Nominal DC Voltage
48VDC
Maximum Solar Charging Current
180A
Maximum AC Charging Current
160A
GENERAL
PHYSICAL
Dimension,DxWXH(mm)
420*310*110
Cartoon Dimension,DXWXH(mm)
588*463*205
Net Weight(kgs)
14.5
Gross Weight(kgs)
16
INTERFACE
Communication Port
RS232/WIFI/RemoveLCD/GPRS
ENVIRONMENT
OperatingTemperature
-10~50℃
APP
