Quick Details
-
Brand Name:
-
Ambixin
-
Voltage:
-
380v/220v
-
Power (kW):
-
3
-
Weight (T):
-
0.65
-
Size:
-
Customized Size
-
Keword:
-
shredding machine
-
Marketing Type:
-
New Product 2021
Quick Details
-
Max.Production Capacity (kg/h):
-
2500
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
500 - 2500 kg/h
-
Brand Name:
-
Ambixin
-
Voltage:
-
380v/220v
-
Power (kW):
-
3
-
Weight (T):
-
0.65
-
Size:
-
Customized Size
-
Keword:
-
shredding machine
-
Marketing Type:
-
New Product 2021
Product Video
Product Description
|
Model
|
ABX300-2S
|
ABX400-2S
|
ABX500-2S
|
ABX300
|
ABX400
|
ABX500
|
|
Motor
|
3KW-4,2set
|
4KW-4,2set
|
7.5KW-4,2set
|
3KW-4,1set
|
4KW-4,1set
|
7.5KW-4,1set
|
|
Reducer
|
JKA77,2set
|
JKA87,2set
|
JKA97,2set
|
JKA77,1set
|
JKA87,1set
|
JKA97,1set
|
|
Control panle
|
PLC System protection
|
PLC System protection
|
PLC System protection
|
PLC System protection
|
PLC System protection
|
PLC System protection
|
|
Input Speed(rpm)
|
16
|
17
|
15
|
15
|
17
|
15
|
|
Input Torque(Nm)
|
3107
|
3952
|
8255
|
1696
|
2176
|
4574
|
|
Input shaft diameter(mm)
|
Φ60
|
Φ60
|
Φ70
|
Φ60
|
Φ60
|
Φ70
|
|
Tool size( mm)
|
Φ180*12
|
Φ180*15
|
Φ200*20
|
Φ180*12
|
Φ180*15
|
Φ200*20
|
|
Number of tools( pcs)
|
25
|
26
|
25
|
25
|
26
|
25
|
|
Feed port size( mm)
|
500*500*300
|
500*600*300
|
600*700*400
|
500*500*300
|
500*600*300
|
600*700*400
|
|
Dimension (mm)
|
1200*500*1300
|
1400*500*1450
|
1600*600*1550
|
850*500*1300
|
1120*600*1480
|
1200*600*1550
|

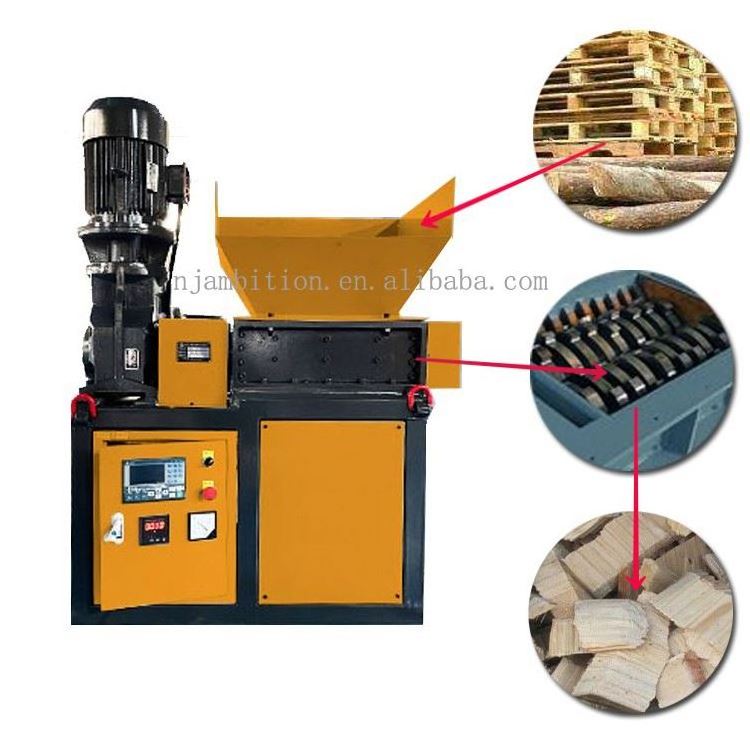

Shredding machine is used as a fine machine, generally used for processing raw materials or scraps, make its size more fine. A typical example is the shredding of plastic or rubber scraps, which are used as raw materials for melting and pelleting to remake plastic bottles, tires, or trash cans, etc. Shredding machine is used in plastic recycling industry, often used in the waste of large diameter PE plastic pipe, baling plastic film, a large pile of plastic sheet and machine head material crushing.
Product Display
Application Areas:
The shredder machine can easily pre-crush:
•plastic sheets;
•electronic waste;
•scrap (components, subassemblies; consumables);
•metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);
•aluminum cans;
•wood(wooden pallets or fruit boxes);
•plastic(plastic bottles or canisters);
•waste tire, rubber;
•waste household appliances;
•paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging
material);
•textiles (rags, garments, carpet);
•animal bones and organic waste.
The shredder machine can easily pre-crush:
•plastic sheets;
•electronic waste;
•scrap (components, subassemblies; consumables);
•metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);
•aluminum cans;
•wood(wooden pallets or fruit boxes);
•plastic(plastic bottles or canisters);
•waste tire, rubber;
•waste household appliances;
•paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging
material);
•textiles (rags, garments, carpet);
•animal bones and organic waste.
