FOB Reference Price: Get Latest Price
≥28 Tons
US $580
≥100 Tons
US $570
≥300 Tons
US $560
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Model Number:
Q235 Q345
Brand Name:
Yongtai
Product name:
Steel Grating
Usage:
Construction
Color:
Silver
Hole shape:
Square Hole
Surface treatment:
Hot Dipped Galvanzied

Quick Details

Material:
Steel Wire
Type:
Crimped Wire Mesh
Application:
Woven Wire Mesh
Place of Origin:
Shandong, China
Model Number:
Q235 Q345
Brand Name:
Yongtai
Product name:
Steel Grating
Usage:
Construction
Color:
Silver
Hole shape:
Square Hole
Surface treatment:
Hot Dipped Galvanzied
Product Description

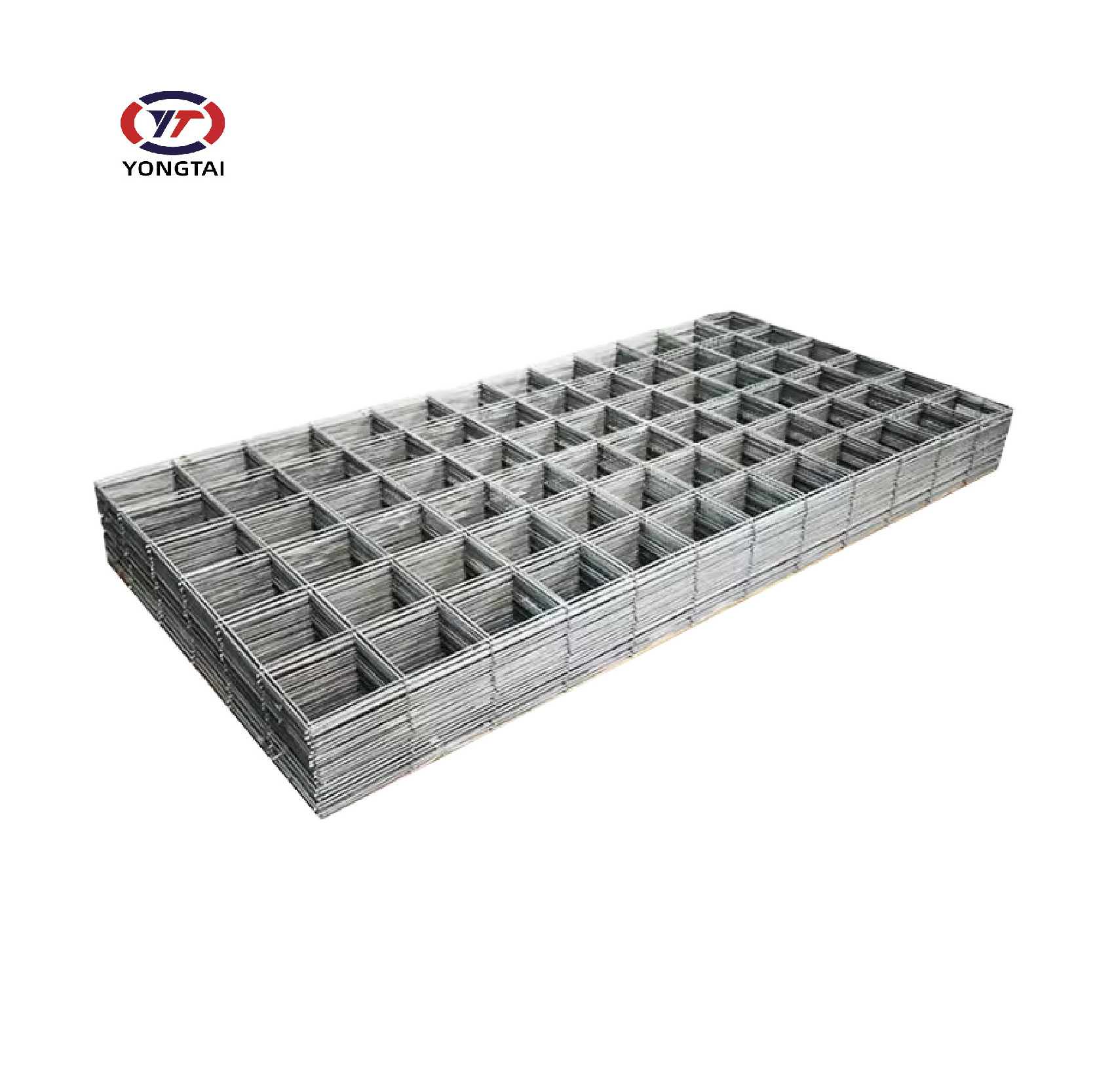

Welded construction mesh is a longitudinal reinforcement and transverse reinforcement respectively to a certain pitch and arranged at right angles to each other,all intersection point are welded together.It can significantly improve the quality of steel bar projects, significantly increase the construction speed, have strong crack resistance of reinforced concrete, and have good comprehensive economic benefits.
Specification
Any size and specifications can all be customized,
please contact us, our 24-hour online service.
Product Name
welded concrete reinforced mesh
Material
Carbon steel rebar.
Surface treatment
Hot dip galvanized after/before welded,
Electric galvanized after/before welded,
1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
Ref No.
Std Unit
Longitudinal Wires(mm)
Cross Wire(mm)
Pitch of Wire(mm)
Mass(Kg)
Mass(Kg/m2)
Q131
Sheet
5
5
150@150
22.476
2.091
Q181
Sheet
6
6
150@150
32.401
3.014
Q221
Sheet
6.5/5.0
6.5
150@150
33.707
3.316
Q295
Sheet
7.5/5.5
7.5
150@150
44.245
4.116
Q378
Sheet
8.5/6
8.5
150@150
66.659
5.157
2. Australia/New Zealand standard AS/NZS 4671:2001(SIZE:6000X2400mm)
Ref No.
Std Unit
Longitudinal
Wires(mm)
Edge wires
(mm)
Cross
Wires(mm)
Mass(Kg)
SL81(F81)
Sheet
7.6 @100
7.60 @100
7.60 @100
105
SL102(F102)
Sheet
9.5 @200
6.75 @100
9.50 @200
80
SL92(F92)
Sheet
8.6 @200
6 @100
8.60 @200
66
SL82(F82)
Sheet
7.6 @200
5.37 @100
7.60 @200
52
SL72(F72)
Sheet
6.75 @200
4.77 @100
6.75 @200
41
SL62(F62)
Sheet
6@200
4.77 @100
6 @200
33
SL52(F52)
Sheet
4.77 @200
4.77 @100
4.77 @200
21
3.BRITISH STANDARD BS4483
Ref No.
Std Unit
Longitudinal Wires(mm)
Cross Wire(mm)
Pitch of Wire(mm)
No. of sheet per ton
Mass(Kg/m2)
A393
Sheet
10
10
200@200
15
6.16
A252
Sheet
8
8
200@200
22
3.95
A193
Sheet
7
7
200@200
29
3.02
A142
Sheet
6
6
200@200
40
2.22
A98
Sheet
5
5
200@200
57
1.54
Product advantages
1.To advance the quality of engineering;
2. Improve the function of concrete anti-seismic and crack resistance;
3.Reduce the amount of steel usage;
4.High operating efficiency.
5. The company can customize various sizes and specifications of the product,according to the drawing design and production.
The products sold in our store have their own factories in Hebei, Tianjin, Liaocheng and other places in China.
We are always welcome and will take care of your airport pick-up, hotel and catering if needed.
Welcome to contact us or leave your contact information to get free samples
and discounted prices. We are always at your service.
