Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUABO
-
Model Number:
-
0.3mm-3mm
-
Material:
-
HDPE LDPE LLDPE PVC
-
Color:
-
Black White Green Blue
-
Product Name:
-
Pond Liner Hdpe Geomembrane
-
Keyword:
-
Geomembrane 2mm Geomembrane Liner Smooth Hdpe Geomembrane
-
Thickness:
-
0.3-3.0mm
-
Certification:
-
ISO9001/ISO14001/BV/SONCAP
-
Standard:
-
GB/T 17643-2011
-
Function:
-
Waterproof Protection
-
Usage:
-
Fish Pond Liner Dam Liner
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUABO
-
Model Number:
-
0.3mm-3mm
-
Material:
-
HDPE LDPE LLDPE PVC
-
Color:
-
Black White Green Blue
-
Product Name:
-
Pond Liner Hdpe Geomembrane
-
Keyword:
-
Geomembrane 2mm Geomembrane Liner Smooth Hdpe Geomembrane
-
Thickness:
-
0.3-3.0mm
-
Certification:
-
ISO9001/ISO14001/BV/SONCAP
-
Standard:
-
GB/T 17643-2011
-
Function:
-
Waterproof Protection
-
Usage:
-
Fish Pond Liner Dam Liner
Products Description

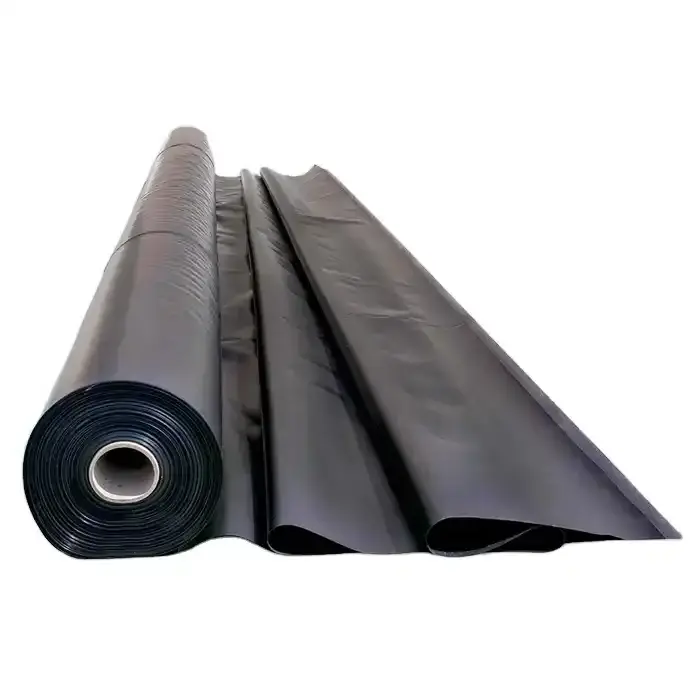

Geomembrane
Geomembrane is made by blowing and molding high polymer materials such as polyethylene. According to the production raw materials, it can be divided into low-density polyethylene (LDPE) geomembrane, high-density polyethylene (HDPE) geomembrane, and EVA geomembrane. This type of product has high strength, aging resistance, good welding performance, and convenient construction.
|
Geomembrane ordinary high-density polyethylene geomembrane
|
|
|
|
|
|
|
|
|
|
|||||||||
|
project
|
metric
|
|
|
|
|
|
|
|
|
|||||||||
|
thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|||||||||
|
density (g/cm³)
|
≥0.940
|
|
|
|
|
|
|
|
|
|||||||||
|
Tensile fracture strength (longitudinal and transverse)(N/mm)
|
≥4
|
≥7
|
≥10
|
≥13
|
≥16
|
≥20
|
≥26
|
≥33
|
≥40
|
|||||||||
|
Tensile fracture strength (longitudinal and transverse) (N/mm)
|
≥6
|
≥10
|
≥15
|
≥20
|
≥25
|
≥30
|
≥40
|
≥50
|
≥60
|
|||||||||
|
Yield elongation rate (vertical, horizontal) (%)
|
≥11
|
|
|
|
|
|
|
|
|
|||||||||
|
Elongation (vertical and transverse)(%)
|
≥600
|
|
|
|
|
|
|
|
|
|||||||||
|
Right-angle tear load (longitudinal and transverse)（N)
|
≥34
|
≥56
|
≥84
|
≥115
|
≥140
|
≥170
|
≥225
|
≥280
|
≥340
|
|||||||||
|
Anti-puncture intensity (N)
|
≥72
|
≥120
|
≥180
|
≥240
|
≥300
|
≥360
|
≥480
|
≥600
|
≥720
|
|||||||||
|
Carbon black content (%)
|
2.0-3.0
|
|
|
|
|
|
|
|
|
|||||||||
|
Carbon black dispersion
|
No more than 1 of 10 data, and levels 4 and 5 are not allowed
|
|
|
|
|
|
|
|
|
|||||||||
|
Induction time of atmospheric pressure oxidation (OIT) (min)
|
≥60
|
|
|
|
|
|
|
|
|
|||||||||
|
Low-temperature impact brittlement performance
|
pass through
|
|
|
|
|
|
|
|
|
|||||||||
|
Vapor permeability coefficient (g ·cm/(cm2 · s ·Pa))
|
≤1.0×10-13
|
|
|
|
|
|
|
|
|
|||||||||
|
dimensional stability (%)
|
±2.0
|
|
|
|
|
|
|
|
|
|||||||||
Stable performance
Has excellent environmental stress resistance, cracking performance, chemical corrosion resistance, and long service life
Waterproof and anti-seepage measures
The plastic film in the geomembrane has excellent waterproof, impermeable, and impermeable properties
Widely used
Mainly used for anti-seepage engineering in channels, sewage treatment tanks, dock engineering, river embankments, reservoirs, lake dams, subways, landfill sites, etc.
